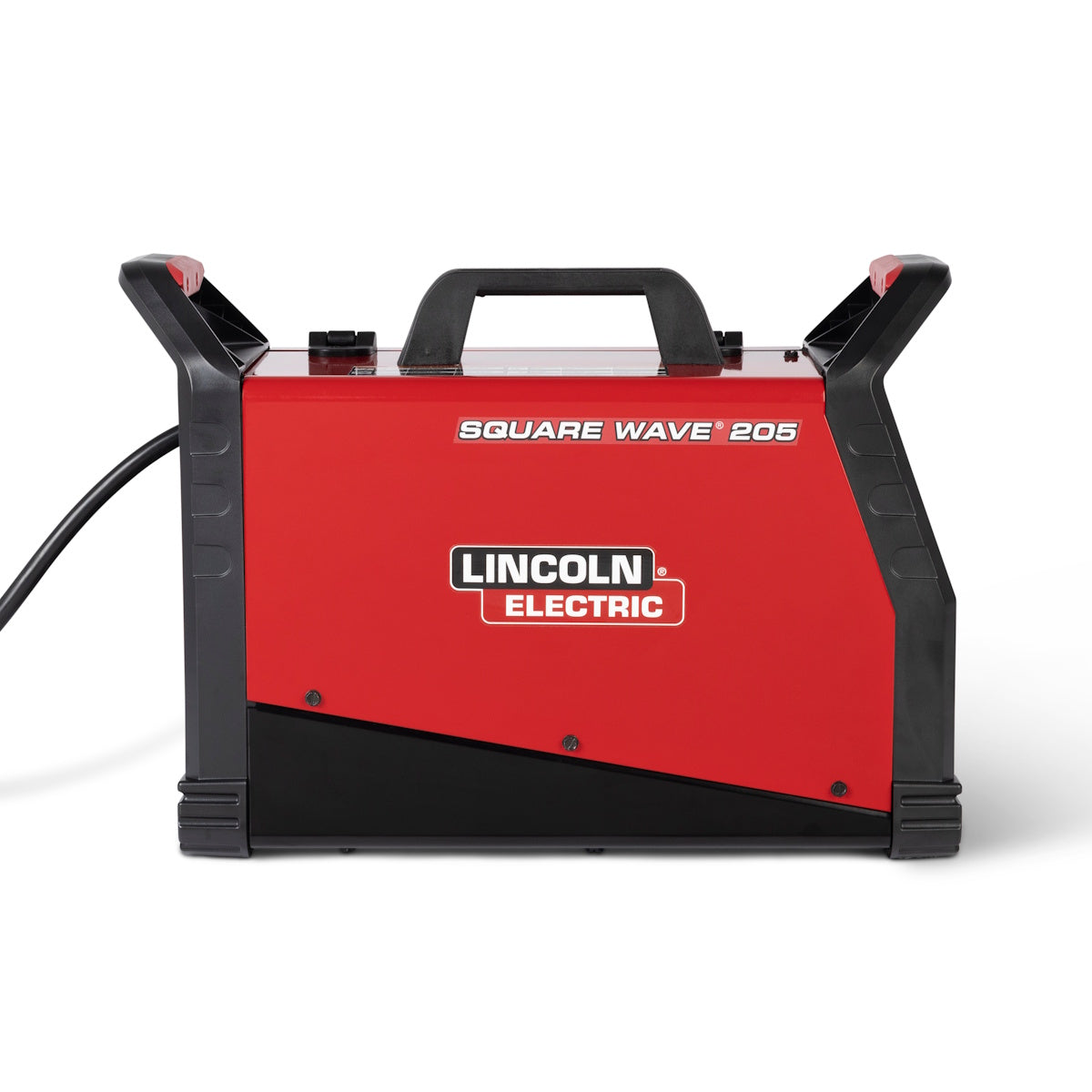

Lincoln Square Wave 205 AC/DC TIG/Stick Welder (K5613-1)

Lincoln TIG WAVE 205 is a Compact Machine That Delivers

The Lincoln Electric Square Wave TIG 205 is revolutionizing the TIG welding industry. Its user-friendly interface and advanced features make it the perfect compact machine for novice and experienced welders. This versatile welder delivers outstanding arc performance on various materials, including aluminum, steel, stainless steel, and chrome-moly. With its intuitive controls, you can quickly adjust settings to optimize your welding performance. Whether a hobbyist or a professional, this Lincoln TIG welder is the ideal tool to elevate your welding projects.

Advanced features, such as its high-frequency starting and adjustable pulse settings, make achieving precise welds on various materials easy. Whether you're working with thin aluminum or thicker steel, the Lincoln Square Wave 205 offers the flexibility and control you need to get the job done right.

Designed for various uses, the Lincoln Square Wave 205 excels at welding aluminum, steel, and stainless steel. Its compact, lightweight design and dual voltage capabilities make it perfect for both shop and field applications. Whether you're tackling thin sheet metal or thicker materials, the Lincoln Square Wave 205 delivers consistent, high-quality welds.

Features on the Lincoln TIG 205:
• AC/DC TIG & Stick welding capabilities
• 205 A output
• Dedicated 6010 and 7018 modes
• Precise Pulse/Post Flow control
• Extremely portable - weighing only 36 pounds
• Multilingual settings - English, Spanish, and French
• AC frequency control

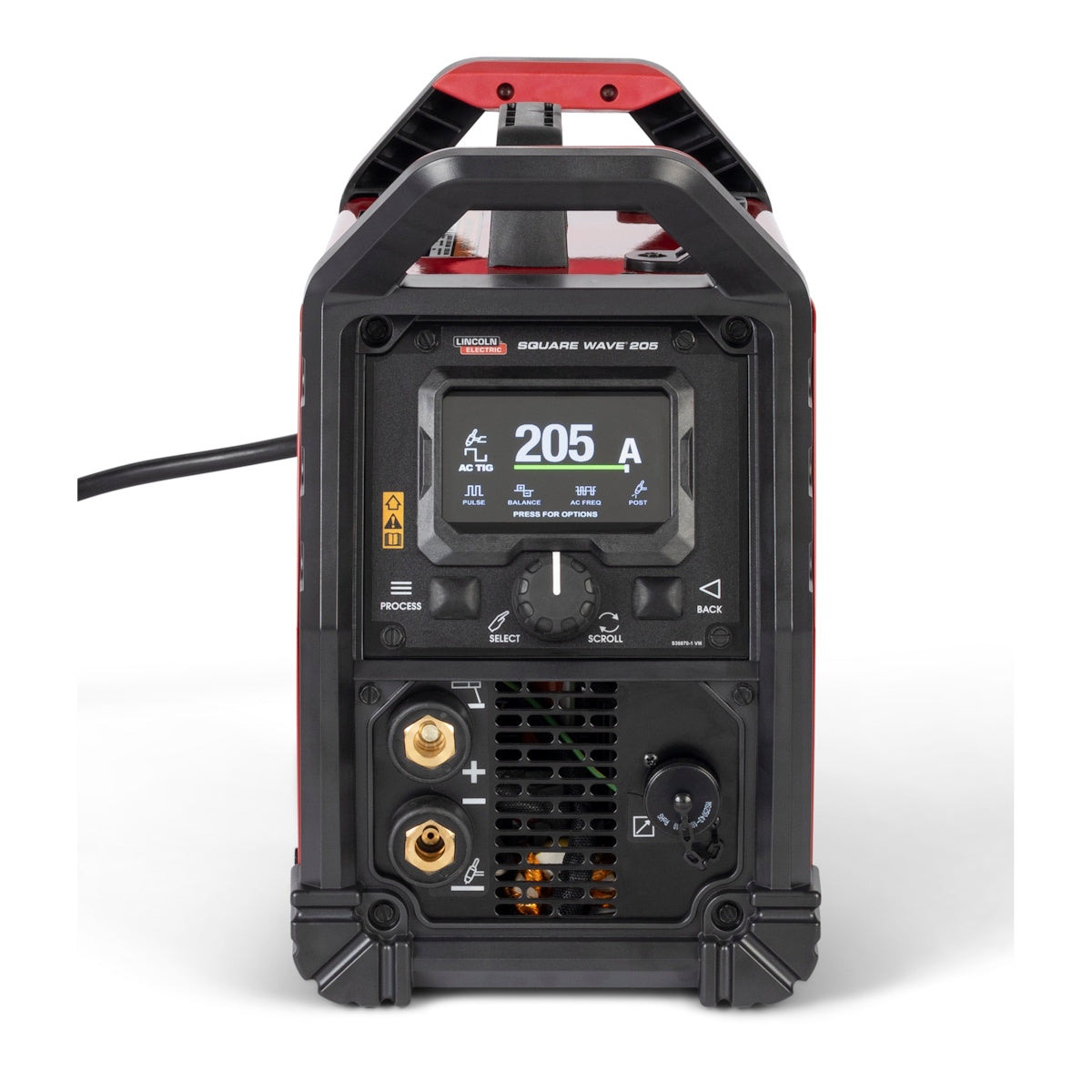

• Enhanced digital interface
• Common power supply

Lincoln 205 TIG Quick Specs:
• Input Power: 120 or 230 V, Single Phase, 60 Hz
• Output Range: 120 V = TIG (8-125 A), Stick (15-90 A)
• Output Range: 230 V = TIG (8-205 A), Stick (15-170 A)
• Rated Output: 230 V = TIG (200 A @ 25%), (130 A @ 60%)
• Weight: 36 pounds
• Dimensions: 14.75"h X 9.27"w X 21"d

Includes:

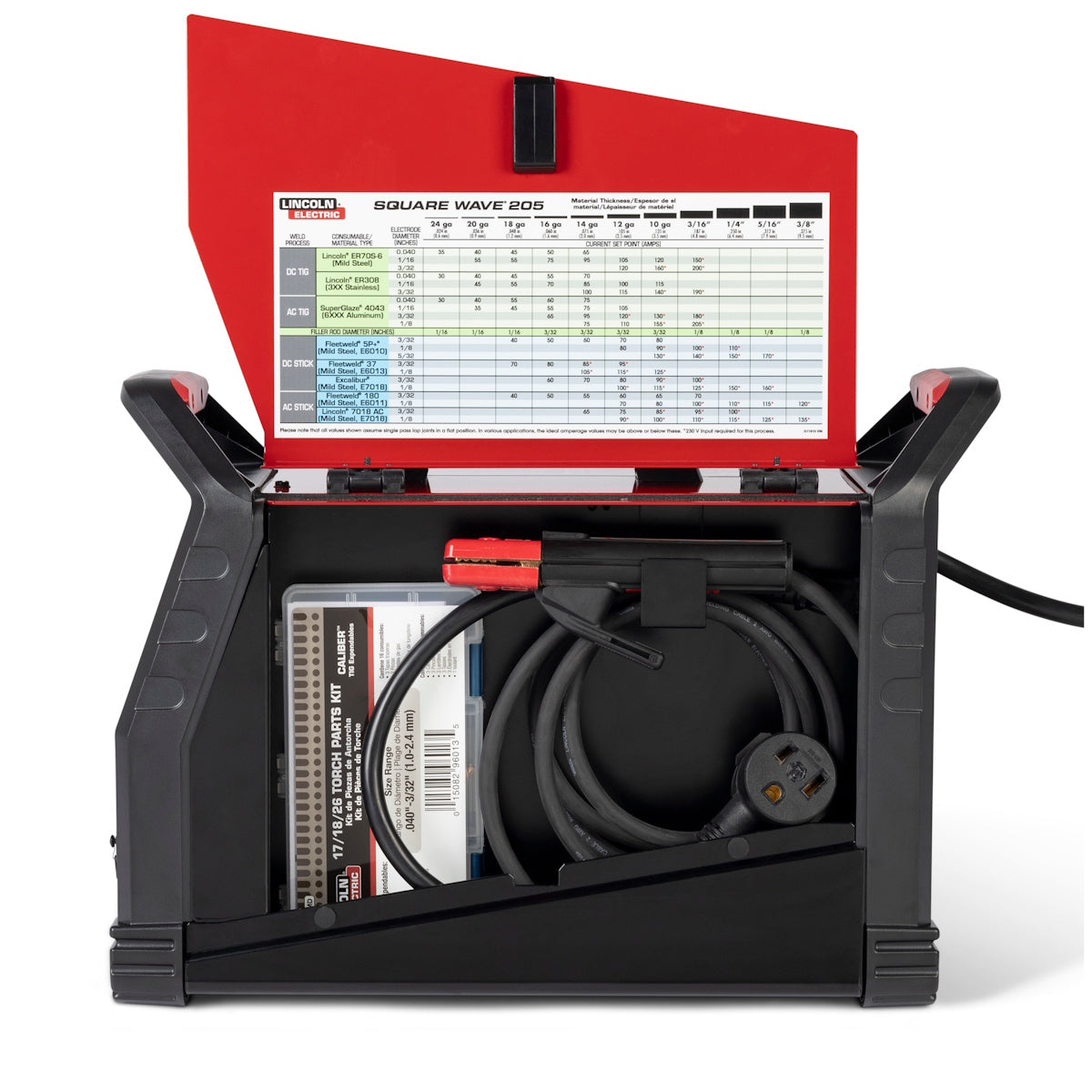

• Square Wave 205 TIG Welder
• PTA-17 Series 150 A Air-cooled TIG torch w/ flexible head & ultra-flex cable assembly
• Foot Amptrol
• Regulator/Flowmeter with gas hose
• Stick Electrode Holder
• Ground Clamp
• 120/230 V input Cords

MPN: LINK5613-1

UPC: 015082747750

Download Product Spec Sheet
