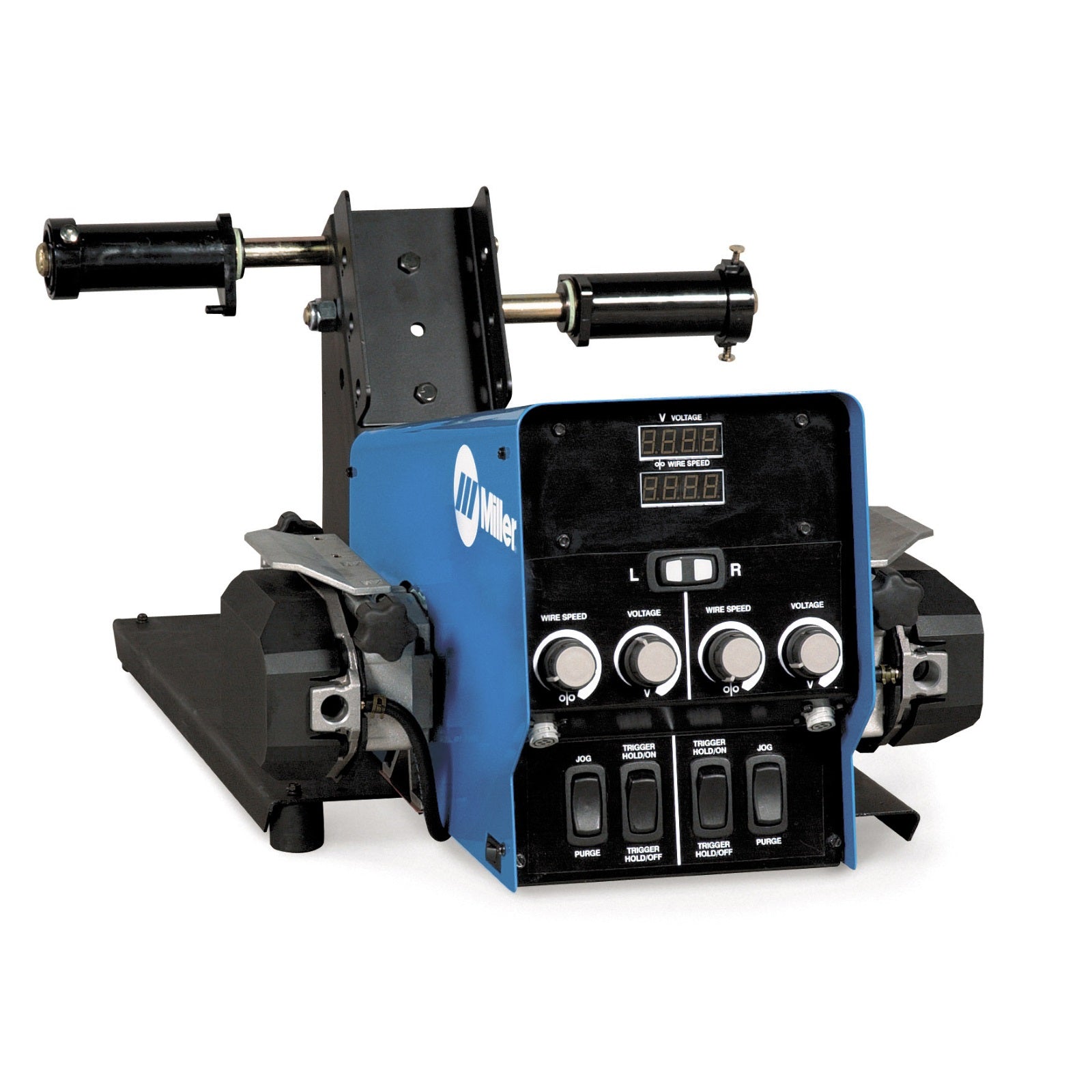

Miller 70 Series Full Featured Dual Wire Feeder Package D-74DX (951206)

This package is no longer available. The suggested replacement is Miller 951292 which can be found here.

Miller's 70 series wire feeders are standard, simple feeders for most heavy-industrial applications, with the 74D providing increased accuracy and control of the most common weld parameters. The DX model feeders offer additional features for weld control & programs.

Processes:
• MIG & Flux-Cored
• Pulsed MIG (with MPa Plus feeder and optional MPa power source)

70 Series Features:
• Wire feed speed range is 50 –780 IPM -- This offers a wider operating range than the competition
• Trigger hold control allows operator to make long extended welds without having to hold gun trigger
• On-board burnback and motor ramp control offers unmatched starting and stopping performance on a variety of power sources. This helps to ensure positive arc starting performance
• 16-gauge sheet metal housing is robust in rough service applications and less prone to damage
• Toolless rotatable drive assembly allows operator to rotate the drive housing, allowing a straight path for wire flow
• Trigger dual schedule for easily changing weld parameters while welding (DX & MPa models only)

DX Model Features
• Wire speed control
• Factory-set run-in control
• 24 VDC high torque, permanent-magnet motor
• Quick-change drive rolls
• Quick-release, drive-roll pressure adjustment arm
• Solid-state speed control & brake circuit
• Digital Meters - helps ensure accuracy when presetting & reading actual parameters
• Remote Voltage Control - allow you to set both voltage & wire feed speed at the feeder
• Adjustable run-in control
• Dual schedule control
• Trigger program select - ability to access any of the four active programs
• Sequence control
• Locks & limits - for restricting operator adjustments
• Four weld program memories

Quick Specs:
• Input Power: 24 VAC, 10 A, 50/60 Hz
• Wire Diameter Capacity: .023-5/64"
• Wire Feed Speed: 50-780 IPM
• Weight: Dual Feeder: 87lbs
• Dimensions: Dual Feeder - 14" H x 21" W x 35" D
• Max Spool Size Capacity: 60 lb coil * with optional wire reel assembly (108008)

Includes:
• D-74DX Dual Feeder
• (2) 15-foot Bernard Q400 MIG Guns
• 10-foot 14-pin interconnecting cord
• .035/.045 Drive Rolls
• (3) .035 & (2) .045 Centerfire Contact Tips

MPN: MIL951206

UPC: 715959575751
