What size liner do I need for .030 wire?

.030 sits at the top of LM1A-10 (.023-.030) and the bottom of LMD2A-10 (.030-.035), so either fits. Pick by your other wire: LM1A-10 if you also run .023-.025, LMD2A-10 if you also run .035.

Are MDX 100 and MDX 250 liners interchangeable?

The wire-size liners fit both guns, but the length must match. The MDX 100 uses 10 ft liners (LMxA-10); the MDX 250 uses 12 or 15 ft, so a 10 ft liner will not fit a 15 ft gun.

How often should a MIG liner be replaced?

No fixed interval, replace it when feed problems appear (erratic feed, birdnesting, burnback). For regular shop use that is often every 6 to 12 months, sooner with heavy or dirty wire. Always change it if you move to a wire size outside its range.

Can I trim an AccuLock liner?

Yes. AccuLock liners trim flush with the power pin cap during install, and the front-load, lock-both-ends design needs no measuring, which prevents the trim errors that cause feeding problems.

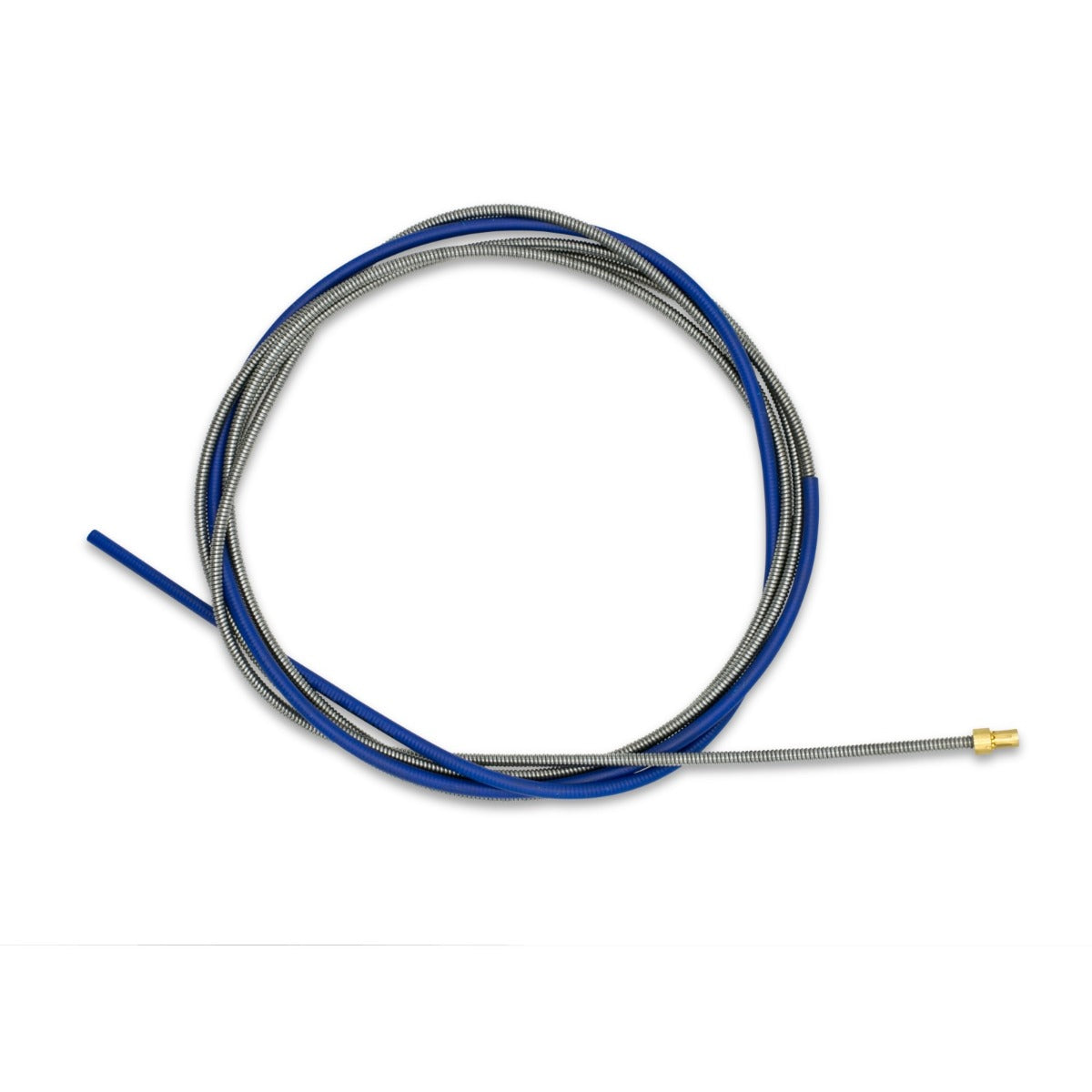

Miller AccuLock MDX 100 MIG Gun Liner (10 Foot) (LMXA-10)

Miller AccuLock MDX 100 MIG Gun Liner (10 Foot) (LMXA-10)

Name: Miller AccuLock MDX 100 MIG Gun Liner (10 Foot) (LMXA-10)
Brand: Miller
SKU: IMIL20190013
Price: 24.99 USD
Availability: InStock

$24.99 $29.85

Save $4.86

Select Size (Consumables):

Variant

Quantity:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Reviews

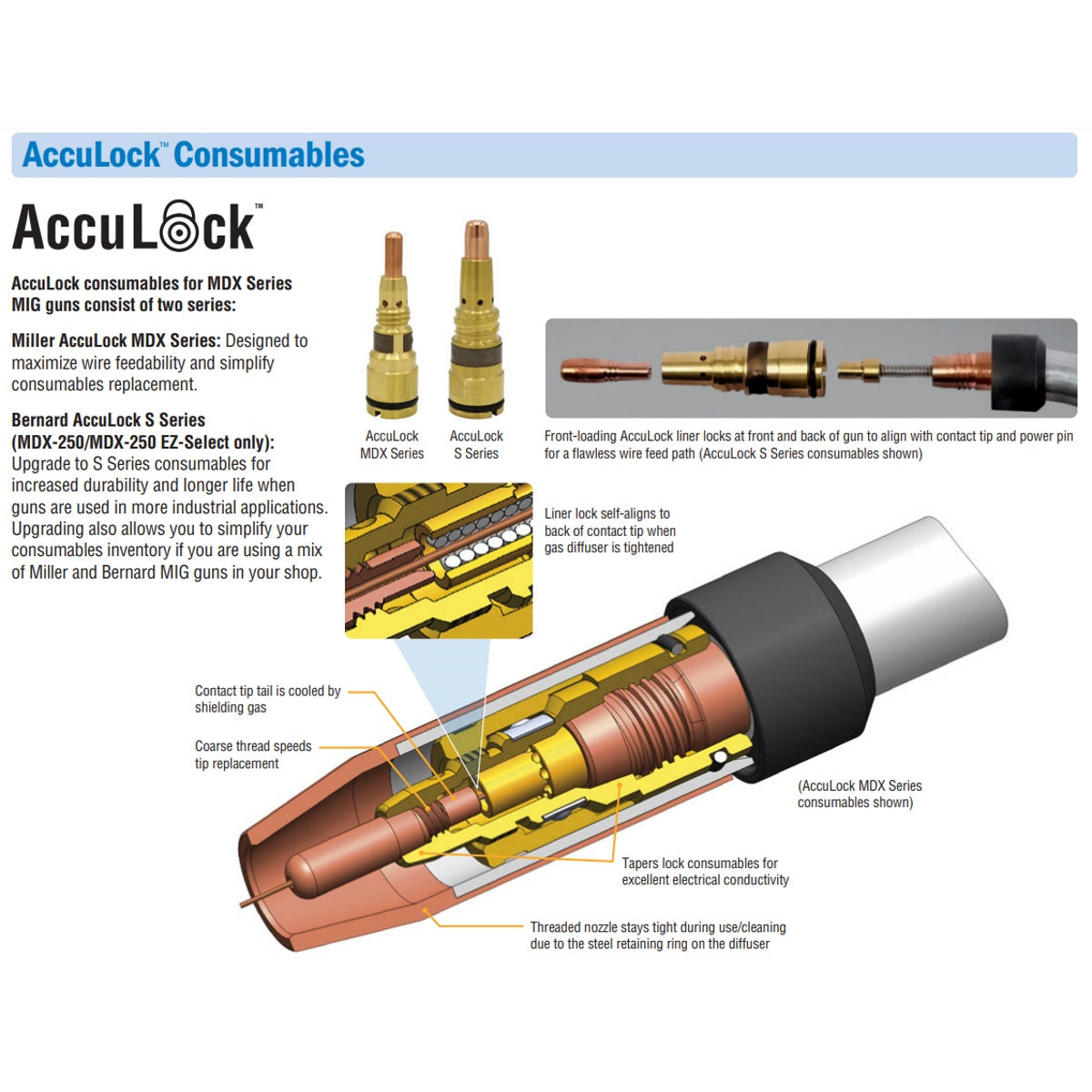

Miller AccuLock MDX series consumables are designed to maximize wire feedability and simplify consumables replacement. AccuLock liners are front-loading and lock at front and back of gun to align with contact tip and power pin for a flawless wire feed path.

AccuLock MDX Features
Superior Feeding - The front-loading liner is centered and locked at both ends of the gun (without the use of set screws) to ensure smooth wire delivery to the contact tip. Plus, error-proof liner trimming ensures accurate replacement every time for reduced burnbacks, birdnests and erratic arc/wire chatter.

Long-Life Consumables - Tapered mating surfaces between the AccuLock contact tip and gas diffuser lock tips in place for maximized electrical conductivity and longer tip life.

Threaded Nozzle - Stays tight during use and cleaning due to the steel retaining ring on the diffuser.

Which MDX 100 Liner Do I Need? (Wire Size Chart)

The MDX 100 liner comes in three wire-size variants. Match it to the wire you run:

Liner Part #	Wire Diameter	Length
LM1A-10	.023" – .030"	10 ft
LMD2A-10	.030" – .035"	10 ft
LM3A-10	.035" – .045"	10 ft

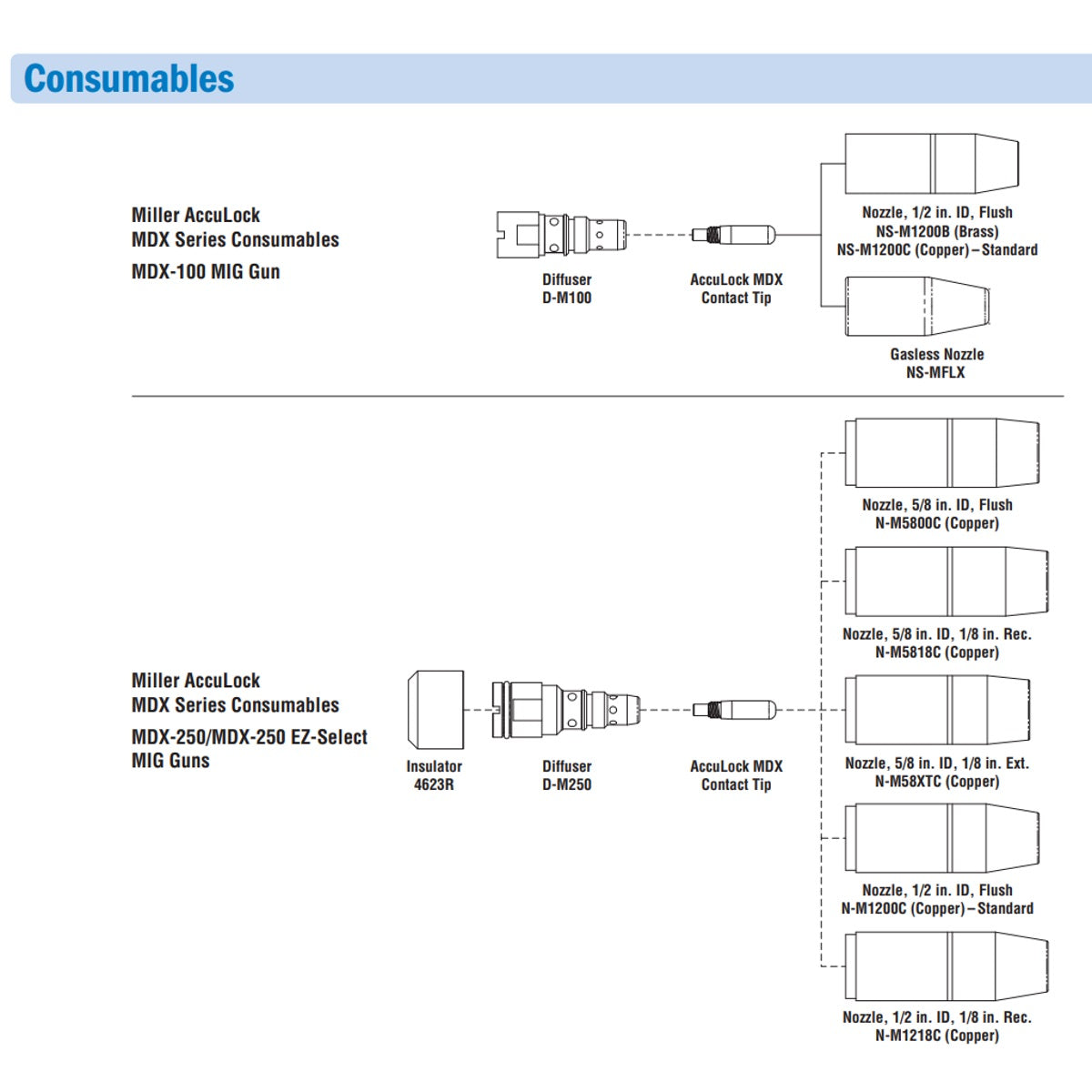

Replacing tips and diffusers too? The MDX 100 consumable kits bundle everything by wire size. See all MIG consumables.

Compatible Guns and Machines

These 10 ft liners fit the Miller MDX 100 MIG gun, available in 10 ft (1770028) and 15 ft (1770029) versions. The MDX 100 gun ships on, and is compatible with, these Miller machines:

Millermatic 141, 142, and 211
Multimatic 215 and 220

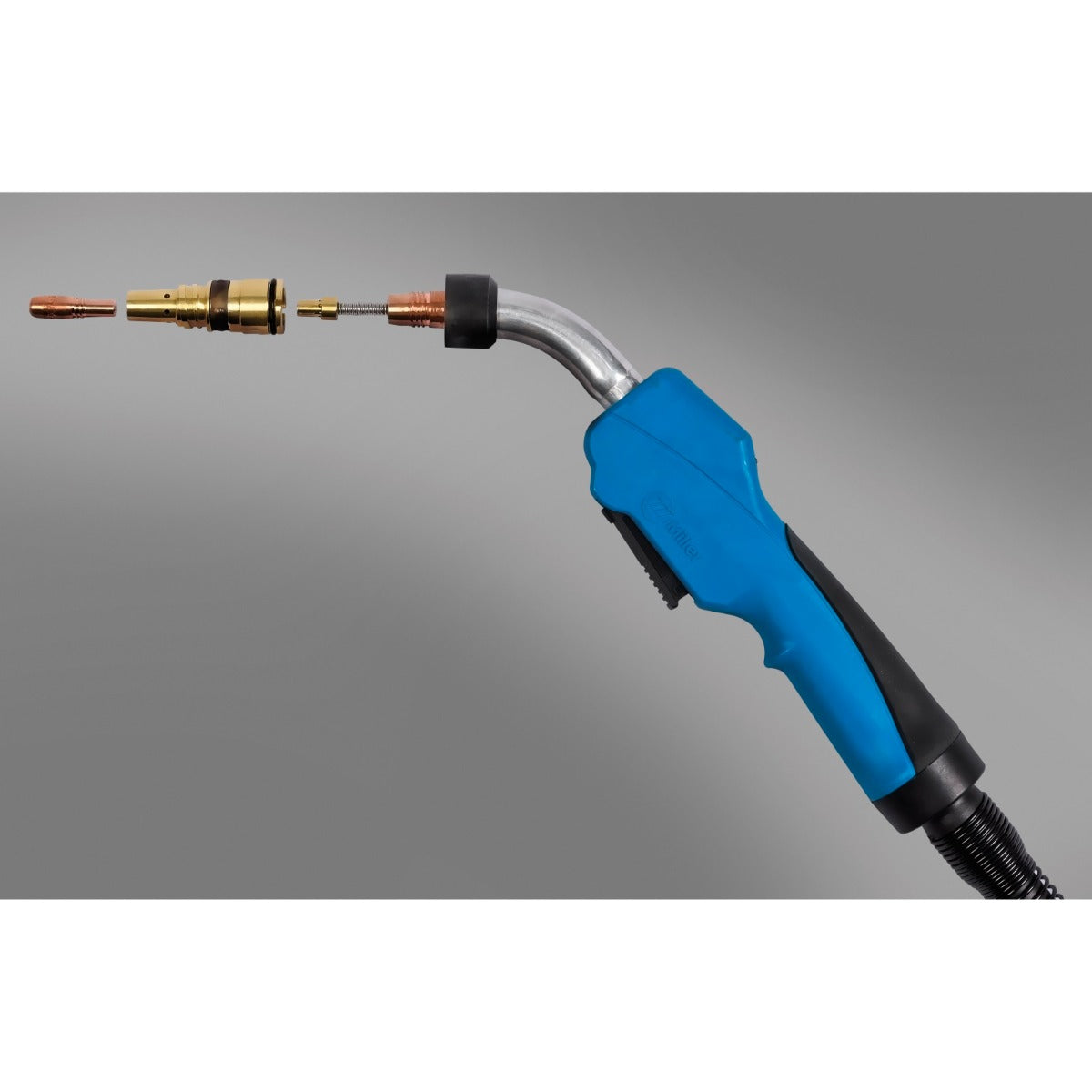

The same wire-size liners also fit the larger MDX 250 gun, but the length differs, so match the liner length to your gun. Browse all MIG guns.

How to Replace an AccuLock MDX Liner

AccuLock liners are front-loading and error-proof, no measuring required. To swap one out:

Remove the nozzle, contact tip, and gas diffuser from the front of the gun.
Feed the new liner in from the front until it seats and locks at the front lock.
At the back, lock the liner and trim it flush with the power pin cap.
Reinstall the diffuser, contact tip, and nozzle, and you are ready to weld.

Signs Your MIG Liner Needs Replacing

A worn or wrong-size liner shows up at the arc before anywhere else. Replace it when you see:

Erratic wire feed or chatter, the wire surges and stutters instead of feeding smoothly
Birdnesting, wire tangling and jamming up at the drive rolls
Burnback, the wire fusing back to the contact tip
