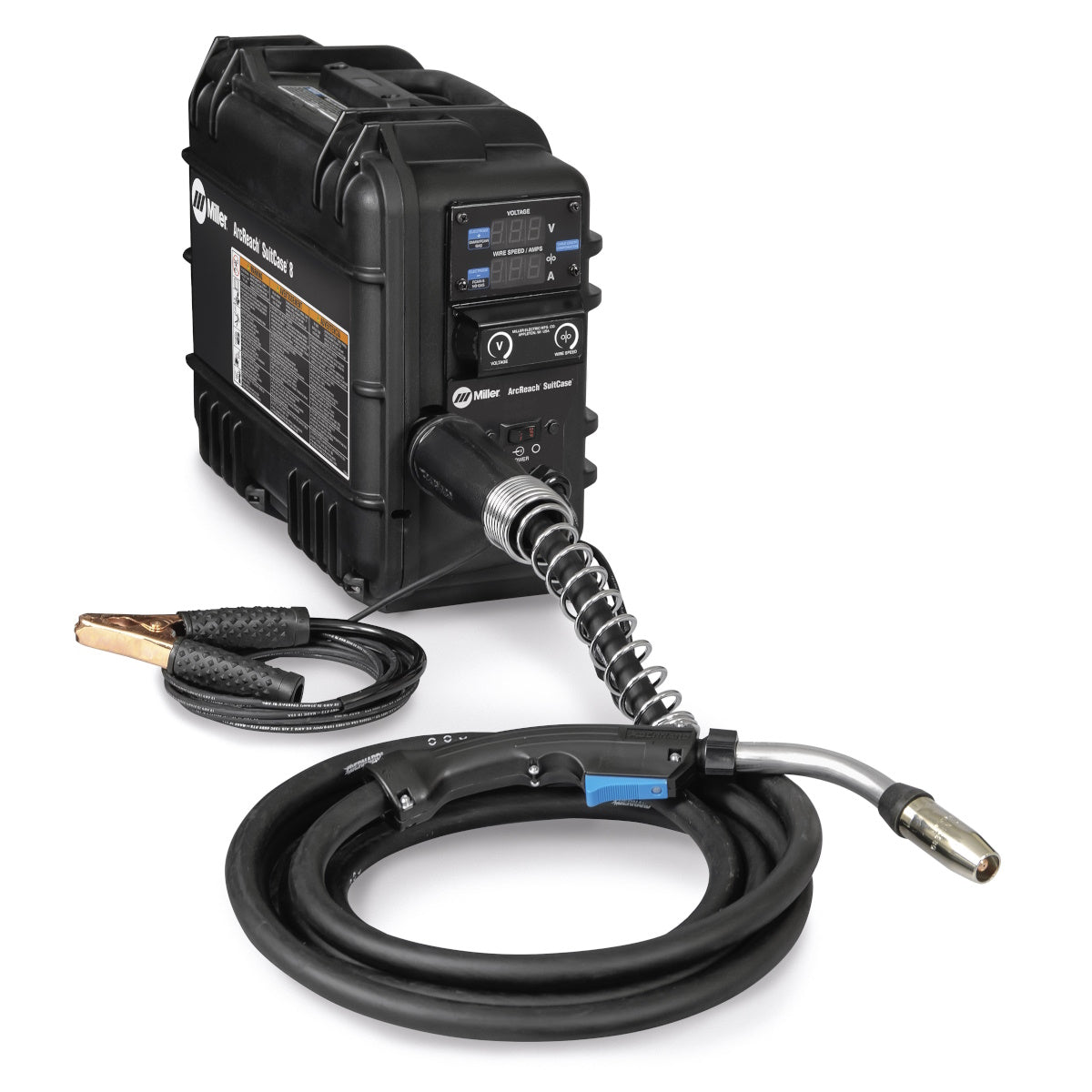

Miller ArcReach Suitcase 8 w/S-Gun (951727)
Download Product Spec Sheet
The Miller ArcReach Suitcase 8 feeder allows the operator to adjust the output voltage at the feeder, saving a trip back to the power supply - no extra control cable to purchase. ArcReach equipped power sources and wire feeders work with non-ArcReach equipment, however the complete benefits are only realized with the ArcReach system.
Suitcase Features
• Electronic wire feed speed with control tachometer
• Digital meters with sunvision technology

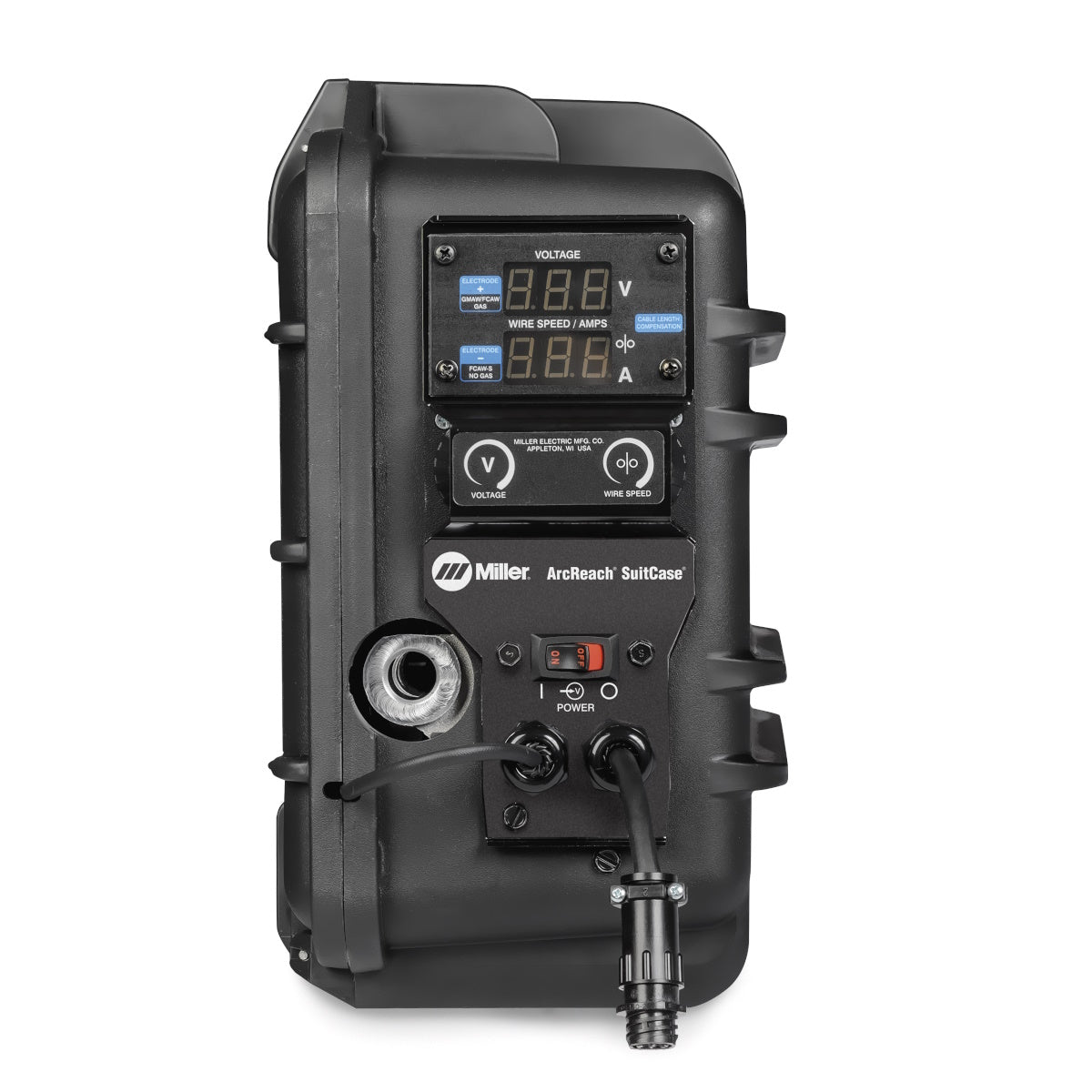

• Front panel has trigger hold, wire jog, and gas purge

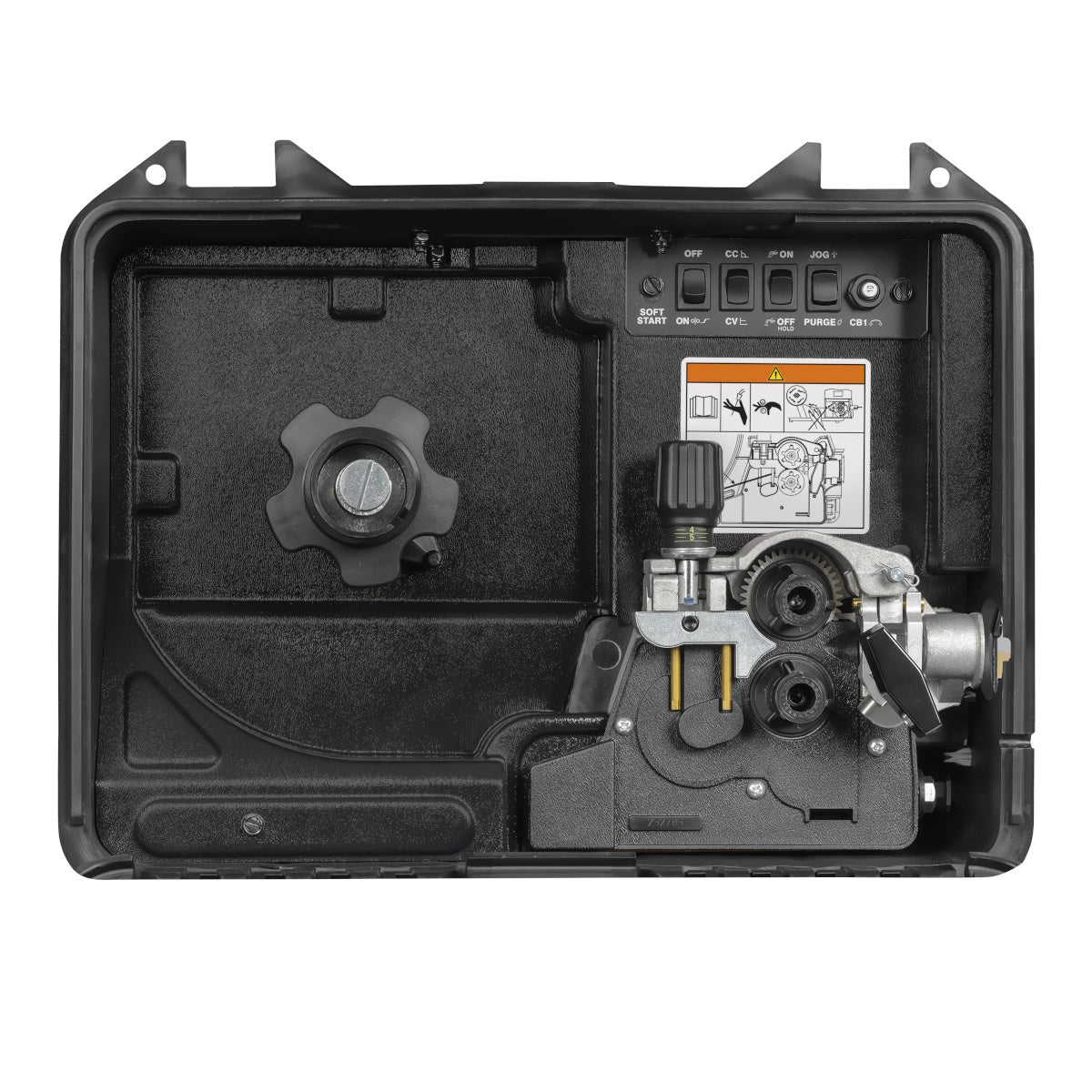

• Ability to change wire with feeder in upright position
• Dual schedule capable (dual schedule switch sold separately)
• Gun locking tab prevents gun from being pulled out prematurely
• Recessed gas inlet on rear of case
S-Gun Features
• 45° Locking, Rotatable neck
• Length: 15 ft
• Amperage Capacity: 250A
• High-Impact Glass-Reinforced Ergonomic Handle
• Quik Tip Series Consumables (e.g. T1045)
Quick Specs
• Input Power: 14-48 VDC operating range
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 330A
• Wire Diameter Capacity: .023 - .052 Solid Wire | .030 - 5/64 Flux Cored
• Max Wire Diameter: 8" or 14lb Spool
• Dims: 15.5" H x 9" W x 21" D
• Weight: 28lbs
Includes
• ArcReach 8 feeder (8-Inch Spool Capacity)
• 15' Bernard 250A S-Gun
• Contact tips: (1) .045 | (1) .052
• .045-1/16 VK drive roll kit (no guides)
Suitcase Features
• Electronic wire feed speed with control tachometer
• Digital meters with sunvision technology
• Front panel has trigger hold, wire jog, and gas purge
• Ability to change wire with feeder in upright position
• Dual schedule capable (dual schedule switch sold separately)
• Gun locking tab prevents gun from being pulled out prematurely
• Recessed gas inlet on rear of case
S-Gun Features
• 45° Locking, Rotatable neck
• Length: 15 ft
• Amperage Capacity: 250A
• High-Impact Glass-Reinforced Ergonomic Handle
• Quik Tip Series Consumables (e.g. T1045)
Quick Specs
• Input Power: 14-48 VDC operating range
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 330A
• Wire Diameter Capacity: .023 - .052 Solid Wire | .030 - 5/64 Flux Cored
• Max Wire Diameter: 8" or 14lb Spool
• Dims: 15.5" H x 9" W x 21" D
• Weight: 28lbs
Includes
• ArcReach 8 feeder (8-Inch Spool Capacity)
• 15' Bernard 250A S-Gun
• Contact tips: (1) .045 | (1) .052
• .045-1/16 VK drive roll kit (no guides)
| MPN: | MIL951727001 |
|---|---|
| UPC: | 715959657730 |
| Processes | Flux Cored (FCAW)MIG (GMAW) |
| Designed For | Shipbuilding Construction Heavy manufacturing Rental |
| Amperage | 330 A at 60% duty cycle |
| Input Voltage | Operates on open-circuit voltage and arc voltage: 14–48 VDC/ 110 max. OCV |
| Wire Feed Speed | 50–780 ipm (1.3–19.8 m/min.) dependent on arc voltage |
| Portability | Handle(s) |
| Weight | 28 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
