Miller Diversion 180 TIG Welder Package (907460)
Download Product Spec Sheet
This item is no longer available from Miller. The Miller Diversion 180 TIG Welder Package (907460) has now been replaced by the the new Diversion 180 TIG Welder Package. If you'd prefer to view all our Miller Welding Equipment, click here.
The Miller Diversion 180 TIG Welder Package is perfect for the personal user. This AC/DC TIG machine sports both 115V and 230 V input power.
Easy-to-Understand Operator Interface
It's as easy as "1, 2, 3" to set your machine and start welding! 1. Power-up. 2. Select material type. 3. Set material thickness range. Miller has also added a digital display so you know exactly what your settings are.
Portable
Whether it's in the shop, garage or at the race track, at 50 lbs it can be taken anywhere. You can't do that with those heavy transformer machines!
Reduce Noise, Maintenance and Operating Costs.
Our Fan-On-Demand cooling system only operates when needed. This cuts down on fan noise and reduces power consumption and contaminants drawn into the machine.
Use It On 115 AND 230 Volt Input Power
Miller's Multi Voltage Plug (MVP) allows you to connect to common 115 or 230 V power receptacles without the use of any tools. Simply chose the plug that fits the receptacle and connect it to the power cord.
Utilizes Latest Inverter Technology
By utilizing an inverter-based AC/DC power source, a more efficient (less energy is used) and consistent welding arc are provided compared to older transformer based TIG machines.
Dependable Arc Starts
Provides HF, non-contact arc starting to eliminate tungsten and material contamination time after time.
Eliminate Waste of Expensive Shielding Gas
Our Auto-Postflow feature optimizes postflow time based on welding amperage. This allows for proper shielding of both the weld end zone and electrode every time without waste of gas or need for adjustment.
Two Options to Control the Amperage
In every package we provide a Diversion Series foot control AND the Weldcraft LS17 TIG torch with its amperage adjustment controls built right into the handle. You have the option of using the foot control while welding at a bench and the ability to switch over to the hand control when doing those out-of-position weld jobs where it's just not comfortable to operate a foot control.

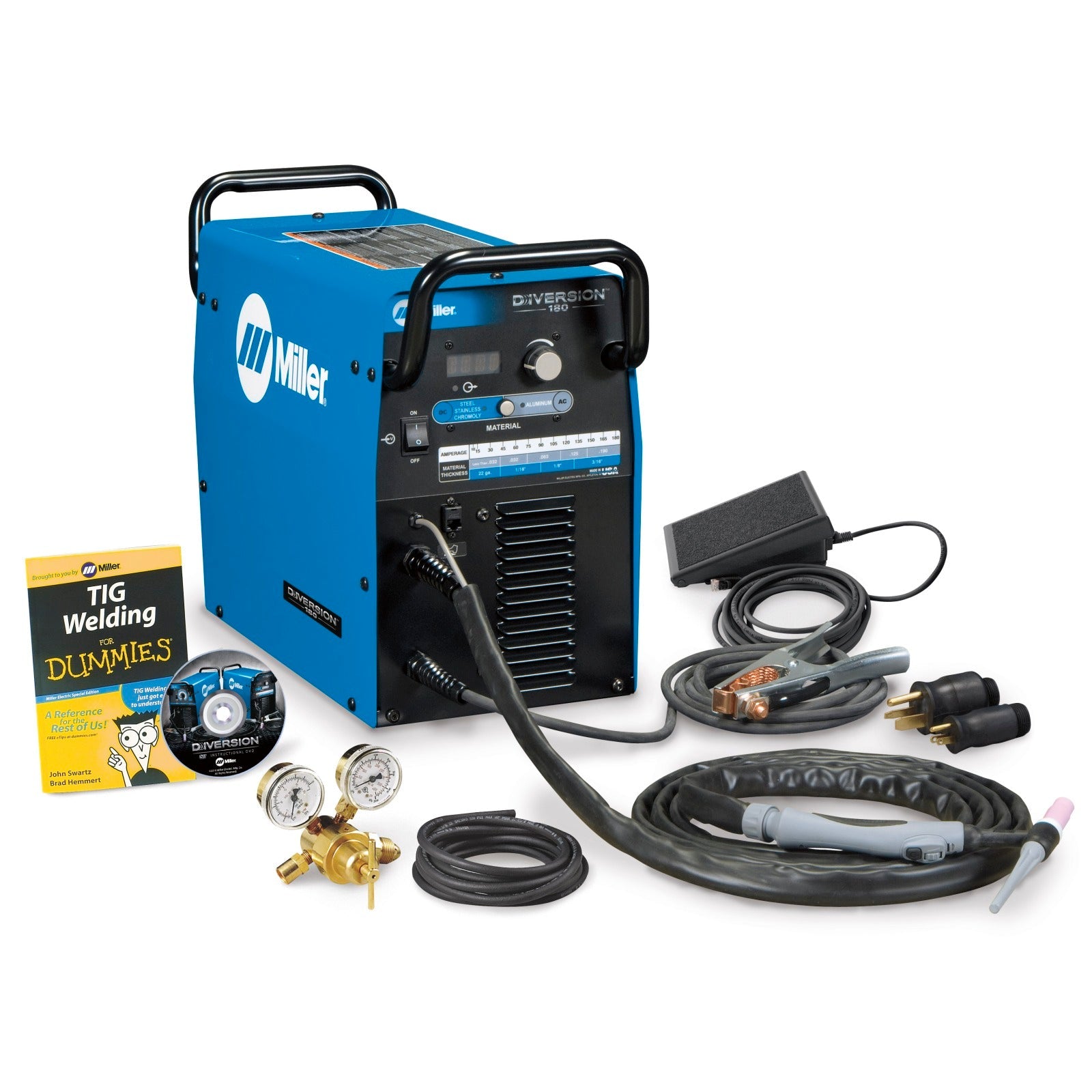

Comes complete with:
•Diversion 180 power source
• 8 ft (2.4 m) primary cord with (2) MVP plugs (219261 & 219258)
• RFCS-RJ45 remote foot control (300432)
• 12 ft (3.7 m) work lead with clamp
• Smith Argon regulator/flow guage with hose
• TIG Welding for Dummies book with content written by Miller
• Set-up and operation DVD
• Welding project blueprint for a machine cart/cylinder rack
12.5 ft (3.8 m) Weldcraft LS17 TIG torch with:
• Backcap
• Ceramic gas cup
• 3/32 in (2.4 mm) collet and collet body
• 2% ceriated tungsten
The Miller Diversion 180 TIG Welder Package is perfect for the personal user. This AC/DC TIG machine sports both 115V and 230 V input power.
Easy-to-Understand Operator Interface
It's as easy as "1, 2, 3" to set your machine and start welding! 1. Power-up. 2. Select material type. 3. Set material thickness range. Miller has also added a digital display so you know exactly what your settings are.
Portable
Whether it's in the shop, garage or at the race track, at 50 lbs it can be taken anywhere. You can't do that with those heavy transformer machines!
Reduce Noise, Maintenance and Operating Costs.
Our Fan-On-Demand cooling system only operates when needed. This cuts down on fan noise and reduces power consumption and contaminants drawn into the machine.
Use It On 115 AND 230 Volt Input Power
Miller's Multi Voltage Plug (MVP) allows you to connect to common 115 or 230 V power receptacles without the use of any tools. Simply chose the plug that fits the receptacle and connect it to the power cord.
Utilizes Latest Inverter Technology
By utilizing an inverter-based AC/DC power source, a more efficient (less energy is used) and consistent welding arc are provided compared to older transformer based TIG machines.
Dependable Arc Starts
Provides HF, non-contact arc starting to eliminate tungsten and material contamination time after time.
Eliminate Waste of Expensive Shielding Gas
Our Auto-Postflow feature optimizes postflow time based on welding amperage. This allows for proper shielding of both the weld end zone and electrode every time without waste of gas or need for adjustment.
Two Options to Control the Amperage
In every package we provide a Diversion Series foot control AND the Weldcraft LS17 TIG torch with its amperage adjustment controls built right into the handle. You have the option of using the foot control while welding at a bench and the ability to switch over to the hand control when doing those out-of-position weld jobs where it's just not comfortable to operate a foot control.
Comes complete with:
•Diversion 180 power source
• 8 ft (2.4 m) primary cord with (2) MVP plugs (219261 & 219258)
• RFCS-RJ45 remote foot control (300432)
• 12 ft (3.7 m) work lead with clamp
• Smith Argon regulator/flow guage with hose
• TIG Welding for Dummies book with content written by Miller
• Set-up and operation DVD
• Welding project blueprint for a machine cart/cylinder rack
12.5 ft (3.8 m) Weldcraft LS17 TIG torch with:
• Backcap
• Ceramic gas cup
• 3/32 in (2.4 mm) collet and collet body
• 2% ceriated tungsten
| MPN: | MIL907460 |
|---|---|
| Processes | TIG (GTAW) |
| Designed For | Chassis/frame fabrication Aluminum oil pans Stainless exhaust Weld repair on home equipment Metal art Vocational training |
| Amperage | 10 – 125 A (115 V) 10 – 180 A (230 V) |
| Material Thickness | Aluminum 0.030 in. (0.75 mm) - 3/16 in. (4.8 mm) Steel 0.025 in. (0.6 mm) - 3/16 in. (4.8 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | AC / DC |
| Rated Output | 150 A at 16 V, 20% duty cycle |
| Max Open Circuit Voltage | 80 VDC |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC |
| Weight | 50 lb. (23 kg) |
| Warranty | 3 Years Miller's True Blue Warranty |
MPN: MIL907460
