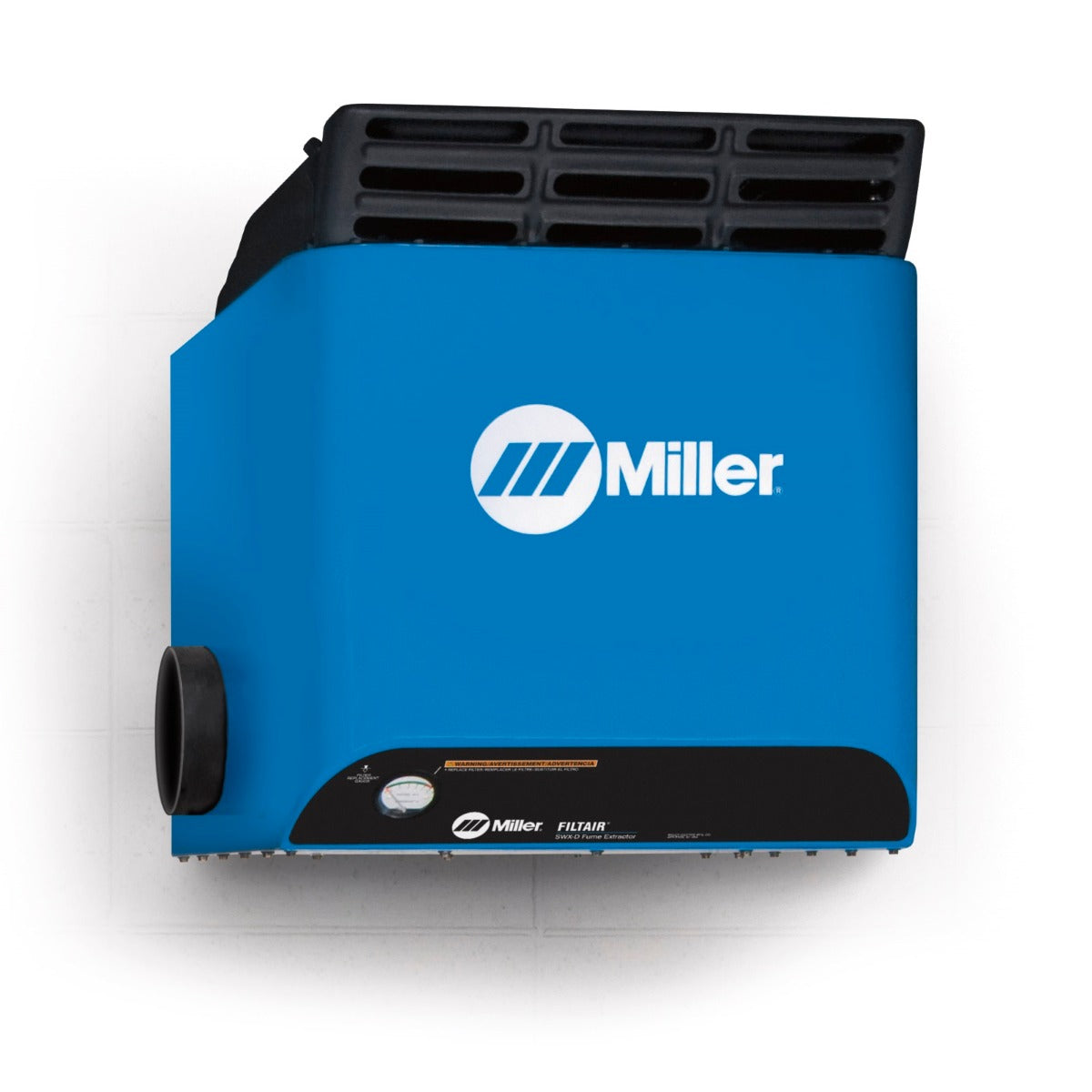

Miller Filtair SWX-D Fume Extractor Cabinet (300599)
Download Product Spec Sheet
The Filtair SWX-D wall-mounted fume extractor cabinet comes with a powerful high-volume system and a MERV 15 high-efficiency filter which is ideal for fabrication shops, manufacturing, repair work and training centers. The SWX-S models include a self-cleaning filter, whereas the SWX-D models include a disposable filter.
The disposable filter model works great for light duty and intermittent welding operations. Upgrade to self-cleaning models with high arc on time, extracting from heavy-fume processes, or when welding aluminum or galvanized materials. Self-cleaning models are also recommended for most dual-arm applications.
This is the cabinet only and does not include extraction arms or blower units.
Quick Specs:
• Filter Media: 490ft
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Cabinet Dims: 33"H, 27.25" W, 33"D
• Cabinet Weight: SWX-S: 195 lbs, SWX-D: 130 lbs
Comes With:
• 115V wall-mounted cabinet and mounting bracket
• FilTek XL Filter
• MiniHelic gauge - filter life indicator
• 37 Inch flex hose
The disposable filter model works great for light duty and intermittent welding operations. Upgrade to self-cleaning models with high arc on time, extracting from heavy-fume processes, or when welding aluminum or galvanized materials. Self-cleaning models are also recommended for most dual-arm applications.
This is the cabinet only and does not include extraction arms or blower units.
Quick Specs:
• Filter Media: 490ft
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Cabinet Dims: 33"H, 27.25" W, 33"D
• Cabinet Weight: SWX-S: 195 lbs, SWX-D: 130 lbs
Comes With:
• 115V wall-mounted cabinet and mounting bracket
• FilTek XL Filter
• MiniHelic gauge - filter life indicator
• 37 Inch flex hose
