Miller Maxstar 161 S Stick Welder with X-Case (907709001)
Download Product Spec Sheet

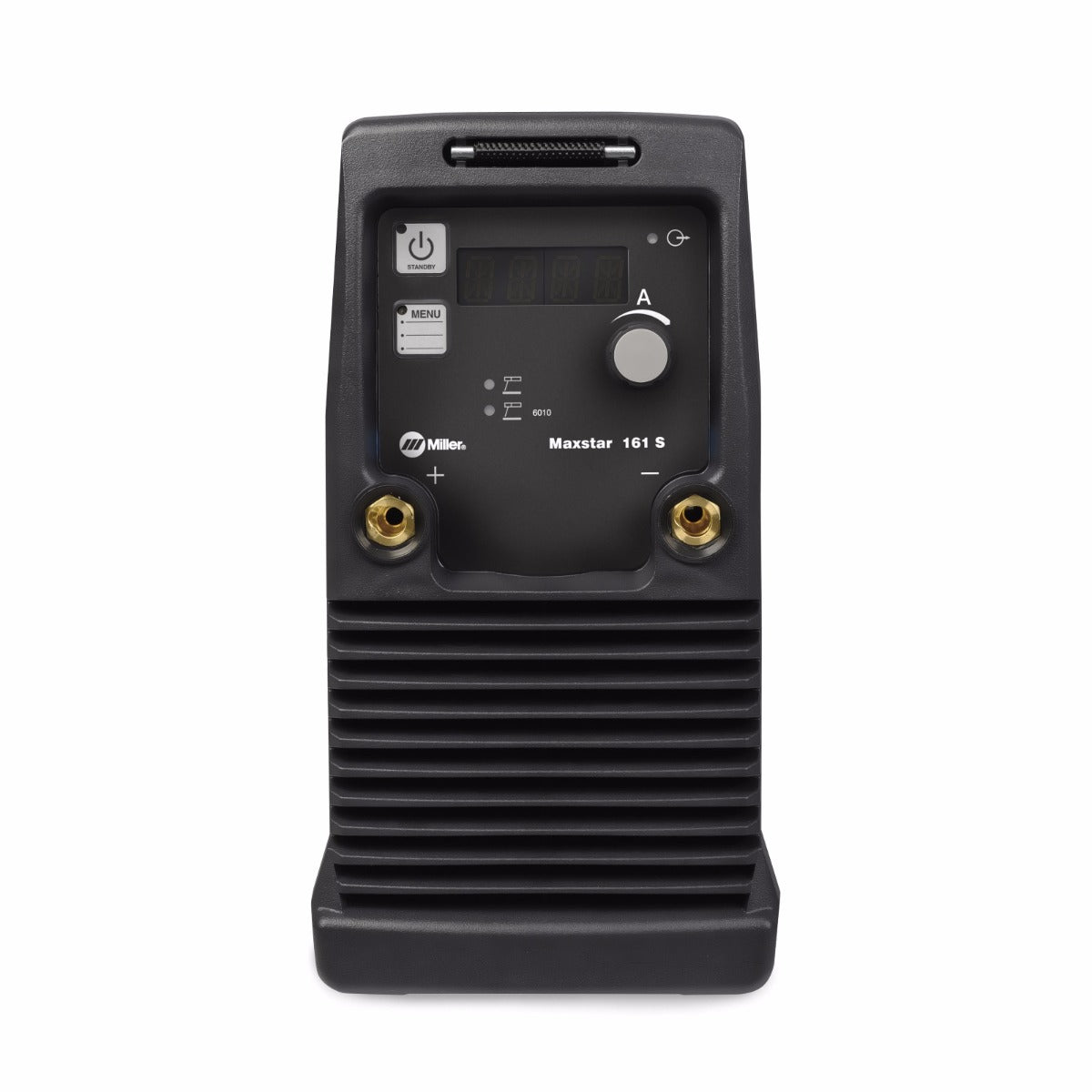

The new Miller Maxstar 161 welders now have a digital interface and feature a greater amperage range than their predecessor Maxstar 150 units. Machine setup is done in 3 easy steps - press the menu button to select your process, then hold the menu button for 1 second to access the user menu. The last step is turning the encoder to adjust your selected parameter.
The Maxstar 161 S models are not TIG capable.
New Features
• Digital meter interface
• Auto-line 120V and 240V power cords
• Pulse feature on STH models only
• Upgraded shoulder strap and handle
• Added space inside the X-Case
Quick Specs
• Stick Amperage Range: 120V - 20-90A | 240V - 20-160A
• Material Thickness: .020 - 3/16 Steel | 5/32" Electrodes
• Duty Cycle: 120V - 30% at 90A | 240V - 20% at 160 amps
• Dims: 10.3 H x 5.6 W x 13.5 D
• Weight: 13lbs

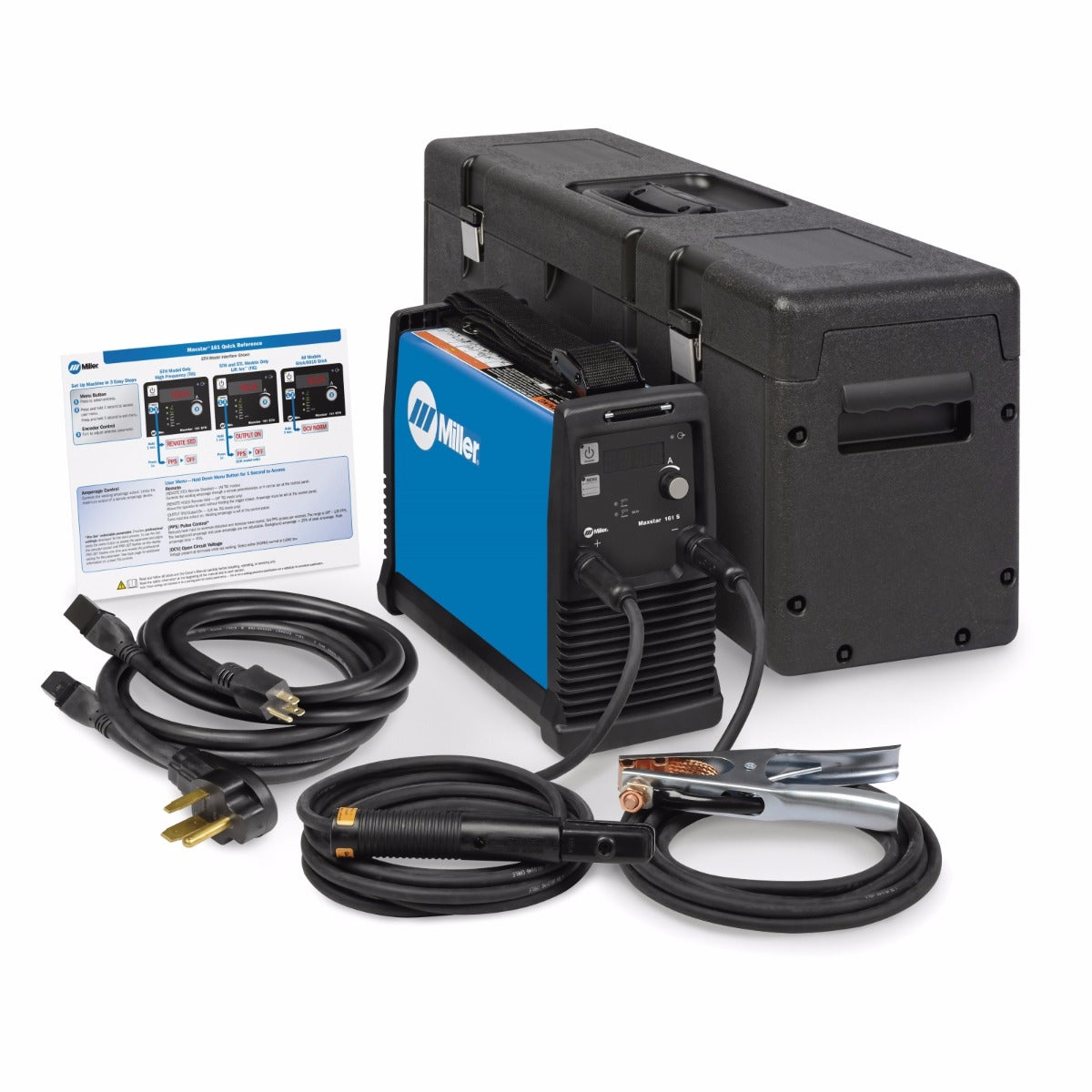

Includes
• Maxstar 161 S power source
• 6.5ft 120V and 240V power cords
• 13ft Stick electrode holder and 25mm dinse connector
• 10ft Work clamp and 25mm dinse connector
• Shoulder strap and handle
• X-Case
The Maxstar 161 S models are not TIG capable.
New Features
• Digital meter interface
• Auto-line 120V and 240V power cords
• Pulse feature on STH models only
• Upgraded shoulder strap and handle
• Added space inside the X-Case
Quick Specs
• Stick Amperage Range: 120V - 20-90A | 240V - 20-160A
• Material Thickness: .020 - 3/16 Steel | 5/32" Electrodes
• Duty Cycle: 120V - 30% at 90A | 240V - 20% at 160 amps
• Dims: 10.3 H x 5.6 W x 13.5 D
• Weight: 13lbs
Includes
• Maxstar 161 S power source
• 6.5ft 120V and 240V power cords
• 13ft Stick electrode holder and 25mm dinse connector
• 10ft Work clamp and 25mm dinse connector
• Shoulder strap and handle
• X-Case
| MPN: | MIL907709001 |
|---|---|
| UPC: | 715959645577 |
| Processes | Stick (SMAW) |
| Designed For | Maintenance repair Shipboard installation/repair Farm/ranch Hobbyist |
| Amperage | 120 V: 20–90 A (DC) 240 V: 20–160 A (DC) |
| Weldable Metals | Steel Stainless Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Rated Output | 60 A at 22.4 VDC, 100% duty cycle 90 A at 23.6 VDC, 30% duty cycle 110 A at 24.4 VDC, 100% duty cycle 160 A at 26.4 VDC, 20% duty cycle |
| Max Open Circuit Voltage | 48 VDC |
| Portability | Handle(s) Strap |
| Weld Output | CC |
| Weight | 13 lb. (5.9 kg) |
| Warranty | 3 Years Miller's True Blue Warranty |
