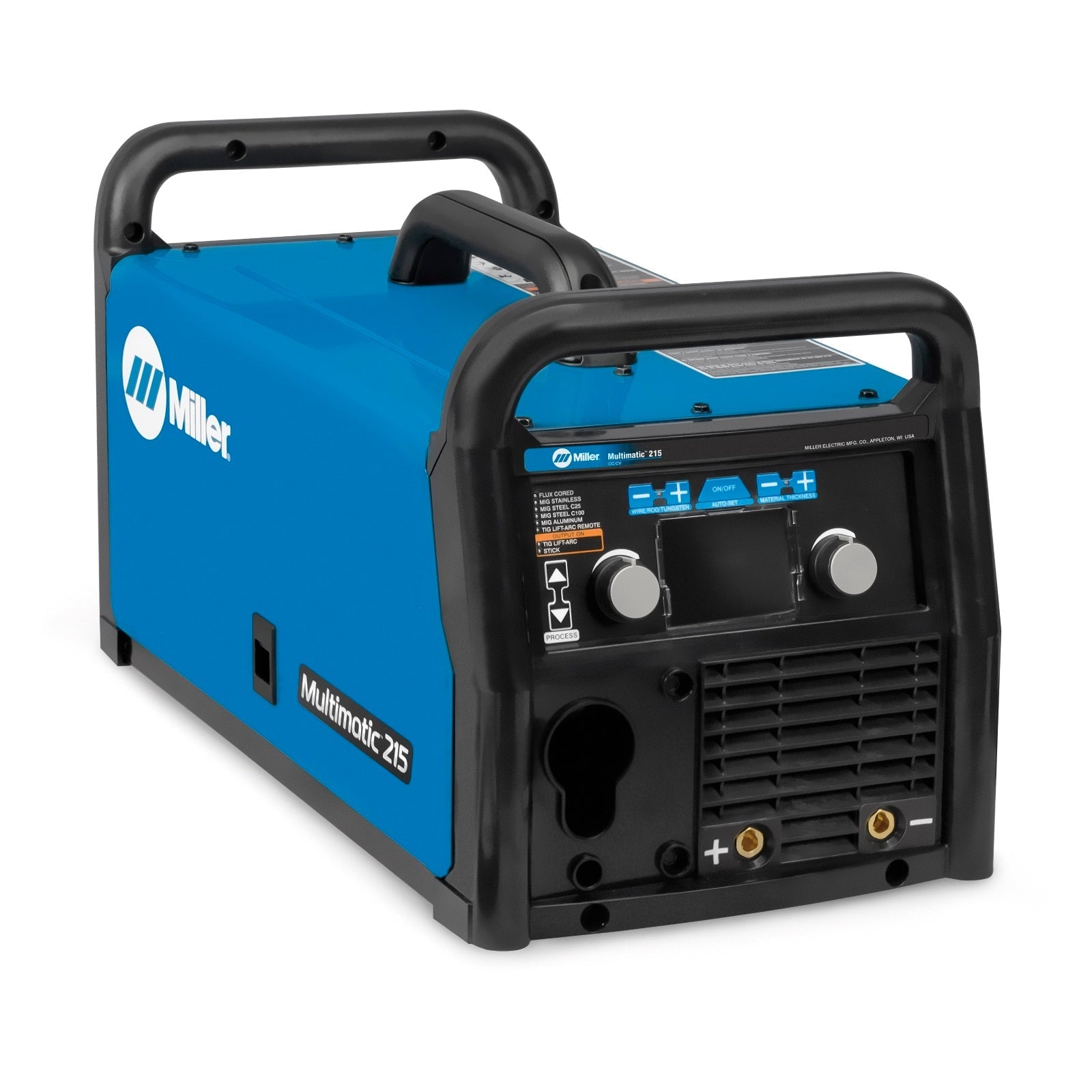

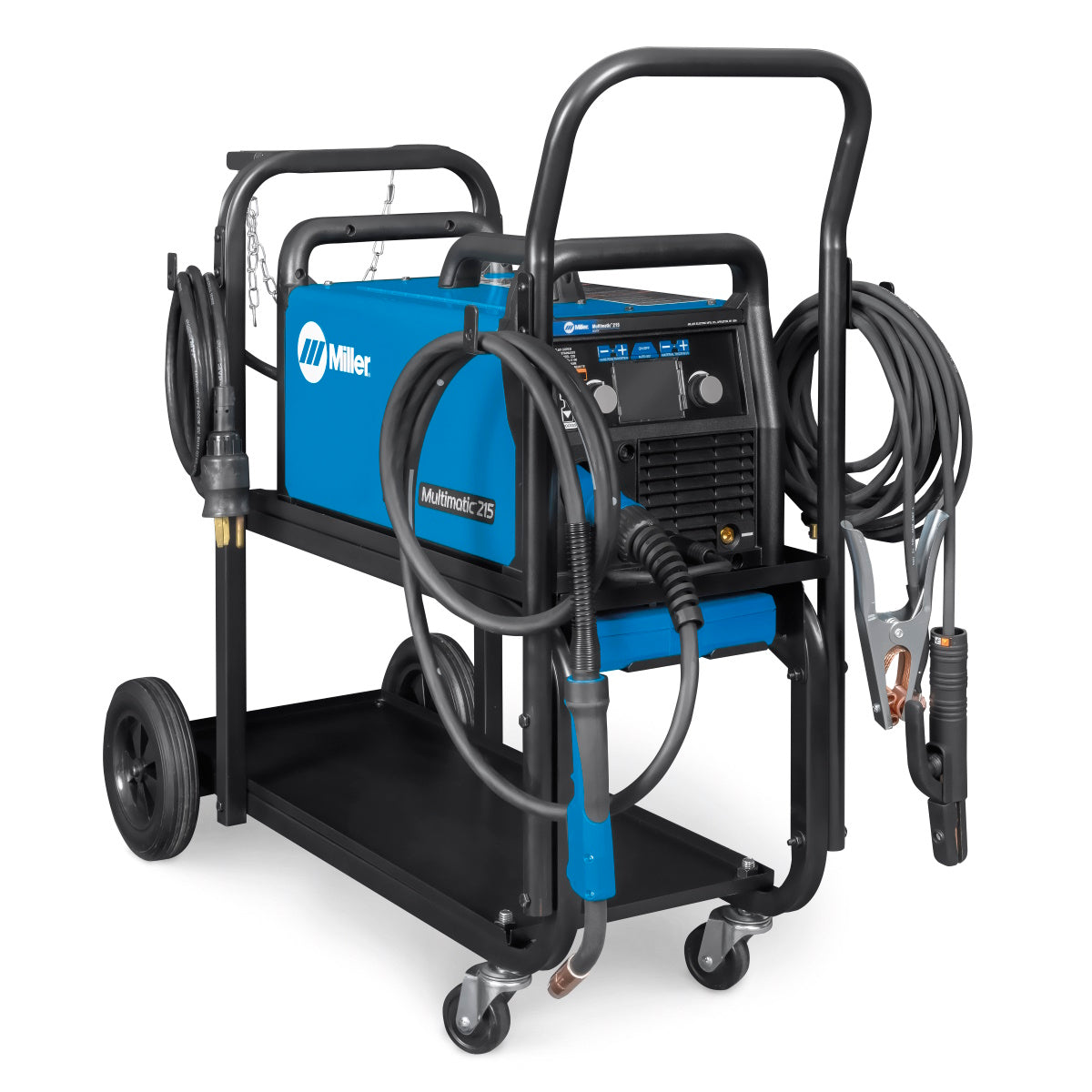

Miller Multimatic 215 Auto-Set Multiprocess Welder w/Cart (951000001)
3 year warranty. MIG 3/8". TIG 3/16"
Quantity:
Download Product Spec Sheet
When Miller Electric releases a new machine, they don't just add another toy to the sandbox of options. When Miller Electric comes to market with a new machine, they create a whole new playground! The Miller Multimatic 215 Auto-Set Multiprocess Welder (907693) is the latest offering in Miller's line of go anywhere, do anything machines. If you're a fan of Miller machines, you'll have noticed that they've gotten smaller and more powerful in recent years. The Multimatic 215 is based off the same smaller, lightweight inverter-based footprint of the recent Millermatic machines and will once again return Miller Electric to the dominant position among the multi-process options in the marketplace.
Dual solenoid Leave your gases for both MIG and TIG hooked up, allowing you to easily switch between the two processes. All-in-one Multiprocess Capabilities:
MIG, TIG, or Stick. You choose! Take on a variety of tasks with one machine.

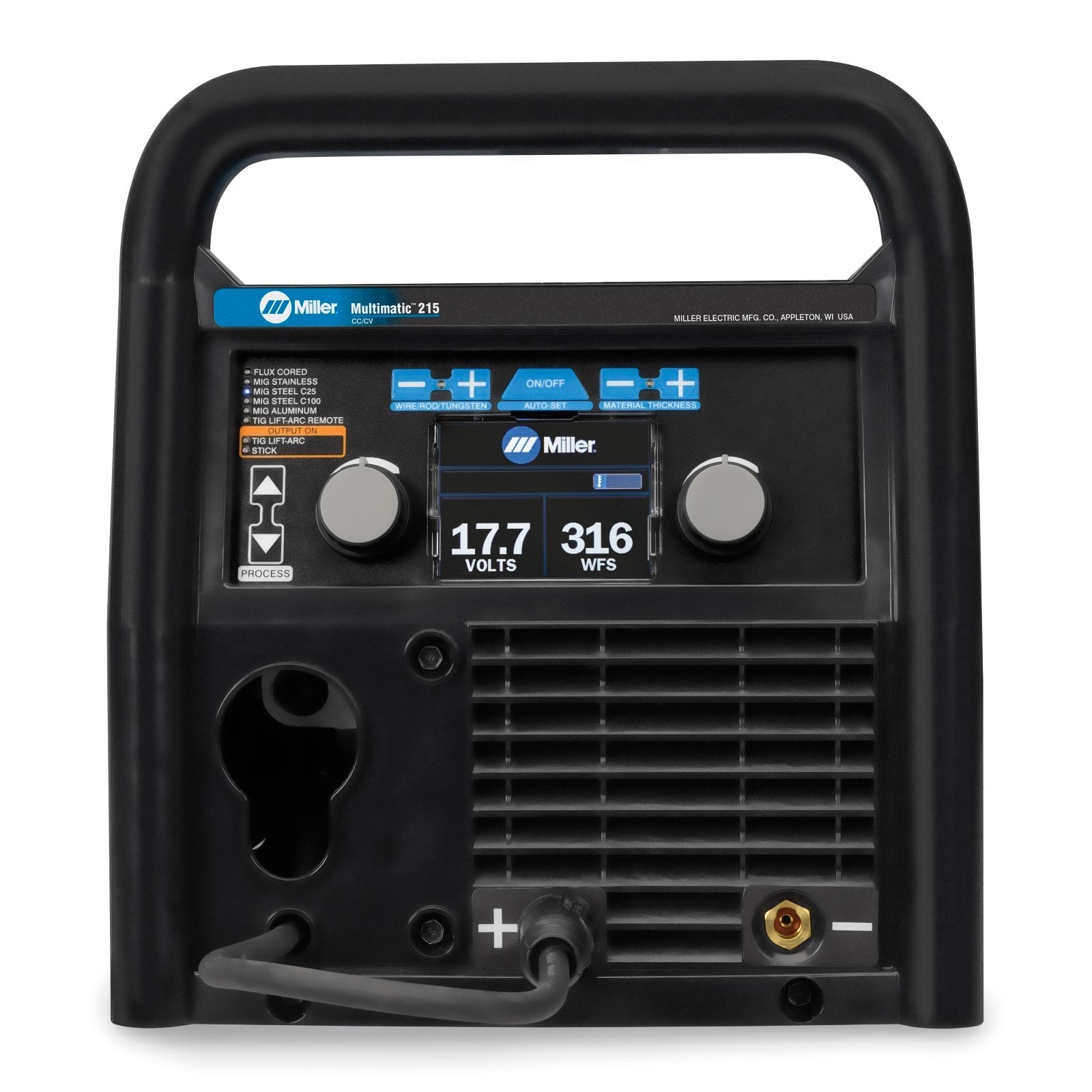

Easy-to-use color LCD Interface:
Set up is a breeze for all three processes with the LCD interface.
Up to 230 amps of Power:
Capable of welding up to 3/8-inch mild steel in a single pass.
Portable Convenience:
Weighing 38 pounds, the Multimatic 215 has a small footprint and a whole lot of power.
Excellent Arc Characteristics:
Extremely stable arc with minimal spatter for less cleanup; Smooth-Start for consistently smooth MIG arc starts.

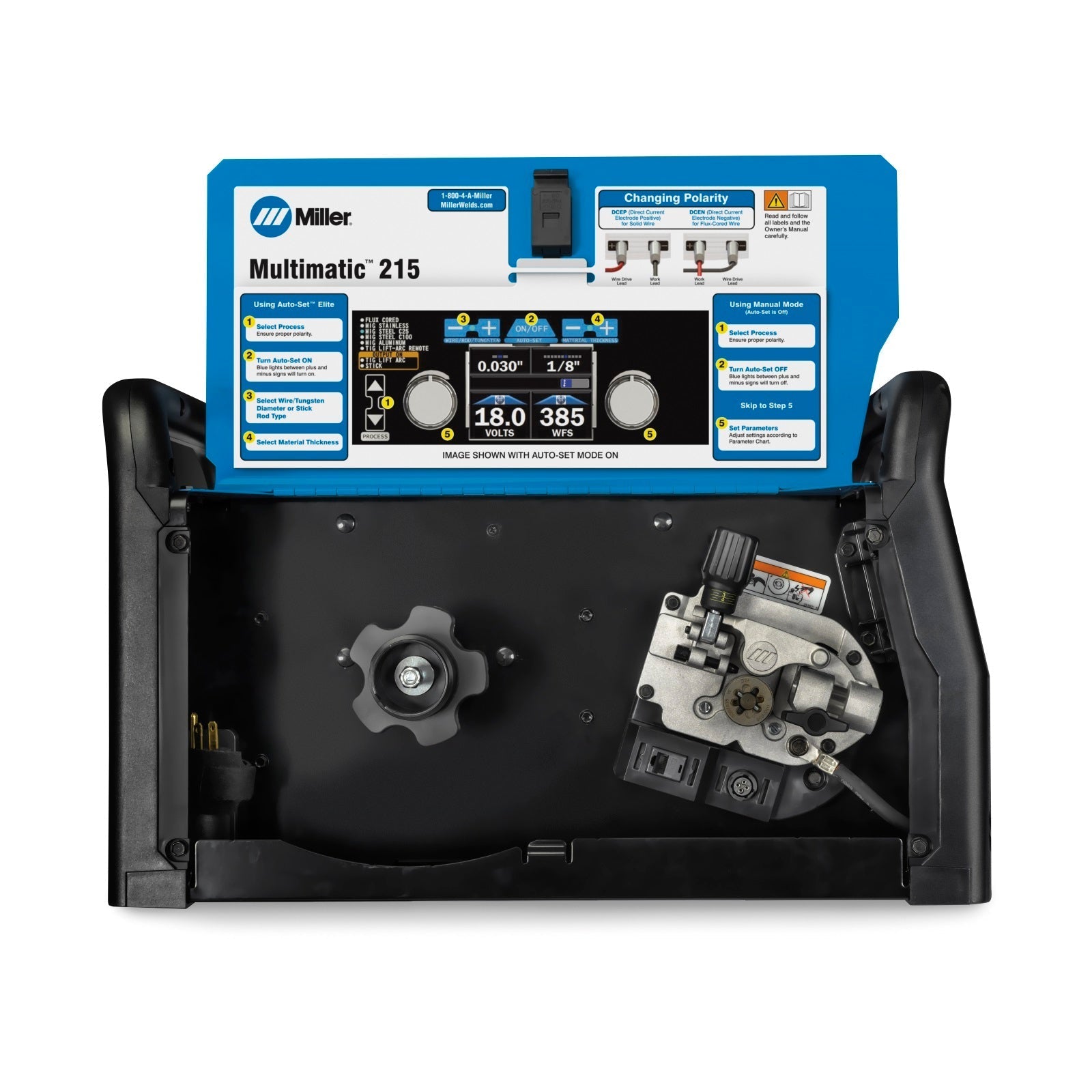

Smooth-feeding Wire Drive:
Angled wire drive and Quick-Select drive roll for smooth, reliable feeding and fast, no-hassle wire changes.
Multi-voltage plug (MVP):
Easily connects to common 120 V or 240 V power outlets; no tools required. Just choose the plug that fits the receptacle and connect it to the power cord.
Auto-Set Elite:
Fast and easy settings for multiple materials and processes to help you get welding quickly. Auto-Set Elite allows you to fine-tune weld settings while in Auto-Set mode.
Fan-On-Demand technology:
Power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.
Thermal overload protection:
Automatically shuts down the unit if airflow through the unit is blocked or the duty cycle is exceeded.
Auto Spool Gun Detect:
Automatically detects when a MIG gun or spool gun is connected, eliminating the need for a switch.

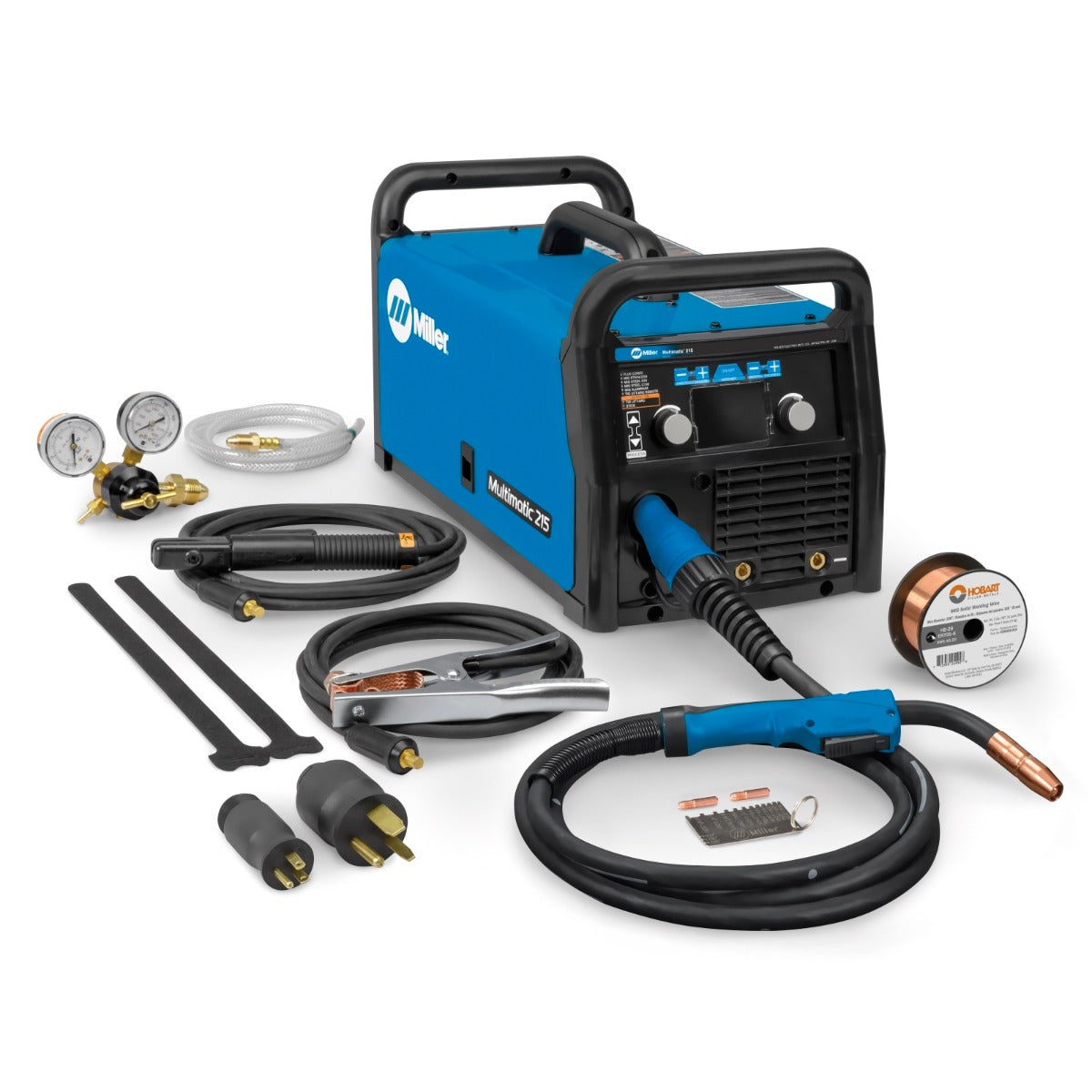

Comes complete with:
• Power cord and MVP plugs for 120 Volt and 240 Volt
• 10Ft MDX 100 MIG gun and cable assembly (Accepts Miller MDX Consumables)
• Electrode holder and 25 mm Dinse-style connector
• Work cable and clamp and 25 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon and AR/CO2 mix
• Hobart spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• Material thickness gauge
• Hook-and-loop cord wraps
Dual solenoid Leave your gases for both MIG and TIG hooked up, allowing you to easily switch between the two processes. All-in-one Multiprocess Capabilities:
MIG, TIG, or Stick. You choose! Take on a variety of tasks with one machine.
Easy-to-use color LCD Interface:
Set up is a breeze for all three processes with the LCD interface.
Up to 230 amps of Power:
Capable of welding up to 3/8-inch mild steel in a single pass.
Portable Convenience:
Weighing 38 pounds, the Multimatic 215 has a small footprint and a whole lot of power.
Excellent Arc Characteristics:
Extremely stable arc with minimal spatter for less cleanup; Smooth-Start for consistently smooth MIG arc starts.
Smooth-feeding Wire Drive:
Angled wire drive and Quick-Select drive roll for smooth, reliable feeding and fast, no-hassle wire changes.
Multi-voltage plug (MVP):
Easily connects to common 120 V or 240 V power outlets; no tools required. Just choose the plug that fits the receptacle and connect it to the power cord.
Auto-Set Elite:
Fast and easy settings for multiple materials and processes to help you get welding quickly. Auto-Set Elite allows you to fine-tune weld settings while in Auto-Set mode.
Fan-On-Demand technology:
Power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.
Thermal overload protection:
Automatically shuts down the unit if airflow through the unit is blocked or the duty cycle is exceeded.
Auto Spool Gun Detect:
Automatically detects when a MIG gun or spool gun is connected, eliminating the need for a switch.
Comes complete with:
• Power cord and MVP plugs for 120 Volt and 240 Volt
• 10Ft MDX 100 MIG gun and cable assembly (Accepts Miller MDX Consumables)
• Electrode holder and 25 mm Dinse-style connector
• Work cable and clamp and 25 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon and AR/CO2 mix
• Hobart spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• Material thickness gauge
• Hook-and-loop cord wraps
| MPN: | MIL951000001 |
|---|---|
| UPC: | 715959702980 |
| Processes | Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC) |
| Designed For | Racing Farm and Ranch Welding Education and Training |
| Amperage | 20 A - 230 A |
| Material Thickness | Mild Steel 24 ga. - 3/8 in. (MIG) Mild Steel 24 ga. -3/16 in. (TIG) Mild Steel 16 ga. - 3/8 in. (Stick) Aluminum 18 ga. - 3/8 in (MIG) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Rated Output | (MIG): 110 A at 19.5 V, 60% duty cycle 200 A at 24 V, 20% duty cycle 150 A at 21.5 V, 40% duty cycle (TIG): 140 A at 15.6 V, 40% duty cycle 190 A at 17.6 V, 20% duty cycle (STICK): 90 A at 23.6 V, 40% duty cycle 190 A at 27.6 V, 20% duty cycle |
| Max Open Circuit Voltage | 58 VDC |
| Wire Feed Speed | 1.8 m/min - 10.8 m/min 70 IPM - 425 IPM |
| Wire Diameter | Stainless 0.024 in. - 0.035 in. Stainless 0.6 mm. - 0.9 mm. Solid Steel 0.6 mm. - 0.9 mm. Solid Steel 0.024 in. - 0.035 in. Flux Cored 0.03 in. - 0.045 in. Flux Cored 0.8 mm. - 1.2 mm. |
| Spool Size | 8 in (203 mm) |
| Portability | Handle(s) Running Gear / Cart |
| Weld Output | CC / CV |
| Weight | 38 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
Switching between MIG and TIG on the Miller Multimatic 215 Multiprocess Welder
Check out the dual solenoid on the Miller Multimatic 215 Multiprocess Welder
MIG Welding on the Miller Multimatic 215 Multiprocess Welder
MIG Welding on the Miller Multimatic 215 Multiprocess Welder (alternate view)
TIG Welding on the Miller Multimatic 215 Multiprocess Welder
