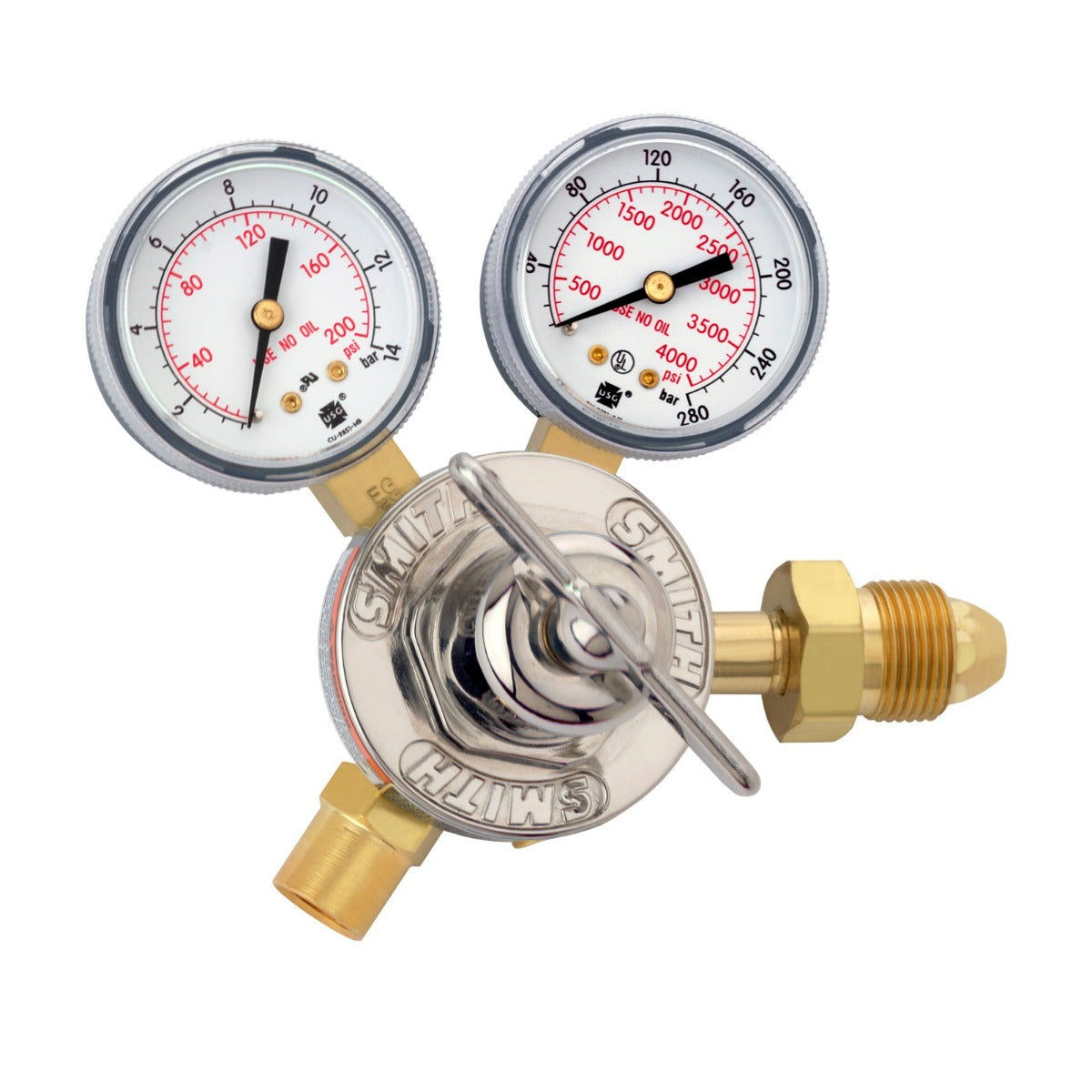

Miller | Smith MD Single Stage Series 30 Inert Gas Regulator (30-150-580)
Download Product Spec Sheet
The Miller Smith medium-duty series 30 inert gas regulator offers industrial grade quality, providing accurate pressure readings for welding, cutting, heating, and other applications. These regulators come with a 3-year warranty and provide consistent gas flow due to the durable construction.
Optional Hard Hat Regulator Guards are sold separately (H195).
Features
• Stainless Steel Diaphragm - resists corrosion, leaking and freeze-up if used with liquid gases
• Color-Coded Labels - supplies performance capabilities, easy gas service, and identification
• External Relief Valve - protects regulator from damage due to inadvertent high-pressure surge
• Nickel-Plated Bonnet - along with brass body, these protect against corrosion
• Gauges and Lenses - 2.5 inch corrosion-resistant polished brass gauges with shatter-resistant lenses
• Sure Seat Dual-Filtered Seat Assembly - protects high-pressure seat from debris for reliable operation
Quick Specs
• Max Delivery Pressure: 150 PSI (10 Bar)
• Max Inlet Pressure: 3,000 PSI (207 Bar)
• Outlet Connection: 5/8"-18 RH Internal
• CGA: 580
Optional Hard Hat Regulator Guards are sold separately (H195).
Features
• Stainless Steel Diaphragm - resists corrosion, leaking and freeze-up if used with liquid gases
• Color-Coded Labels - supplies performance capabilities, easy gas service, and identification
• External Relief Valve - protects regulator from damage due to inadvertent high-pressure surge
• Nickel-Plated Bonnet - along with brass body, these protect against corrosion
• Gauges and Lenses - 2.5 inch corrosion-resistant polished brass gauges with shatter-resistant lenses
• Sure Seat Dual-Filtered Seat Assembly - protects high-pressure seat from debris for reliable operation
Quick Specs
• Max Delivery Pressure: 150 PSI (10 Bar)
• Max Inlet Pressure: 3,000 PSI (207 Bar)
• Outlet Connection: 5/8"-18 RH Internal
• CGA: 580
| MPN: | MIL30-150-580 |
|---|---|
| UPC: | 014495263451 |
