Miller Syncrowave 212 AC/DC TIG Welder w/Spoolmate 150 Wireless Foot Ctrl (951000253)
Download Product Spec Sheet
The Miller Syncrowave 212 AC/DC TIG and stick welder with spoolgun and wireless foot control package offers the high quality tig welder you expect from Miller, while allowing you to tackle higher deposition projects with the spoolgun. The Auto-Set functionality sets the proper weld parameters quickly to get you welding confidently. With an easy to navigate LCD screen, you will spend less time pushing buttons and more time welding.
Auto-Set
Automatically set your weld parameters with a few taps so you can get right to the task at hand. This convenient feature helps you confidently tackle new applications.
Intuitive Interface
With an easy-to-navigate LCD screen, you can spend less time pushing buttons and more time under the hood. It’s just one more way Syncrowave 212 is making it faster than ever to start on your TIG projects.
Water Cooler Compatible
Welding with the optional water cooler (sold separately) enhances torch performance and allows you to weld with fewer breaks. The Coolmate 1S integrates seamlessly with the Syncrowave 212 (B11N17 coupler required to adapter water-cooled torch to 195380 dinse connector).
Portable:
Weighing in at 54 lbs, the Syncrowave 212 can easily be transported between job sites or fab shops.
Use It On 120 AND 240 Volt Input Power:
Miller's Multi-Voltage system allows you to connect to common 120 or 240 V power receptacles without the use of any tools; simply choose the power cord that fits the receptacle.
Quick Specs
• Input Power: 120-240V | 1-Phase | 50/60 Hz
• Amperage Range: AC/DC TIG - 20-210A | DC Stick - 30-200A | MIG - 30-175A
• Duty Cycle: 60% @ 130A
• Weight: 54 lbs (Power Source Only)
• Dims: 17.5" H x 11.25" W x 21.5" L

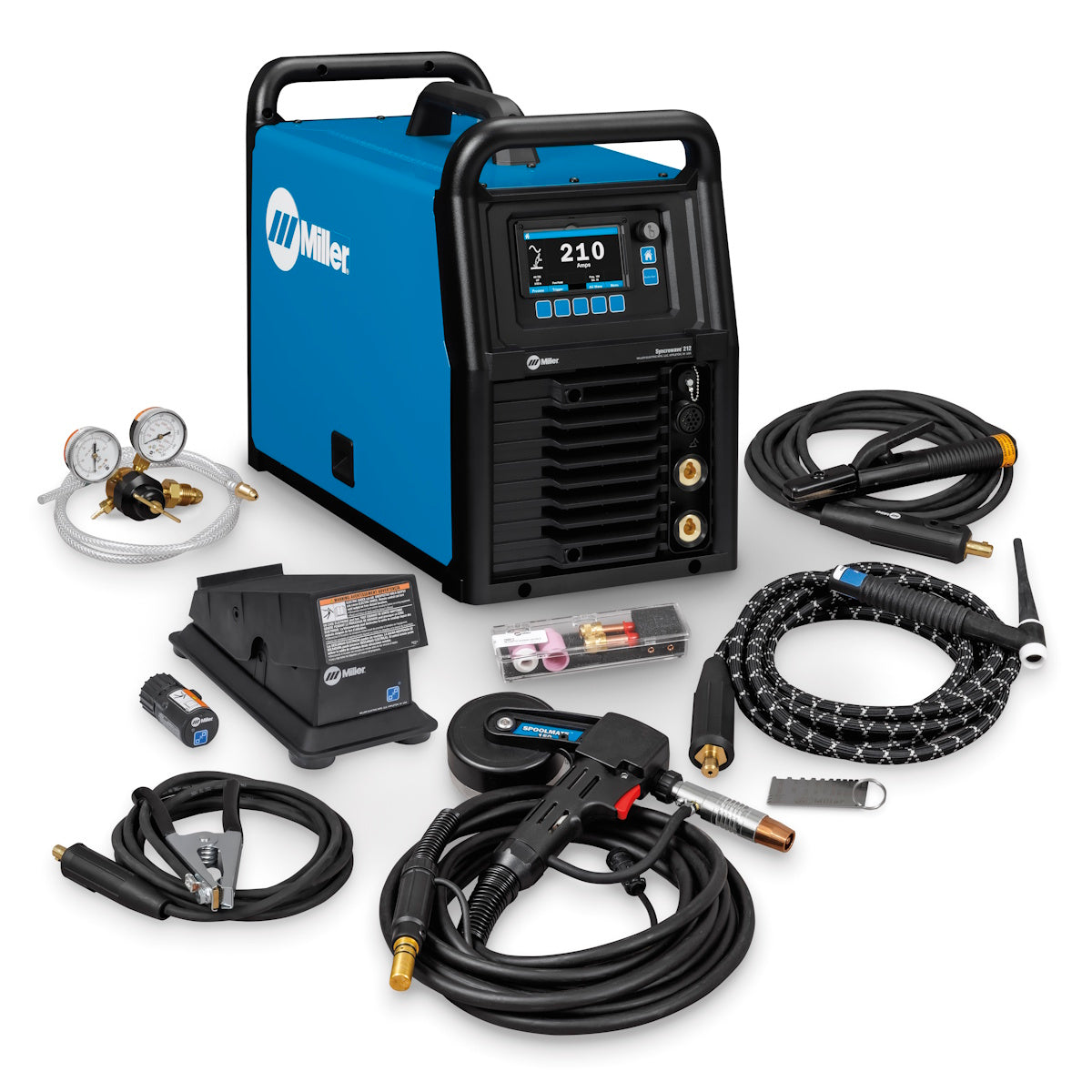

Comes complete with:
• Syncrowave 212 power source
• Spoolmate 150 Spoolgun (301272) and adaptor (266638)
• 6 ft 120V primary cord | 6 ft 240V power cord
• 12 ft 150 A Air Cooled TIG torch with Dinse connector
• 15 ft work cable with clamp and Dinse connector
• 15 ft Electrode holder with Dinse connector
• Wireless foot control (301580)
• Regulator/flow gauge and 5 ft gas hose
• Gas lens accessory kit for tig torch
• Material thickness gauge
| MPN: | MIL951000253 |
|---|---|
| Processes | AC/DC TIG (GTAW) DC stick (SMAW) Pulsed TIG (GTAW-P) MIG (GMAW)* Flux-cored (FCAW)* *With Spoolmate 150. |
| Designed For | Racing Farm and Ranch Manufacturing Construction and Fabrication Light metal fabrication Maintenance/repair operations Light manufacturing Automotive repair Vocational training Hobby |
| Amperage | 5–210 A |
| Material Thickness | Aluminum 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm) Steel 0.020 in. (0.5 mm) - 1/4 in. (6.4 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | AC / DC |
| Rated Output | 125 A at 15 V, 60% duty cycle |
| Max Open Circuit Voltage | 47 VDC |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | 125 A at 15 V, 60% duty cycle |
| Weight | TIG/stick only: 133.5 lb. (61 kg) TIG/MIG Complete: 139.5 lb. (63 kg) |
| Warranty | 3 Years Miller's True Blue Warranty |
MPN: MIL951000253
