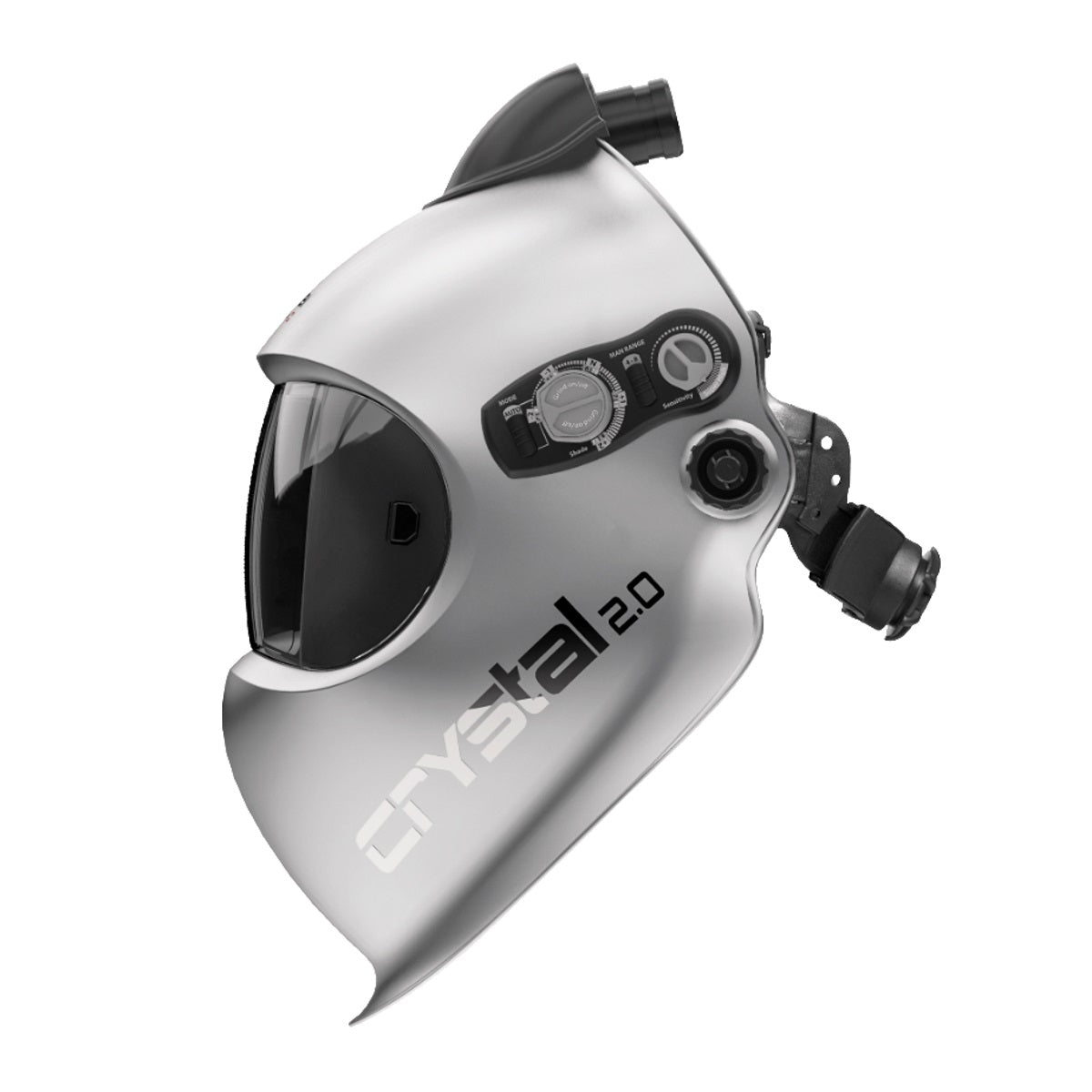

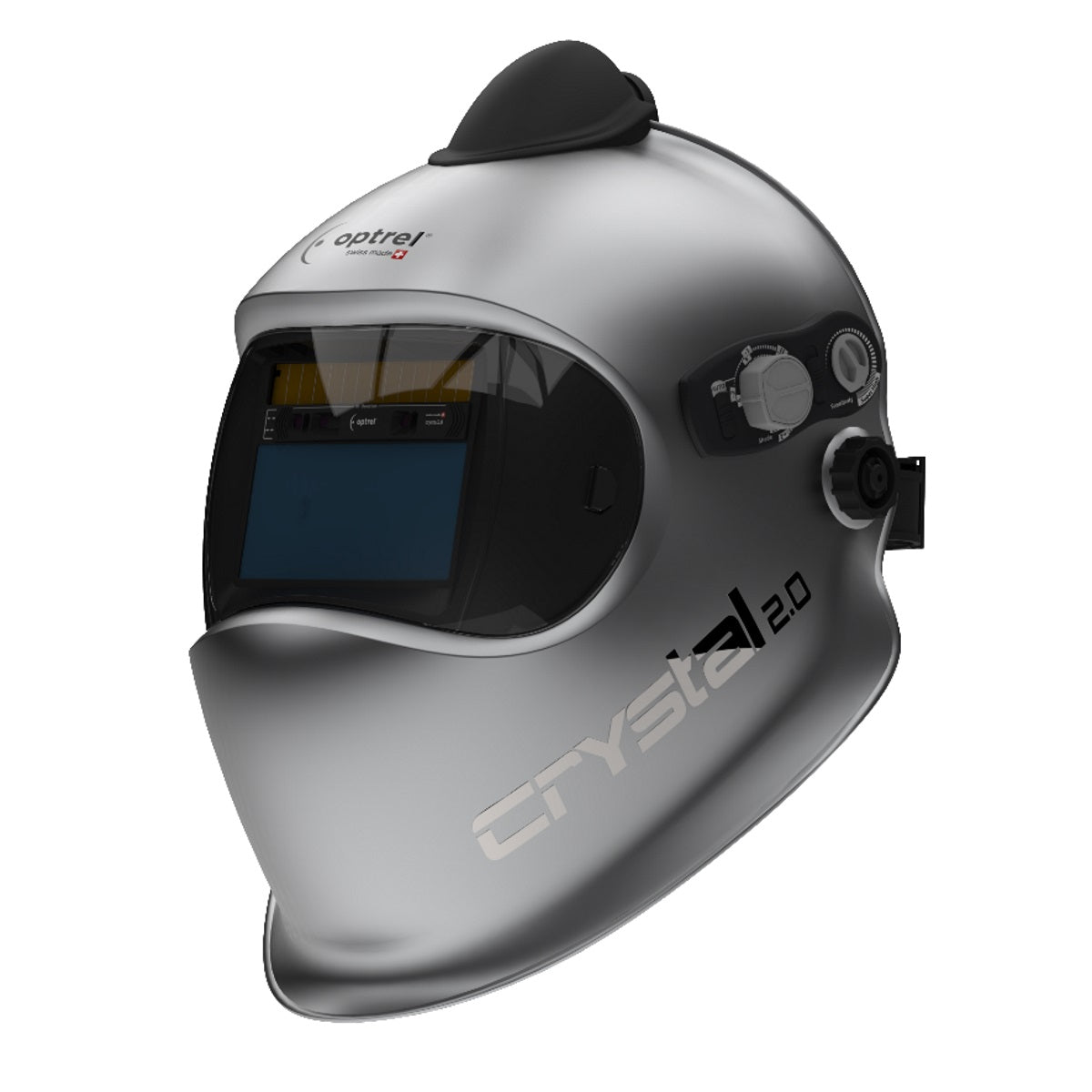

Optrel E3000X PAPR with Crystal 2.0 Welding Helmet (4530.051)
Download Product Spec Sheet
It seems like every few years, Optrel completely changes the standard for auto darkening welding helmets. The Optrel Crystal 2.0 Welding Helmet changes everything. Forever. With light transmission of 31% in bright condition (protection level 2!) you will have a practically unclouded and clear view of your working environment. This, in combination with the almost perfect color spectrum of the CLT2.0 lens, allows you to see what is really going on in the weld pool, and with a clarity like you've never experienced.
BRIGHTNESS LEVEL 2.0 – WORLD RECORD
Optrel broke it's own record! The crystal2.0 beat the best brightness level, which Optrel set itself three years ago – and which had never been achieved previously.
The color perception in light state is almost like looking through clear window glass and in dark mode you enjoy a detailed and high-contrast view of the welding pool with a never-seen-before clearness.
Cystal Lens Technology with Light State 2.0
See clearly what happens before, during, and after the welding process.
Autopilot Shade Level 4 to 12
Your welding helmet automatically adapts to changing light conditions.
Twilight Technology
Unlike other adaptive lenses that rapidly return to light, the Panoramaxx uses a twilight feature that restores light more naturally after you're done with your weld, presenting a smooth transition to your eyes. This unique, Optrel-exclusive feature will reduce your eye fatigue and help you work longer and safer.

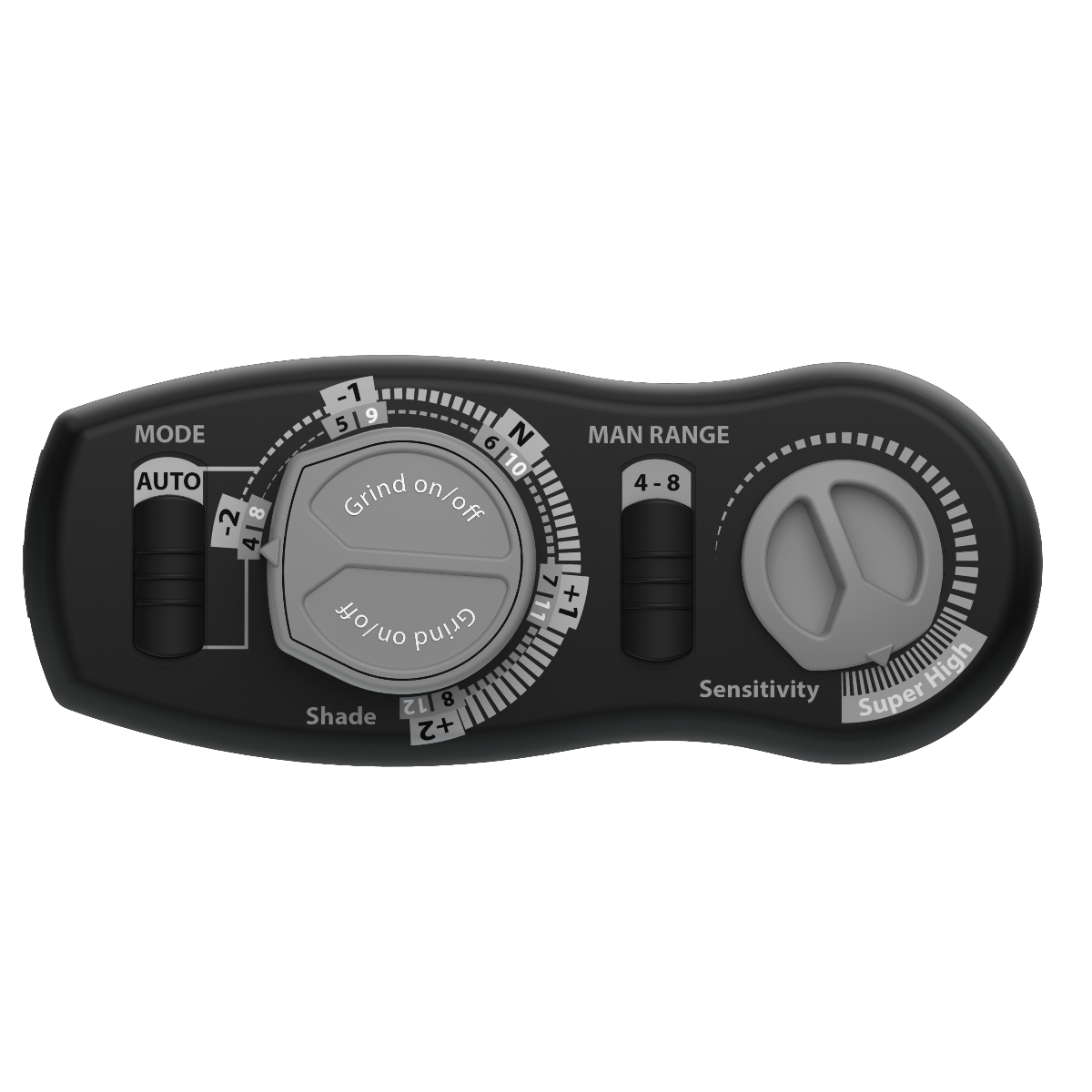

Sensitivity Control
You can adapt the helmet to your environment and requirements.
Grind Mode
The brightest vision during grinding work ever to be offered by a welding helmet.
Sensor Slide
Set the sensor detection angle individually to your requirements.
Heat-Reflecting Paint
Helps keep you cool at all times. Hey, every little bit of tech helps, right?
PAPR Features
The Optrel e3000 PAPR provides maximum protection against exposures to smoke, dust, and other particulates. It's lightweight design and easy to access buttons make wearing it a pleasure.

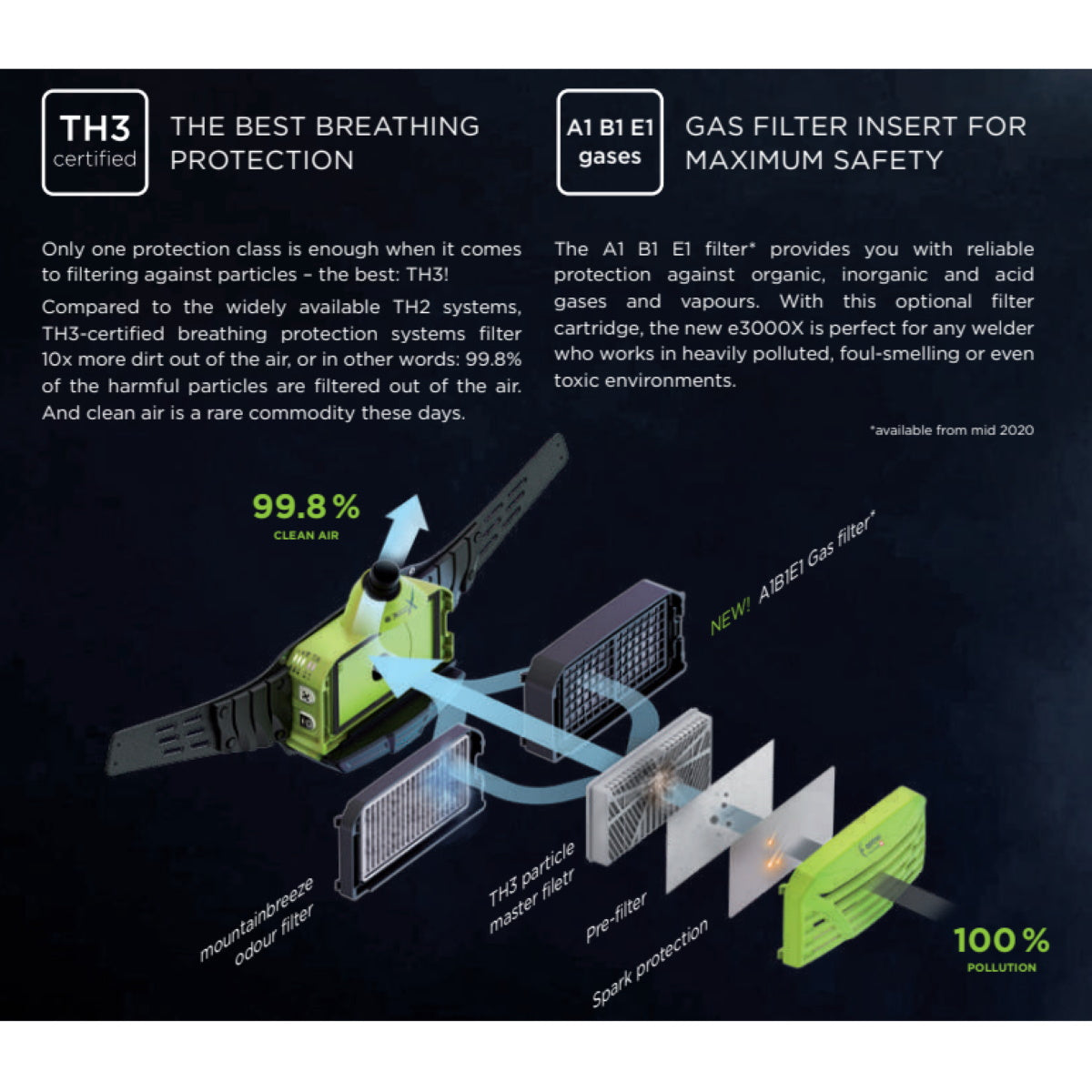

Respiratory Protection – The e3000’s innovative HEPA class Th3 filters blocks more than 99.8% of particulates for increased safety. Its face seal prevents welders from being exposed to smoke and other debris when working.
Two-Channel Air Distribution – Its unique internal design presents clean air to the mouth and nose, and to the forehead for cooling, improving overall comfort while reducing fatigue over time. Welders can adjust to three levels of air flow depending on environmental needs or personal comfort preferences (200 to 240 nl/min).

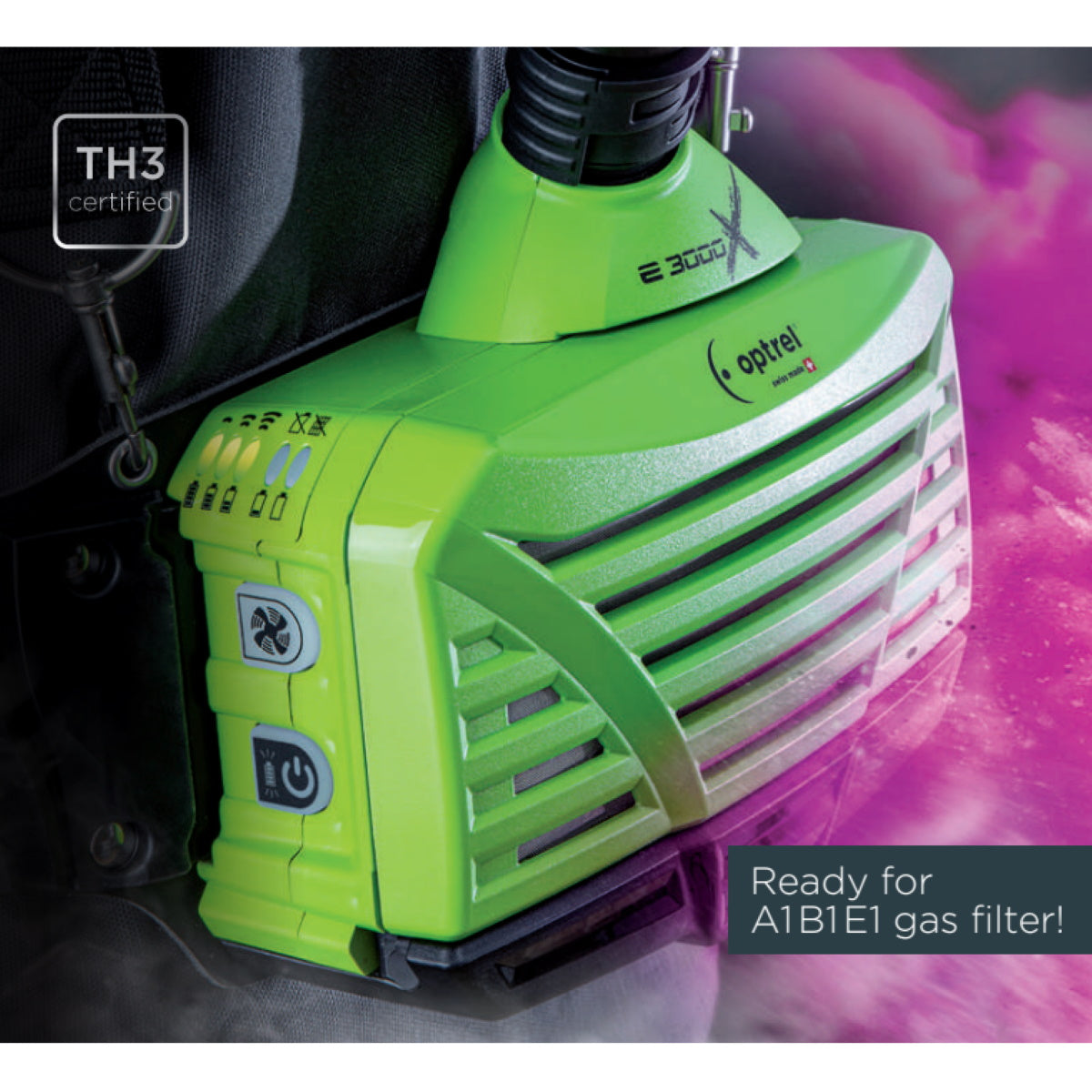

Ergonomically Designed – The e3000’s belt-based blower unit sits comfortably at the welder’s center of gravity, with easy access buttons to control the unit. Its hose connections on the helmet and blower swivel to ensure full range of movement, reducing the potential for tangling or snagging on surrounding structures.
Enhanced Productivity – Integrated flow sensors perform an automatic air flow check at start up, eliminating the need for welders to manually check their system each time of use. Plus, its rechargeable battery operates up to 12 hours continuously without replacement.
Audible Alarms – Audible and visible alarms alert welders of a missing or clogged filter, and when the battery is running low.
Maximum Protection – Provides maximum protection from exposures to smoke, dust, and other particulates, including Hexavalent chromium (CrVI).
PAPR Quick Specs
• NIOSH Certification - P100 (42 CFR 84)
• Filter - HEPA Class Th3
• Air Flow - 3 Levels (200 – 240 nl/min)
• Blower Unit Weight - 3.5 lbs (including filter, belt and battery)
• Battery – Li-Ion rechargeable (approx. 12 hours of continuous use per full-charge)

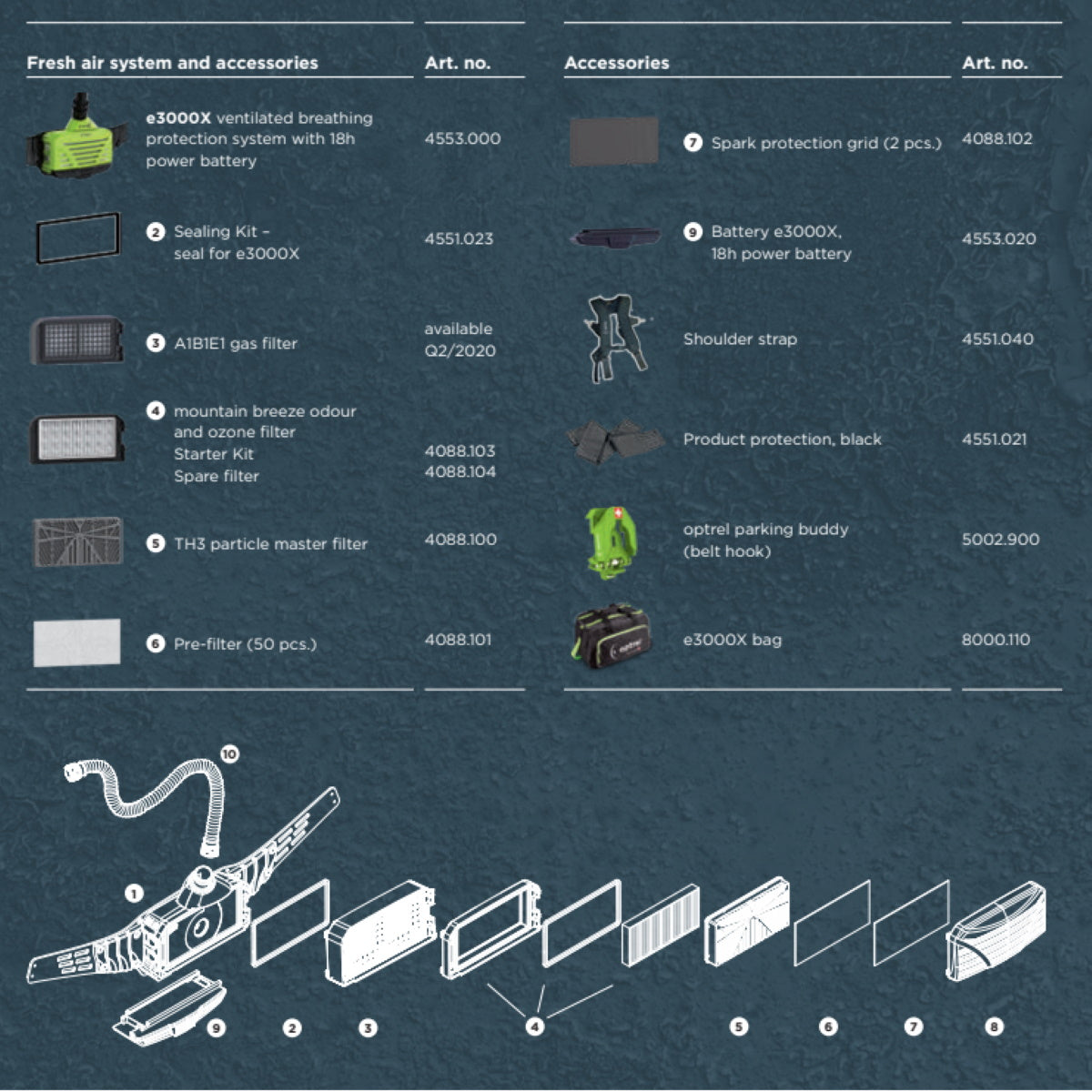

Includes
• Crystal 2.0 Welding Helmet
• Blower Unit with Hose and Belt
• Protection Sleeve
• TH3P R SL Filter
• Battery and Battery Charger
• Instruction Manual
• 2 Year Mfg Warranty (no battery warranty)
BRIGHTNESS LEVEL 2.0 – WORLD RECORD
Optrel broke it's own record! The crystal2.0 beat the best brightness level, which Optrel set itself three years ago – and which had never been achieved previously.
The color perception in light state is almost like looking through clear window glass and in dark mode you enjoy a detailed and high-contrast view of the welding pool with a never-seen-before clearness.
Cystal Lens Technology with Light State 2.0
See clearly what happens before, during, and after the welding process.
Autopilot Shade Level 4 to 12
Your welding helmet automatically adapts to changing light conditions.
Twilight Technology
Unlike other adaptive lenses that rapidly return to light, the Panoramaxx uses a twilight feature that restores light more naturally after you're done with your weld, presenting a smooth transition to your eyes. This unique, Optrel-exclusive feature will reduce your eye fatigue and help you work longer and safer.
Sensitivity Control
You can adapt the helmet to your environment and requirements.
Grind Mode
The brightest vision during grinding work ever to be offered by a welding helmet.
Sensor Slide
Set the sensor detection angle individually to your requirements.
Heat-Reflecting Paint
Helps keep you cool at all times. Hey, every little bit of tech helps, right?
PAPR Features
The Optrel e3000 PAPR provides maximum protection against exposures to smoke, dust, and other particulates. It's lightweight design and easy to access buttons make wearing it a pleasure.
Respiratory Protection – The e3000’s innovative HEPA class Th3 filters blocks more than 99.8% of particulates for increased safety. Its face seal prevents welders from being exposed to smoke and other debris when working.
Two-Channel Air Distribution – Its unique internal design presents clean air to the mouth and nose, and to the forehead for cooling, improving overall comfort while reducing fatigue over time. Welders can adjust to three levels of air flow depending on environmental needs or personal comfort preferences (200 to 240 nl/min).
Ergonomically Designed – The e3000’s belt-based blower unit sits comfortably at the welder’s center of gravity, with easy access buttons to control the unit. Its hose connections on the helmet and blower swivel to ensure full range of movement, reducing the potential for tangling or snagging on surrounding structures.
Enhanced Productivity – Integrated flow sensors perform an automatic air flow check at start up, eliminating the need for welders to manually check their system each time of use. Plus, its rechargeable battery operates up to 12 hours continuously without replacement.
Audible Alarms – Audible and visible alarms alert welders of a missing or clogged filter, and when the battery is running low.
Maximum Protection – Provides maximum protection from exposures to smoke, dust, and other particulates, including Hexavalent chromium (CrVI).
PAPR Quick Specs
• NIOSH Certification - P100 (42 CFR 84)
• Filter - HEPA Class Th3
• Air Flow - 3 Levels (200 – 240 nl/min)
• Blower Unit Weight - 3.5 lbs (including filter, belt and battery)
• Battery – Li-Ion rechargeable (approx. 12 hours of continuous use per full-charge)
Includes
• Crystal 2.0 Welding Helmet
• Blower Unit with Hose and Belt
• Protection Sleeve
• TH3P R SL Filter
• Battery and Battery Charger
• Instruction Manual
• 2 Year Mfg Warranty (no battery warranty)
| MPN: | OPT4530.051 |
|---|---|
| Warranty | 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months |
| Arc Sensors | Three sensors |
| Delay Control | Bright to dark: 0.100 ms at room temperature, 0.070 ms at 55°C Dark to bright: 0.1 s to 2.0 s (with dimming function) |
| Digital | Inactive: Shade level 2.0 Active, Manual: Shade level 4-12 |
| Grind Mode | GRIND MODE The brightest vision during grinding work ever to be offered by a welding helmet. |
| Modes | Infinitely adjustable, now with “Super High” sensitivity |
| Reaction Time | Twilight Technology Unlike other adaptive lenses that rapidly return to light, the Panoramaxx uses a twilight feature that restores light more naturally after you're done with your weld, presenting a smooth transition to your eyes. This unique, Optrel-exclusive feature will reduce your eye fatigue and help you work longer and safer. |
| Sensitivity Control | AUTOPILOT SHADE LEVEL 4 TO 12 Your welding helmet automatically adapts to changing light conditions. |
| Viewing Field | Inactive: Shade level 2.0 Active, Manual: Shade level 4-12 |
MPN: OPT4530.051
