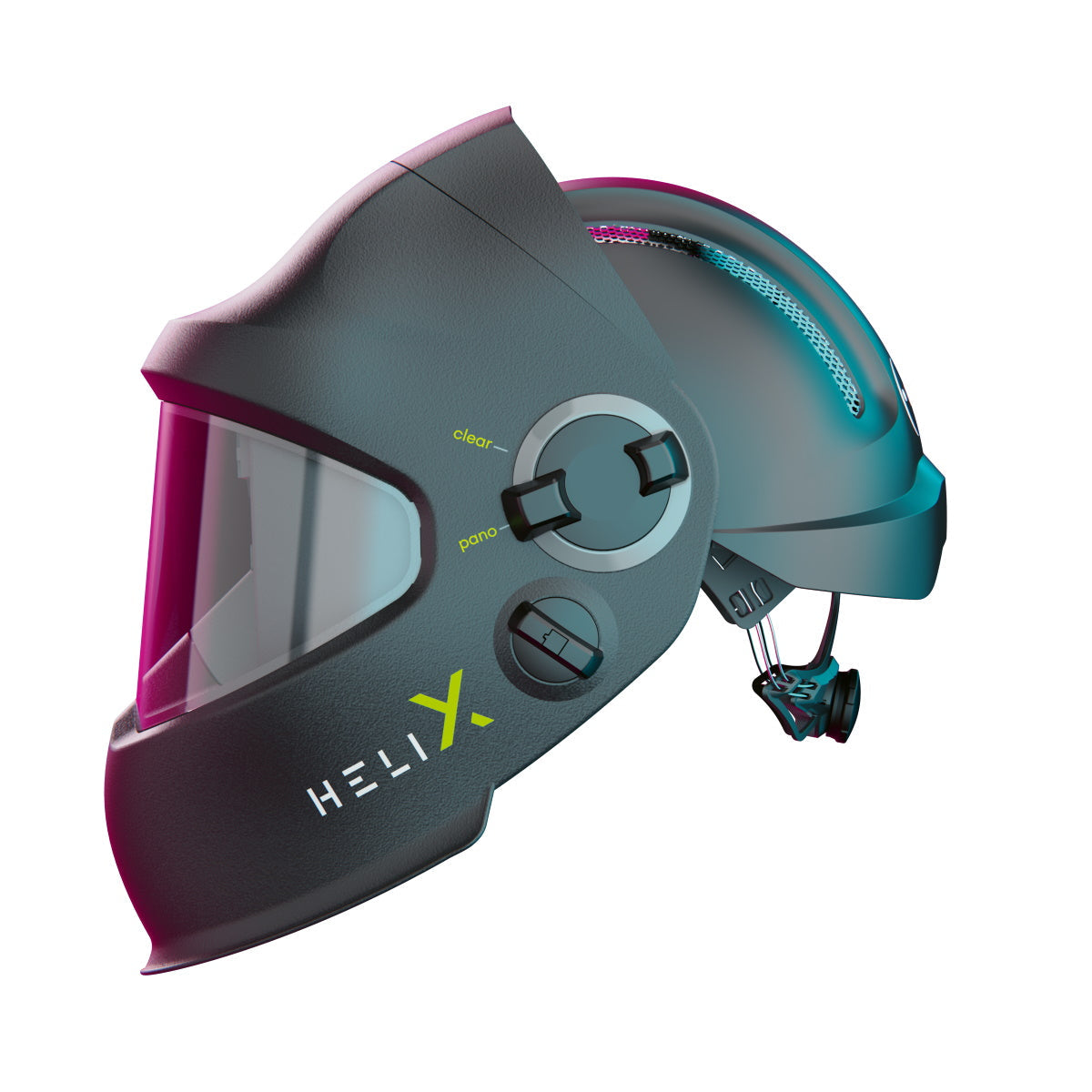

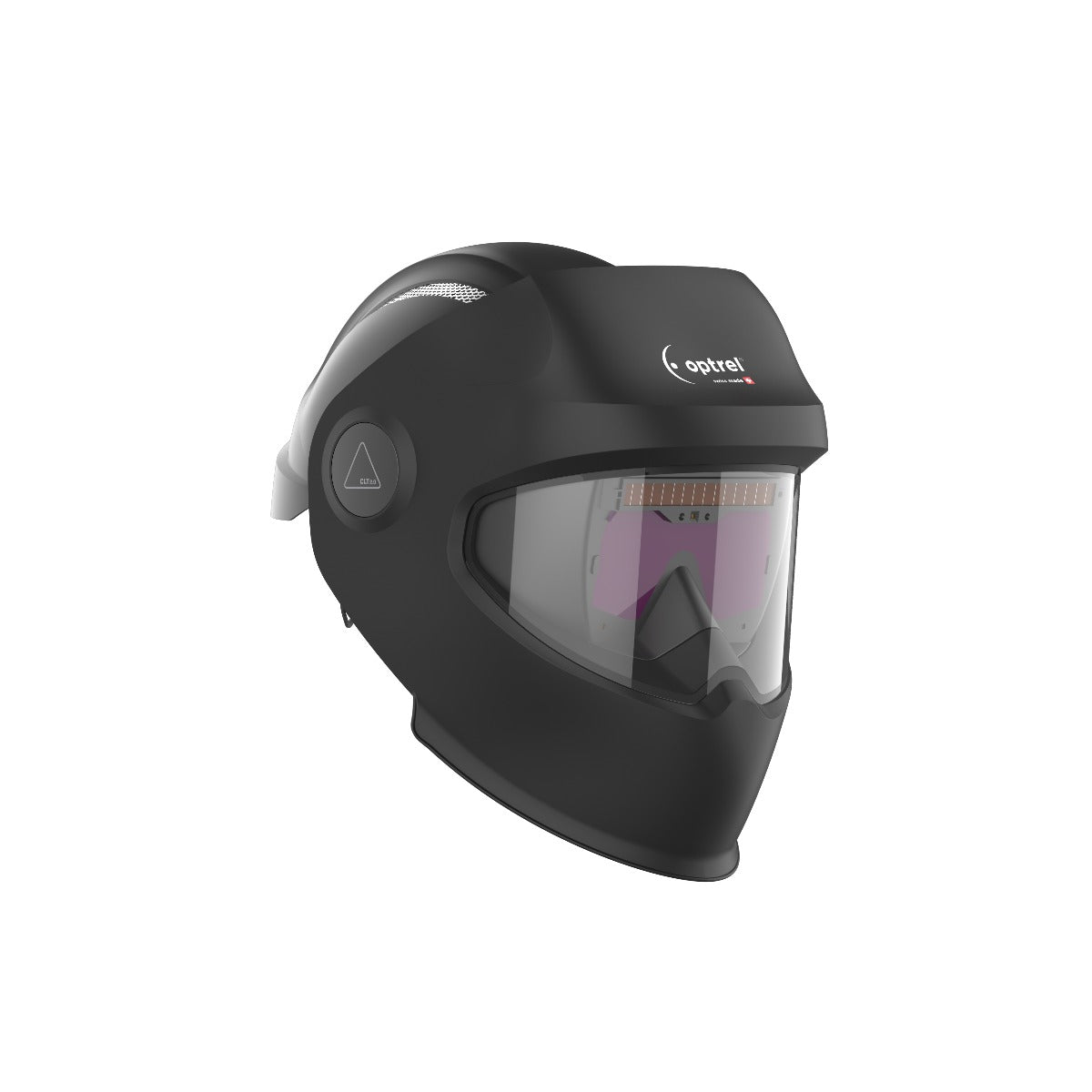

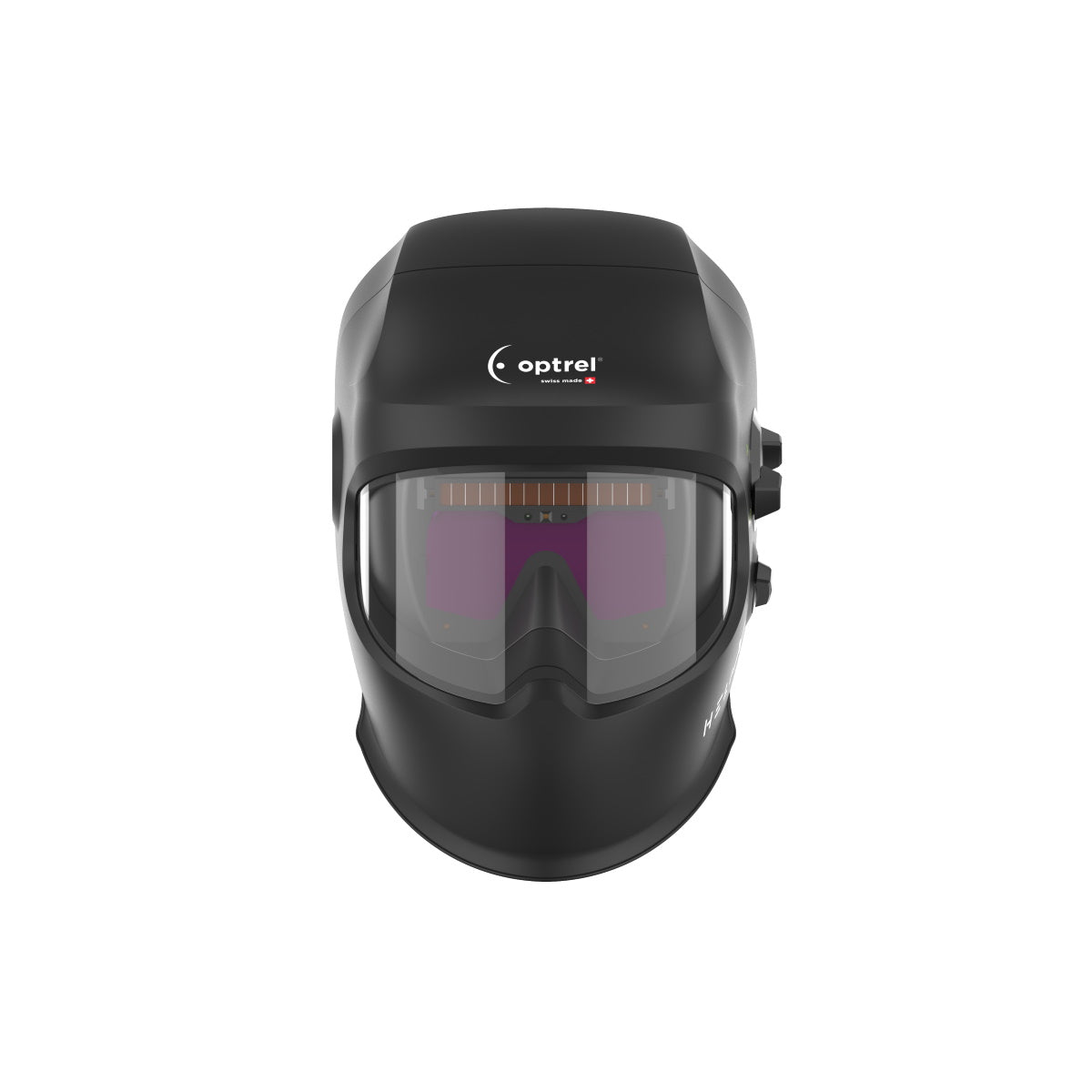

Optrel Helix CLT Welding Helmet (1050.200)
Download Product Spec Sheet
ShadeTronic Technology
The adaptive shade level control automatically adjusts to the perfect shade level. Let me say that again so it sinks in. The Optrel Helix has an autopilot feature that automatically detects the amperage settings you're using and automatically adjusts the shade of the lens so you don't have to stop and manually make the adjustments. Going from grinding to MIG to TIG is no problem and no manual adjustments are needed. The Optrel Helix has an additional sensor that measures arc intensity and will automatically adjust the shade as the arc changes. This is a groundbreaking, unique feature that you will absolutely love.
High Definition Viewing
Similar to your new high definition television, the Helix's special HD lens provides the truest color on the market. Its Class 1 angular dependency allows welders to see the clearest, crispest view possible, enabling you to better concentrate and make your weld with more precision.
Twilight Technology
Unlike other adaptive lenses that rapidly return to light, the Helix uses a twilight feature that restores light more naturally after you're done with your weld, presenting a smooth transition to your eyes. This unique, Optrel-exclusive feature will reduce your eye fatigue and help you work longer and safer.

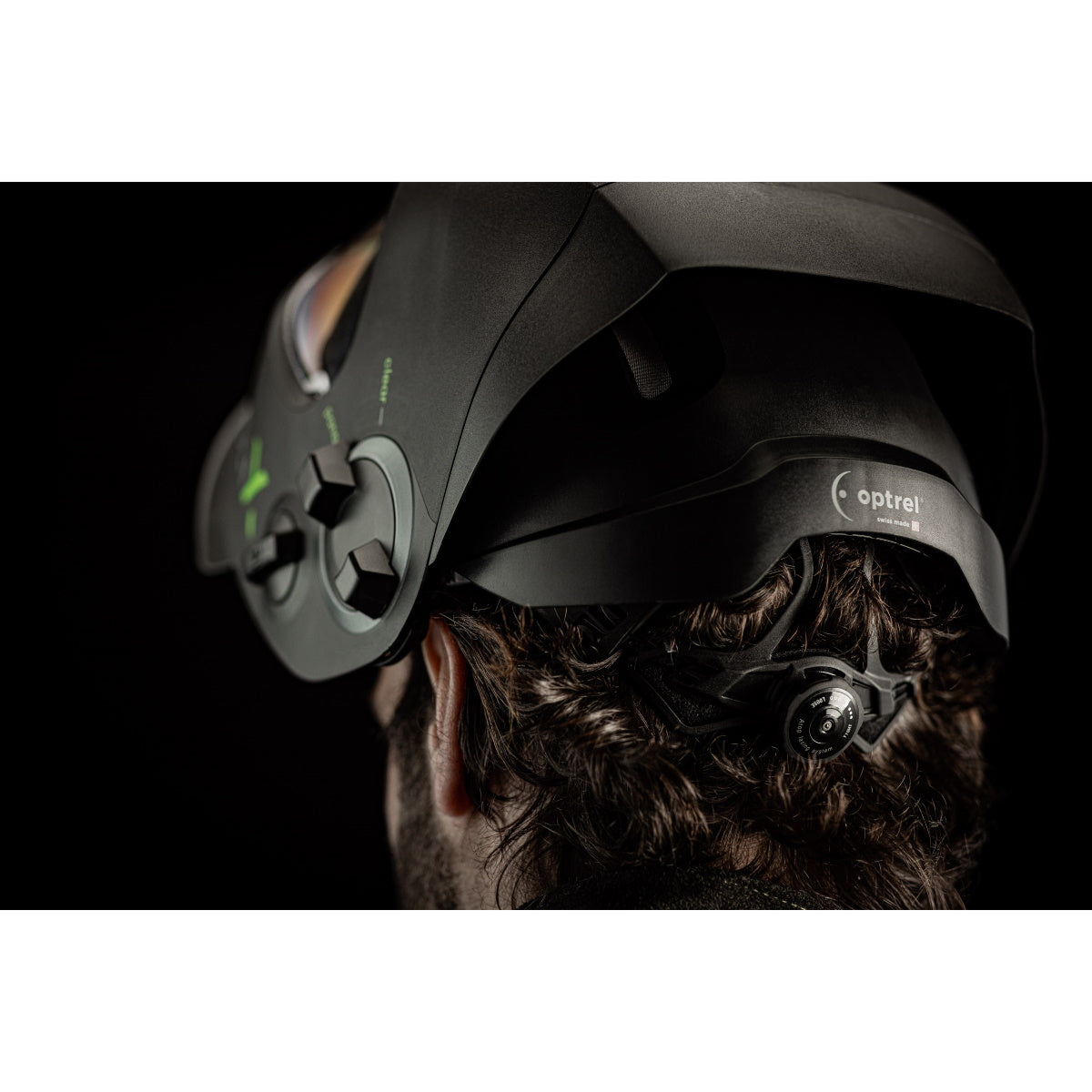

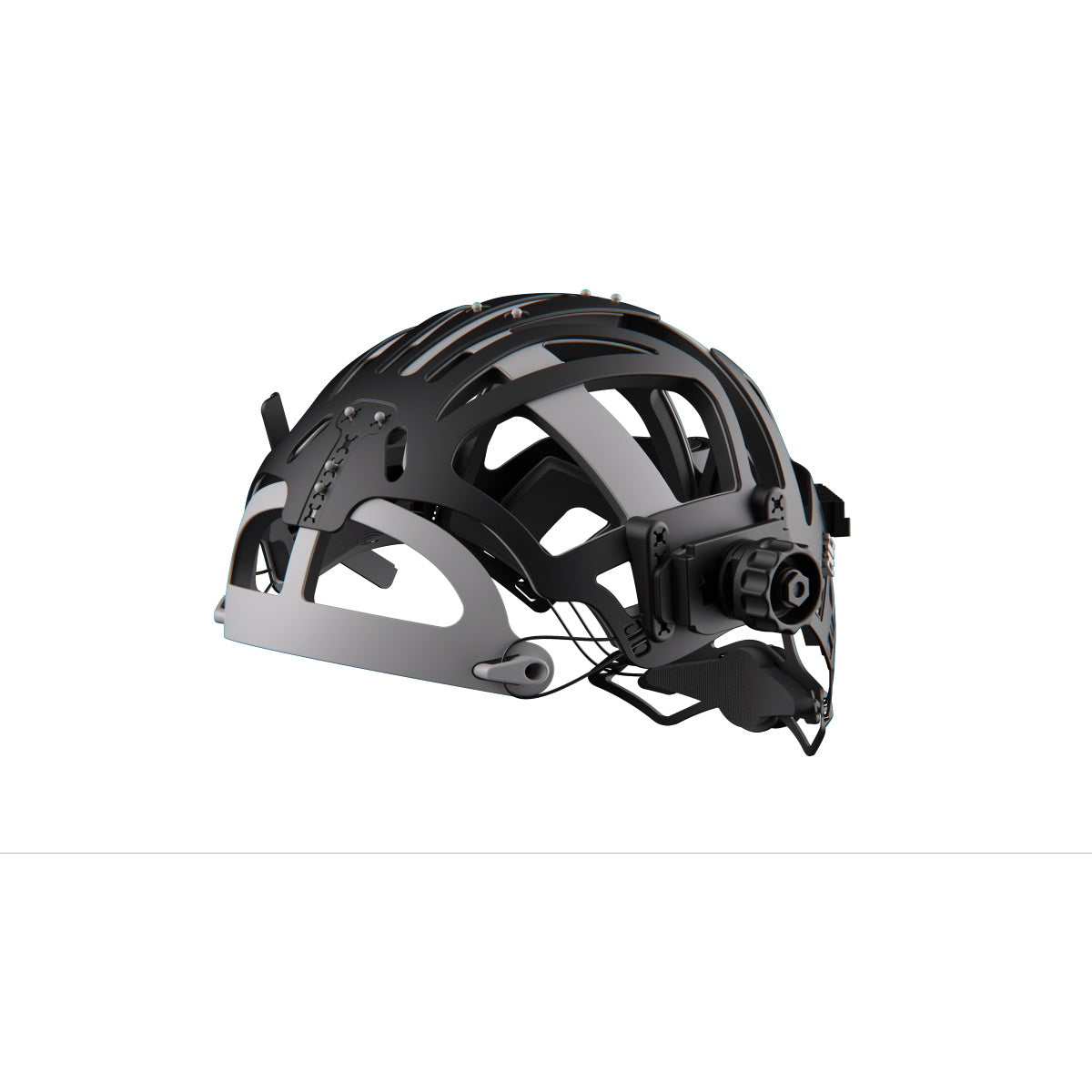

IsoFit Headgear
Optrel has redefined the meaning of "great headgear". The IsoFit is a form-fitting headgear with 3 adjustment points to shape it to the user's head and a tightening rope to make the headgear snug. The IsoFit comes with 4 replaceable/washable foam head pads that are made of Trikot-Textile. This proprietary headgear is also backwards-compatible with all Optrel helmets.
The rechargeable lithium-polymer battery pack lasts hundreds of hours and the lens is recharged utilizing a micro-USB cable.
The upper side adjustment knob moves the helmet shell up and down, allowing a higher or lower perspective while welding.
In Stock and Ready to Ship!.
Features
• Crystal Liquid ADF Technology (CLT)
• Slide Up
• Anti-Glare
• Removable Hardhat
• 2.0 Light State
• True Color View
• 600% Larger Field of View
• External Flip Button for Grind
• 5 Arc Sensors
• Tack Welding Setting
• IsoFit Headgear
• Approved for Overhead Welding
Quick Specs
• Weight - 22.5 oz
• Shade range - 7-12 ShadeTronic
• 2 Year warranty (3 Year Warranty after registering product)
Includes
• Helix CLT Helmet
• Optrel Black Mesh Storage Bag
• (1) Spare Front Cover Lens
• Micro-USB Charging Cable
• User Manual
| MPN: | OPT1050.200 |
|---|---|
| UPC: | 7640429871145 |
| Warranty | From the date of purchase: 2 years for manufacturing and material defects, 6 months for the battery |
| Arc Sensors | Five sensors |
| Delay Control | light to dark: 0.090 ms at room temperature 0.070 ms at 55°C dark to light: 0.1 s to 2.0 s (with FadeTronic) |
| Digital | ShadeTronic inactive: protection level 2.0 active, manual: protection levels 7-12 Automatic protection level regulation over the protection level range 4<12M with individual calibration option of ± 2. |
| Grind Mode | Optical class: 1 Stray light class: 1 Homogeneity class: 1 Angular dependence class: 2 |
| Modes | ShadeTronic inactive: protection level 2.0 active, manual: protection levels 7-12 Automatic protection level regulation over the protection level range 4<12M with individual calibration option of ± 2. |
| Reaction Time | light to dark: 0.090 ms at room temperature 0.070 ms at 55°C dark to light: 0.1 s to 2.0 s (with FadeTronic) |
| Sensitivity Control | Infinitely adjustable, new with “Super High” sensitivity |
| Viewing Field | Depending on headgear adjustment, 2.3 to 6.3 times the field of view of a 100 x 50 mm industry standard anti-glare cassette |
Download Product Spec Sheet
There’s work that needs to be done.
And some workplaces are just rougher than others.
Conditions can be challenging – so we made it simple:
You do the heavy work – we make it feel easy.
With the all new Optrel Helix -
A helmet made for everyone who doesn’t like to compromise.
Full protection and full versatility – in its lightest form.

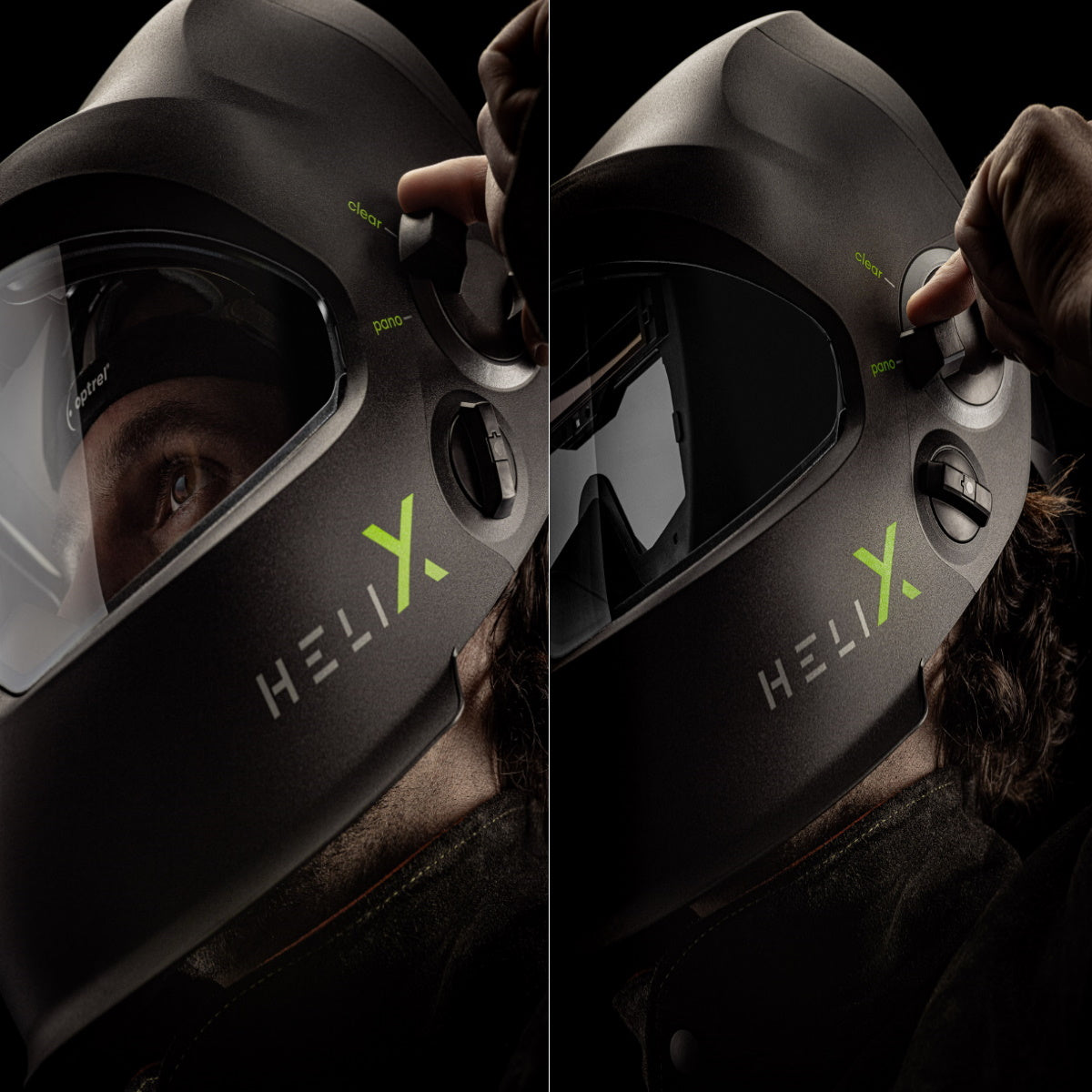

With our innovative slide up technology, you can adjust to the realities of your job within seconds.
The Helix remains incomparably light and perfectly balanced - eliminating the pain causing effects of ordinary flip up helmets.
No more tunnel view – due to our “Nose Cutout Technology”.
Have everything in sight while working – with a field of view six times larger compared to other products.
All that makes the Helix the perfect companion for welding, grinding and cutting in heavy steel construction.
For all who know what real heat feels like - and still want to keep a cool head.
Even after hours of work.
Fully compatible with “Swiss Air“ – the best solution for, clean, fresh air – without any compromise in terms of mobility and communication.
So you can focus on your work – and let us take care of the rest.
The Optrel Helix.
Hard work never felt so easy
