Thermal Dynamics Cutmaster 50+ Plasma Cutter 120/240V (1-5000-1)

The Thermal Dynamics Cutmaster 50+ Plasma Cutter (1-5000-1) features a rugged, weather-proof, three-handle case that better protects the unit, especially during transportation in a job box or back of a work truck. The handles make it easier to move the unit in tight quarters, as well as help organize the cables when moving it. The Cutmaster 50+ has a rated cut of 1" and packs a 50% Duty Cycle at 50 Amp output (using 240V power). Automatic voltage input detection from 110-240V means you plug it in and the machine will automatically set the max output; 25 amps for 110 and 50 amps for 200-240V. It's that easy!

Features
Portable, lightweight (39 lbs), all weather housing
4.3 Inch LCD Display with glove friendly adjustment knob
2T/4T, safety trigger lock, and double tap trigger to conserve air
Normal/Grate cutting modes
Post-cut air purge to extend consumable life
Pre-installed CPC port

The Cutmaster 50+ comes with the proven SL60 1Torch with 16-ft. torch lead, which is up to 4 ft. longer than competitive torches. Because it uses Thermal Dynamic’s ATC torch connection (standard on all Cutmaster units), users can connect an additional 25-ft or 50-ft. length of torch lead. The work cable uses a standard 25mm Dinse connection, while the robust work clamp creates a strong electrical connection.

The SL60 1Torch comes with the Cutmaster Black Series electrodes, which extend operating life by up to 60 percent. As a result, they lower cutting cost and downtime, as well as maintain cut performance over a longer time period.

ESAB backs the Cutmaster 50+ with a 3-year warranty on the power supply and a 1-year warranty on the 1Torch.

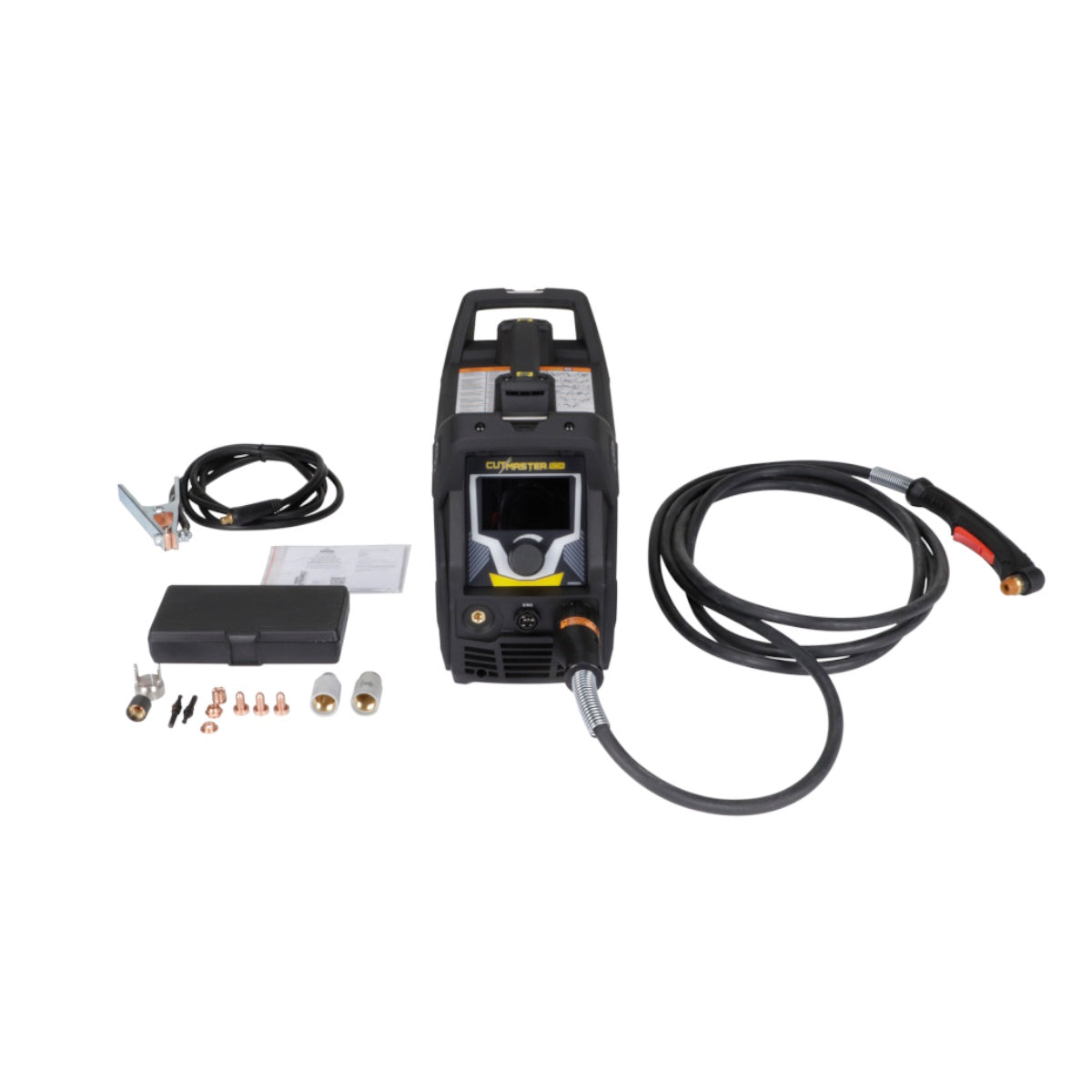

Comes with:

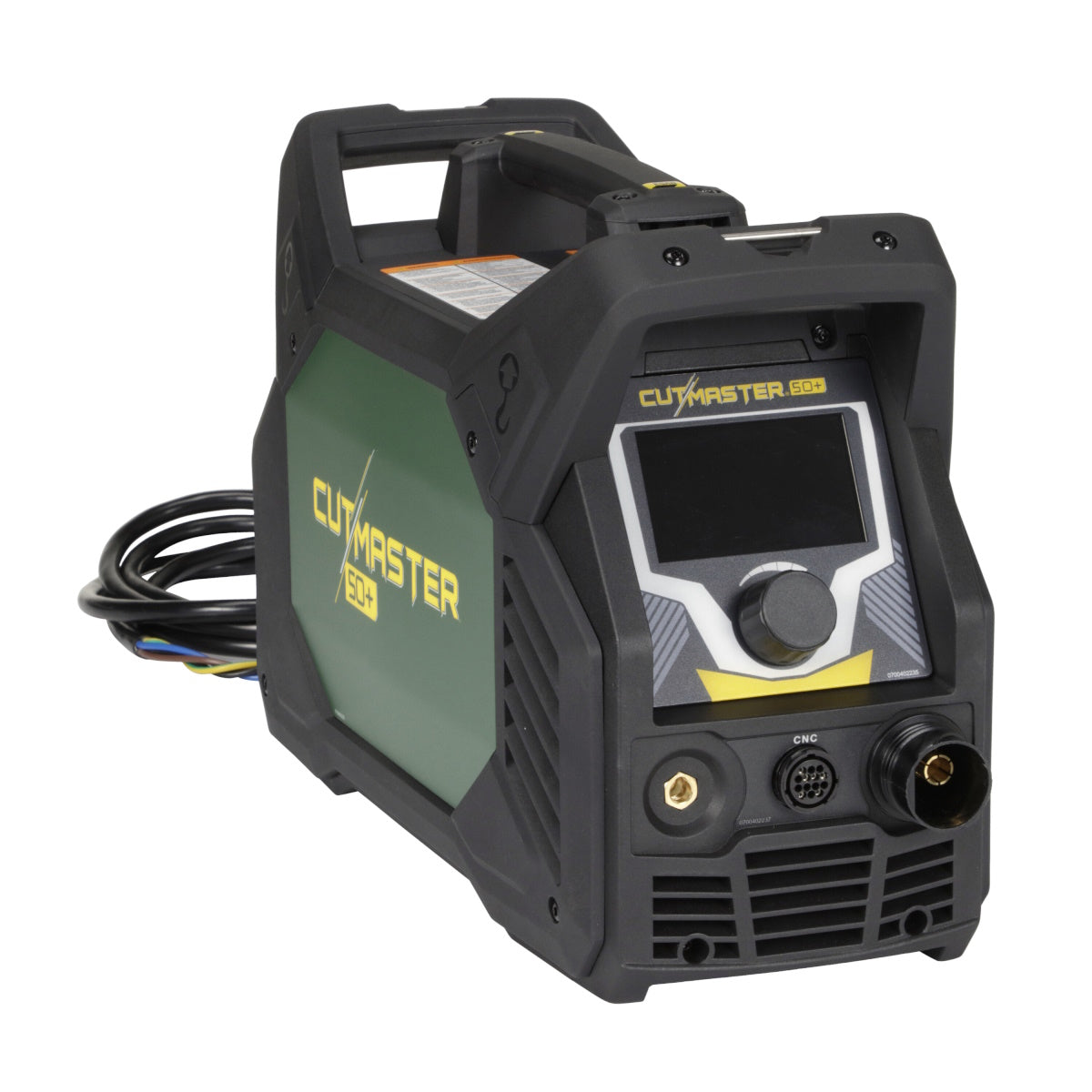

• Cutmaster 50+ Power Supply (10 ft Power Cord w/220V NEMA 6-50P Plug)
• 16 Ft SL60 75 degree torch with lead
• Work lead with ground clamp
• Input power adapter for 240V to 120V
• 1/4 in. NPT air fitting with quick connect
• Operating manual
• Spare parts kit
• 2 Black Series Electrodes (9-8214)
• 2 40A Tips (9-8208)
• 1 Start Cartridge (9-8213)
• 1 Shield Cap (9-8235)
• 1 Shield Cup (9-8237)
• 1 Shield Cup (9-8218)
• 1 Shield Deflector (9-8243)
• 1 Standoff Guide
• 1 30A Drag Tip (9-8206)

MPN: ESB1-5000-1

UPC: 662067334001

Download Product Spec Sheet
