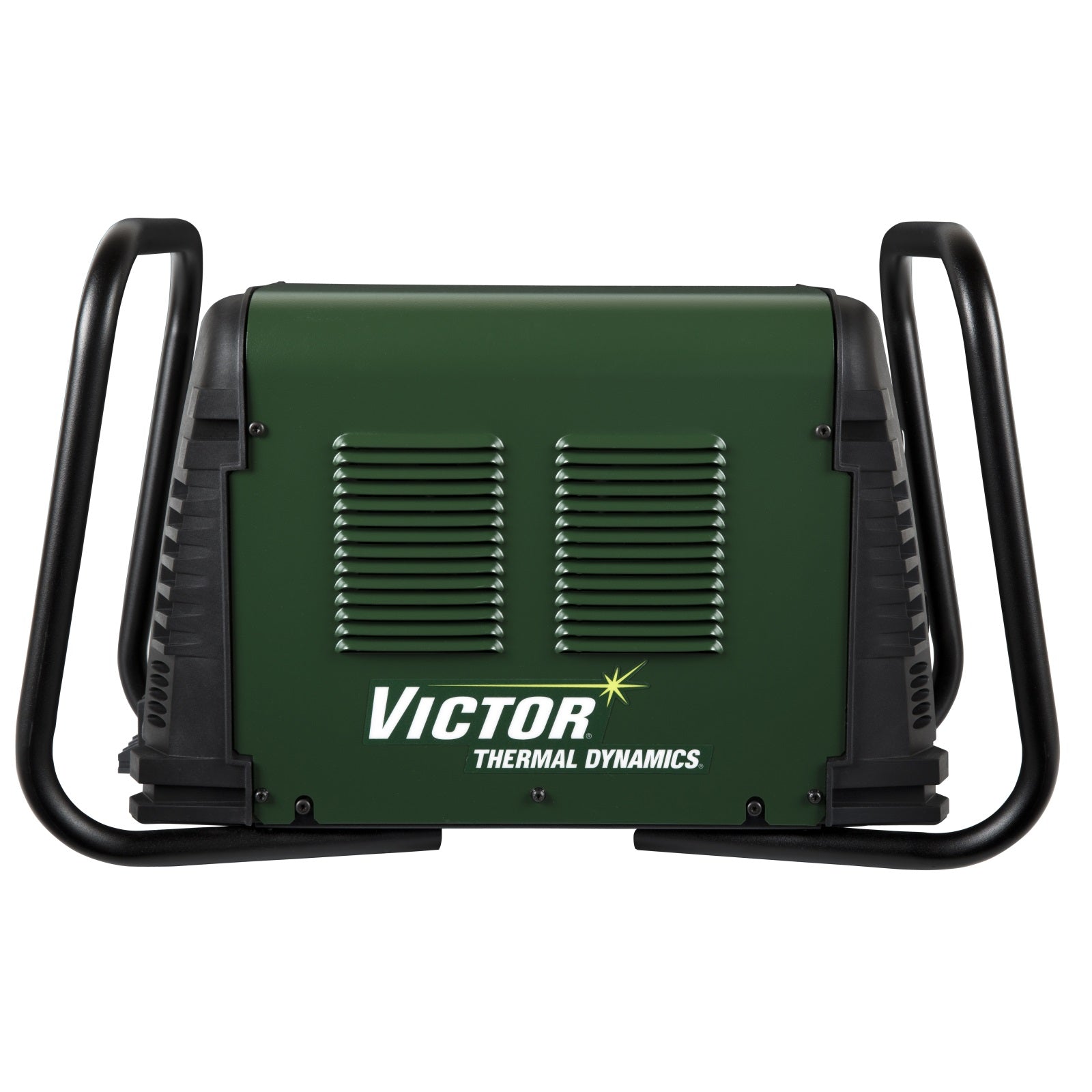

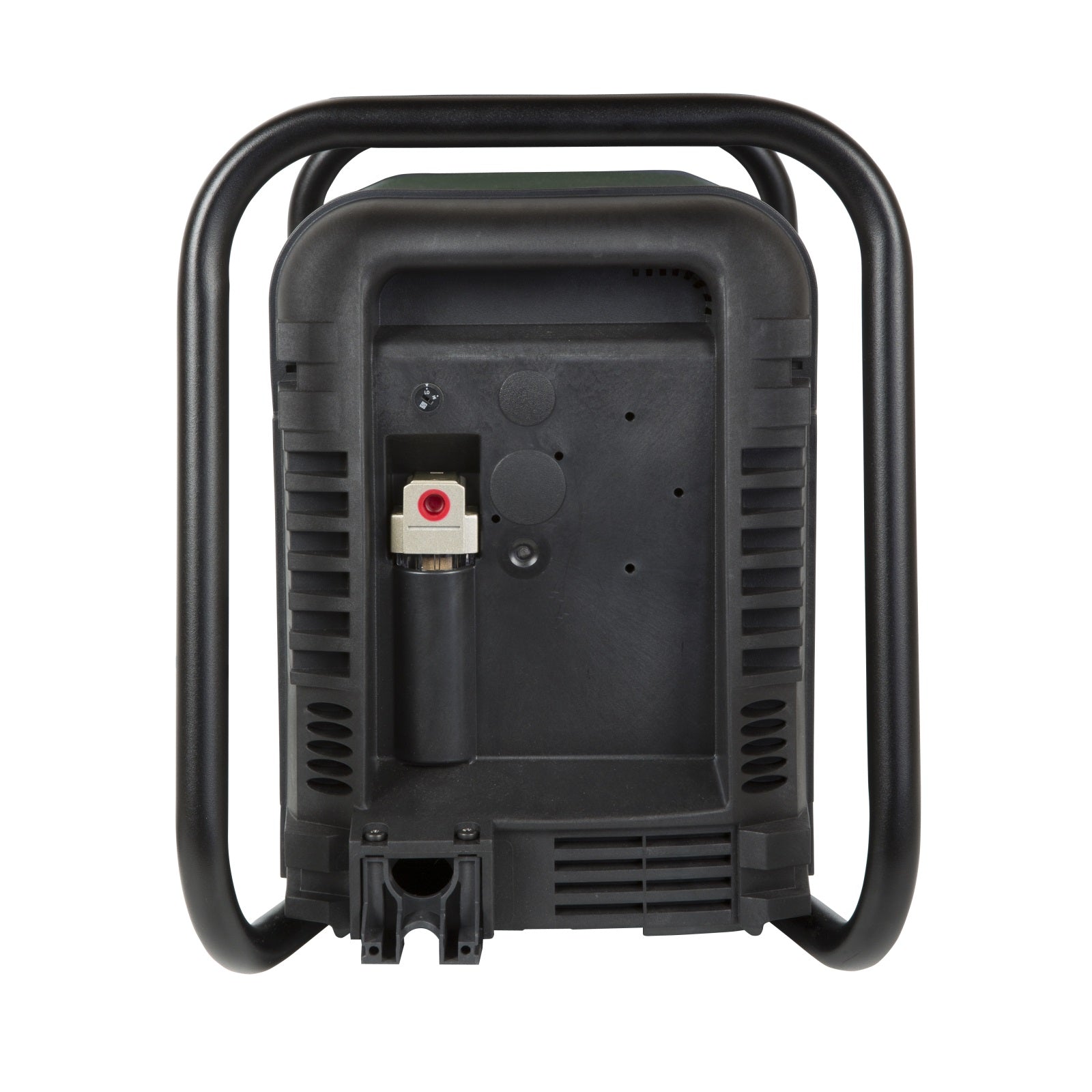

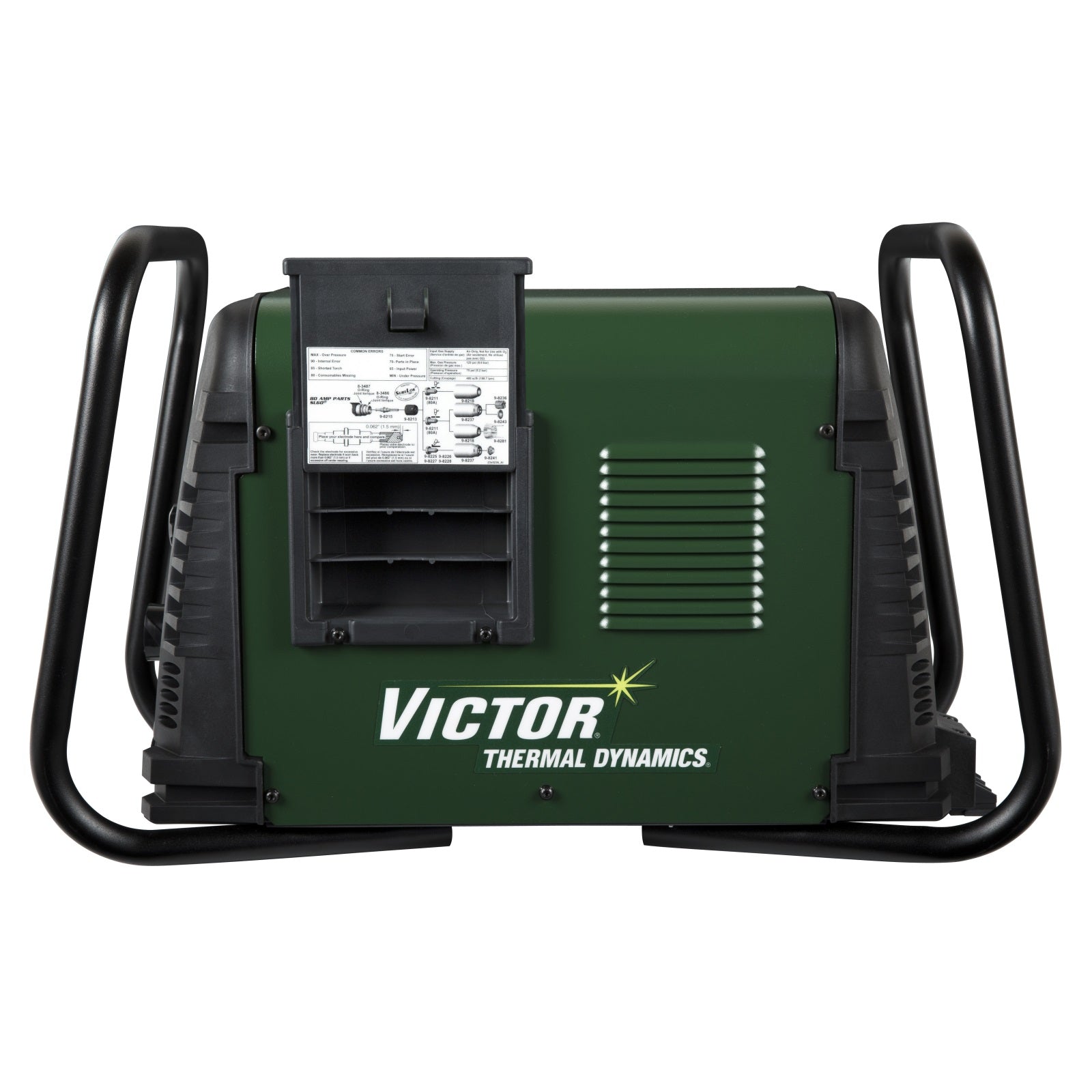

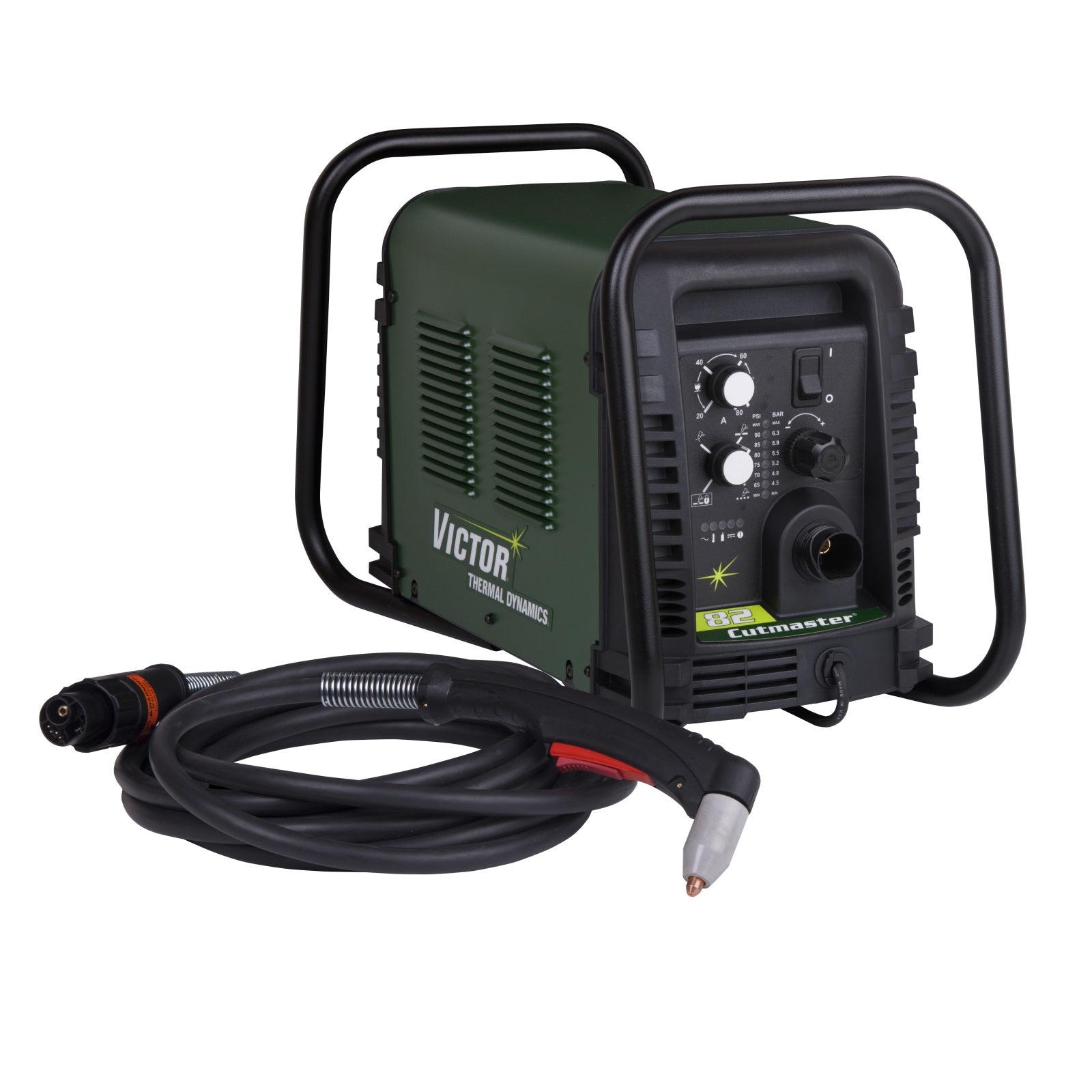

Thermal Dynamics Cutmaster 82 Plasma Cutter (1-1130-1)

5.00 / 5 stars with 2 reviews
Lead Time: IN STOCK! Ships Same/Next Business Day
$4,299.00 $3,499.00
+ Free Shipping! (Save $800.00)
At 43 lbs, its weight is the only things that's lightweight about this one.

warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Thermal Dynamics Cutmaster 82 Plasma System (1-1130-1) packs a whole lot of punch while only weighing 43 lbs. That kind of portable power is rare in the market place. The Cutmaster series has been designed with the idea that recommended cut capacity should also be the true cut capacity. This eliminates the need to "buy up" or feeling like you have to buy a machine more powerful than you need. That means, when Thermal Dynamics says a Cutmaster will cut one-half inch material, it will cut it all day, every day; no exceptions. The Cutmaster 82 will slice through 3/4 inch material all day, with a maximum of 1 1/2 inch.

Included:
• TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability.
• Color Coded LED’s indicate pressure status and setup errors.
• All user controls are conveniently located on the front panel
• Lightweight design improves portability (Reduced nearly 50%).
• Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals.
• Multiple Torch Capability (Hand, Mechanized, Automation)
• The Industry’s only 60 Amp Drag Tip
• Convenient storage compartment for spare and consumable parts
• Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
• Power Supply
• 20 ft. (6.1m) Lead
• 1Torch SL60, 75 deg. Head
• 10 ft. (3.0m) Input Power Cable 1Ph without Plug,
• Work Cable and Clamp
• Spare Parts Kit
• Operating Manual

Features and benefits:

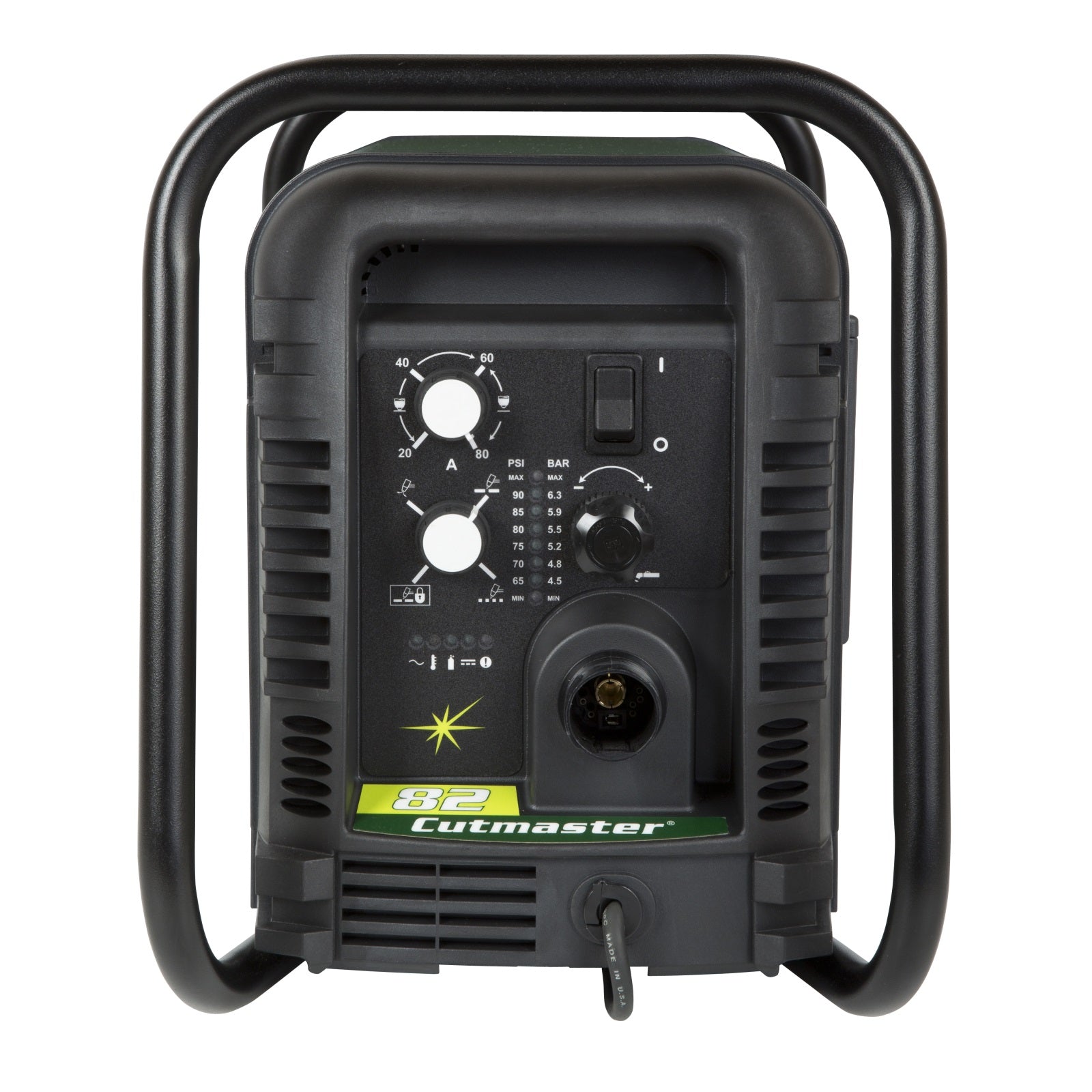

• Front Panel LEDs indicate status conditions for maximum efficiency.
• Storage compartment for convenient access to spare parts and consumables.
• Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch.
• True Guard roll bar provides easy transportation and protection for unmatched durability.
• Multi-voltage allows operation from 208 to 480 Volts in a single power supply.
• Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals.
• Lighter weight design for maximum portability
More Information
Brand Thermal Dynamics
SKU ITHE00000031
MPN ESB1-1130-1
Mfgs MPN 1-1130-1
UPC 699488001229
Prop65 Yes
Manufacturer's Warranty 4 Years
Max Amperage Output 80
Usage Industrial
Input Voltage 208
Duty Cycle 100%
Duty Cycle 100% at 55A
Rated Cut 3/4 inch
Rated Sever Cut 1 1/2 inch
Portability 43 lbs
Phase Both
Skill Level Weekend Warrior, Career Welder
Process Plasma
Discontinued Product No
