Tweco Fabricator 211i MIG, TIG, Stick Welder Pkg. (W1004201)

DESCRIPTION

The Tweco Fabricator 3-in-1 211I MP Integrated Welding Package (W1004201) features MIG, Stick, and TIG welding capabilities; all in a portable package. It's the ultimate compact multiprocess welding system that can deliver from 10 to 210 AMPS of welding output power from 230 Volts input or 150 Amps from 115 VAC. Power like that is precisely how work gets done! Weighing less than 58 pounds it's the ideal choice for light to medium fabrication of steel, stainless steel and aluminum (MIG) across a wide range of user applications.

MIG:
• Infinite Voltage Control with optimized starting performance.
• Inductance Control for arc stability and spatter control.
• Tweco MIG Gun w/12 ft. cable and industry standard #4 connection.
• Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
• 4" or 8" Spool capacity allows easy installation of wire spool sizes * Spool Gun ready.
• Adjustable Burnback Control.

STICK:
• Adjustable Arc Force Control for optimum STICK electrode performance.
• Built in Hot Start for easy arc starting.

TIG:
• Lift TIG Start: Provides TIG arc starting without use of high frequency.
• Downslope: Eliminates the crater that can form at the completion of a weld.

Other Features:
• Digital Meters: Voltage and Amperage; Preview and Hold capability.
• Excellent Portability: Lightweight, less than 33 lbs. includes shoulder strap.
• Comprehensive Setup Chart: Weld set up guide for optimum welding performance over a wide range of materials and shielding gases.
• Trigger Control: 4T (Latch) eliminates operator fatigue.
• Remote Receptacle: Enables connection of remote control devices and Spool Gun.
• Quick Change Polarity: Simple quick change polarity (no tools required) from the front of the power source.
• Overload Protection: Shuts down the power source to protect the internal electrical components from overheating.
• IP23S: Suitable for outdoor use.
• Intelligent Fan Control: Operates when welding commences to cool components & reduce airborne contaminants pulled through the power source.

Includes:
• Fabricator 211i Power Supply
• 12 ft. Tweco 220 amp MIG Gun
• Contact Tips, .023", .030", .035", .045"
• Victor Argon Regulator/Gauge & 10 ft. hose
• Tweco WeldSkill 200 Amp electrode holder with 13 ft. lead
• Tweco WeldSkill 200 Amp ground clamp with 10 ft. lead
• Drive Rolls, .023"-.030" V Groove, .023"-.035" V Groove, .030"-.035" for fluxcored wire
• E6013 General purpose electrodes
• Operator manual & CD
• 9 ft. Power Cord and NEMA 6-50P 230V AC Plug
• 230V-115V Adapter Plug & Cable

SPECS

ACCESSORIES

CUSTOMERS ALSO BOUGHT:

Tweco VTS Velocity Contact Tips (Pkg/10)
As low as $13.99 was $15.20
Tweco VNS Mig Nozzles Pkg/2 (VNS-37)(12201206)

$25.62 $21.99
Tweco VNS Mig Nozzles Pkg/2 (VNS-50)(12201201)

$25.62 $22.99

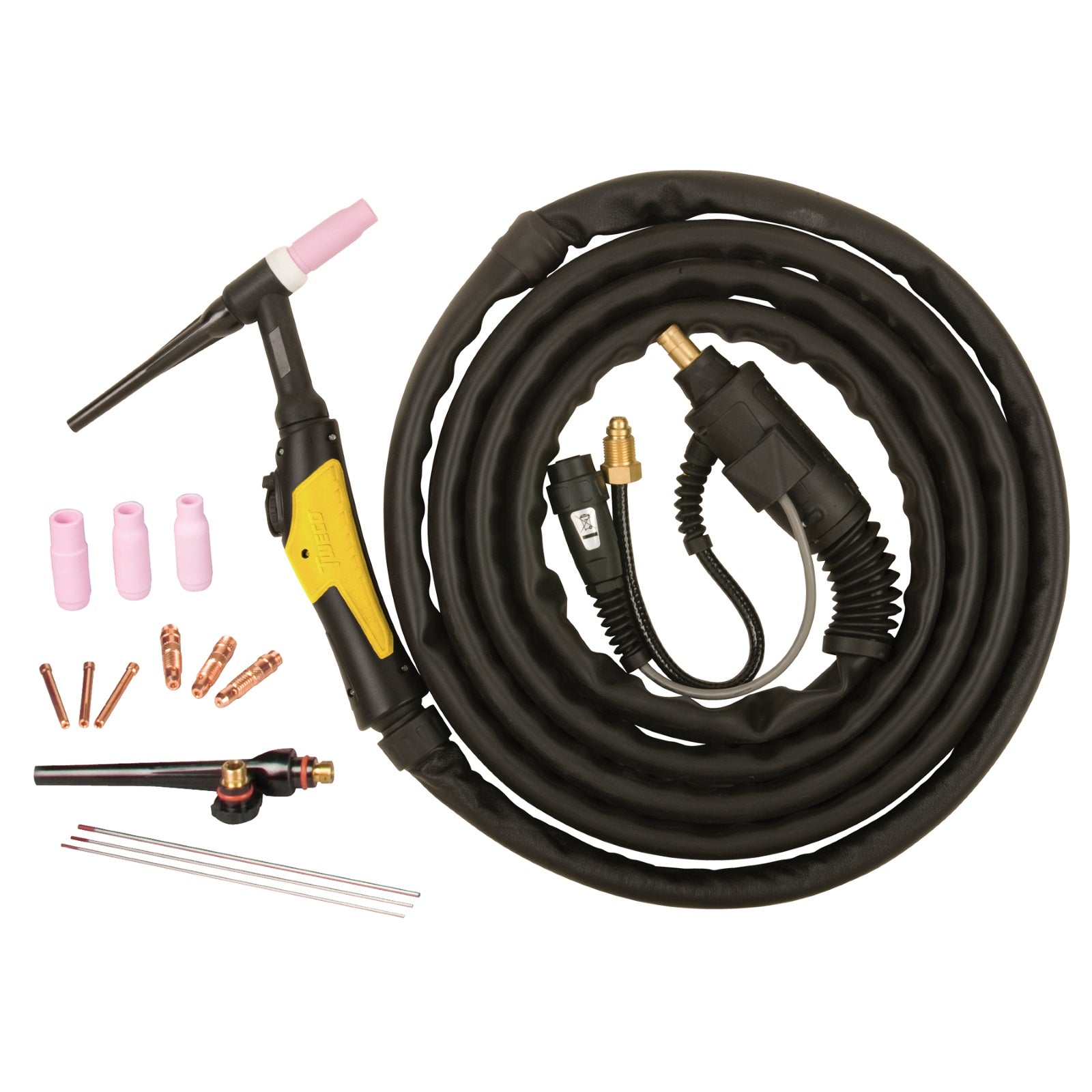

Thermal Arc TIG Torch Option For Fabricator 211i (W4014603)

$260.76 $245.00
Thermal Arc Foot Amp Control For Fabricator 141i, 181i, 211i, or 252i Am165-200 (600285)

$337.90 $315.00
Tweco Spool Gun For Fabricator 181i ,211i and Esab Rebel 215 (1027-1397)

$568.17 $475.00

ADDT'L INFO

More Information
Brand	Tweco
SKU	ITHE00000080
MPN	THAW1004201
Mfgs MPN	W1004201
UPC	822635022543
Prop65	Yes
Material	Mild Steel, Stainless Steel
Process	Flux-Cored, MIG, Stick, TIG
Max Amperage Output	180
Usage	Light Industrial
Phase	Single Phase
Manufacturer's Warranty	3 Years
Polarity	DC
Duty Cycle	30%
Duty Cycle	45% at 110A, 20% at 210A
Portability	32.2 lbs
Skill Level	Weekend Warrior, Career Welder
Input Voltage	115, 208, 230
Discontinued Product	No

REVIEWS AND Q&A

Great Home/Farm welder Bruce 5 I was shopping for a new welder and about to buy a miller 211 when I read the spec's on the 211i and felt it was a better machine for what I needed. The arc from this machine is so soft and smooth in SMAW mode even at 150amps I've welded with Thunderbolt 225 and 304 XMT and like the arc from this machine much more and the duty cycle is higher than other machines costing more. Made me a better welder right from the first rod, easy to use and set up. the MIG welding is smooth too, I've only tried GMAW so far not FCAW but don't think I'll ever need to weld flux core, this machine is so portable too, the 110v feature is nice I can weld up to 1/4" anywhere. this welder saved me a lot of money only having to buy 1 machine and not 2 separate welders for MIG and stick, the TIG is a bonus, that I never thought I would learn but with the TIG torch I learned it is not hard at all. Might buy the pedal next for convenience. For home shop, farm and hobby this is the best choice and will do everything the average user needs around the shop.

My husband just said... Ann 4 My husband just said it's a great welder (and he welds for a living). He has this at home and uses it on our things and says he would definitely recommend it and buy a new one if ever need be. Oh, he also says it's a reputable company or he wouldn't have bought it. They have a few items at his work from this company.

Good for the price Rbzmountain 3 It's a decent welder. I'm a long time Miller user (AWS and Mil-Std certified for 15+ yrs) and thought I would try this one out for the price and capabilities of an all in one machine. I think the Miller 211 auto-set has better feed and arc stability than this one. I find myself making minor adjustments to this machine as the duration of my welding increases throughout the day. The front panel is fragile, mine broke during shipment and this unit is not meant for transport by itself (no handle and the door is a floating hinge system with no actual hinges), so build or buy a cart. The side door is a little flimsy and the consumables (tips, cups, eyes) are not the same as a standard Lincoln or Miller. Bottom line, it's decent for the price, but not as user friendly and durable as Big Blue (Miller).

A+ Grizz 5 Great welder... Great shipping turn around!!

tweco 211i Jacob b. 5 great machine definitely worth the money, runs all three processes very well. mig is great the only things i didnt like were the ground lead and the stinger

Works great Sbarn 5 Welder arrived this afternoon, had it up and running in 15 min. Beads on 1/8" steel look good and settings were easy to dial in. Ground clamp is a bit cheap but worked fine on dirty, mill scaled Corten plate. Included regulator is nice and sturdy and large valve knob is nice and easy to set precisely. Stinger and mig gun are well made. I had my own tig torches so didn't buy the tig kit. Arc is very stable but I have a dedicated ac/dc tig for shop work, tig will be used off site rarely but it's nice to have options. IOC is my new go to for supplies and equipment. My LWS is open 9-5 M-F but I'm usually on a job site during that time which makes browsing difficult. Shipping is either free or very cheap from IOC my order was here quickly and in perfect condition. I will be recommending them to other contractors.

great welder Abigail P. 5 I've been welding for about 12 years now and this is probably one of the best welders I have used yet I would recommend it for anybody

Great mechine to begin with Abraham G. 5 Great mechine to begin with for practacing at the house

Tweco 211i Todd H. 5 I ordered three excellently priced Tweco welders and received them in less than a week. I am very pleased with my order and the expediency at which it was processed and shipped.

Very happy with the tweco 211i Derek Y. 5 IOC took care and shipped quickly, and the product is excellent as well.

Great Welder - Highly Recommend Acil M. 5 Great Welder - Highly Recommend

Tweco Fabricator 211i Jon B. 5 Bought this a month ago and quite impressed. Had it running off of my generator and welds just as good on 120v power as my buddy's Linciln 180 which is 220v. Also ran the mig on 220v as well and has plenty of power. Virtually no spatter, wets out very nice and smooth. This doesn't produce that "caterpillar" weld that is typical with most welders running on 120v. Haven't tried the stick yet, but I'm sure after witnessing the power this puts out in mig mode, it will be just as impressive. I have been welding for 20+ years and do it for a living. This exactly what I needed for side work. Easily portable and stout performance. Truly couldn't be happier!

Tweco 211 Fab welding Machine Randy B. 5 Great welding machine. Used 120V to weld SMAW 1/8" 6011 and to my surprise the process worked extremely well. Have not used GTAW or FCAW yet looking forward to these processes.Professor438 AWS CWI

Tweco Fabricator 211I Guest 5 My wife bought the welder for me as a early Christmas present. I have been looking at it for some time. I have many larger welders. Mig and tig stand alone units. I own a fabrication and engineering business for race vehicle fabrication. This was to be a unit used for more probability then the other units. Meaning we use it for home, or it comes to races for pit repairs and so on. So far I absolutely love this welder. Sucks the contact tips are the industry standard. So order extras. But the gun feels good and performs great. The welder is super stable when ran from a generator. On both 110vac or 220vac. Can't say enough good things about this unit. Smooth stable and ease of adjustments are all great. The fact it can fit a full size 44lbs roll of wire is great too. But it's too big for most of the harbor freight carts. This welder will be getting a lot of use in our garage as we put together our next tube chassis prerunner and our family tube chassis crawler. We used it this past weekend at the inlaws place in Long Beach ca to weld up a sliding gate and mounts for the motor. Again. Love this welder. Can't say enough good about it. I'd choose this one over the Lincoln multiprocess welder any day. Haven't used th tig feature but the arc and mig are great. Once my foot control comes in I'll be testing out the tig set up on our projects.

211i - AMAZING! Ben G. 5 Fantastic little machine! Very impressed with the smooth arc characteristics. Lots more power than you would imagine. It will even get into spray transfer on 220 with 98/02. I'm a professional weldor and have extensive time on machines many times more powerful, but I must say, there isn't much this machine won't do short of welding bridges to other bridges. Infinite settings are great and very precise. I would recommend this machine to anyone from a first timer looking for a machine they can grow into, to a pro looking to supplement their shop of home with serious capability.

Excellent welder Guest 5 Excellent welder

Very satisfied Guest 5 I'm very pleased it welds like a dream.

Outstanding in all regards, and Richard Z. 5 Outstanding in all regards, and in particular service. Thank you

Great Guest 5 Awesome machine great price
