Hypertherm Powermax45 XP Plasma w/CPC 25ft Mech and Hand Torches (088123)

5.00 / 5 stars with 6 reviews
Lead Time: IN STOCK! Ships Same/Next Business Day
$3,421.00 $3,300.00
+ Free Shipping! (Save $121.00)
warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Hypertherm's best selling system is getting an overhaul. The new Powermax45 XP system is designed to give the user more precision, performance, and productivity. The Powermax45 XP is the most versatile and portable 5/8" (16 mm) machine on the market, with a broad set of application capabilities that make it a truly multi-purpose tool. This new model comes with the Duramax Lock Torch. The Duramax Lock torches utilize the same consumable platform as the Duramax torch series for the Powermax65/85/105 systems. The Powermax45 XP cuts or gouges faster, easier and better than any other product in its class. Hypertherm's Smart Sense technology ensures that air pressure is always set correctly.

Quick Specs
• Cutting Capacity: 5/8" recommended | 1-1/8" severance
• Weight: 31 lbs (with torch)
• Dimensions: 17.4"D x 6.8"W x 14.1"H
• Input Voltages: 200-240 V, 1-PH, 50/60 Hz
• Input Current: 200/240V - 39/32A
• Output Current: 20-45A
• Duty Cycle: 50% @ 45A, 100% @ 32A
• Recommended Air Flow: Cutting - 90 psi (5.9 bar) | Gouging - 60 psi (4.1 bar)
• Input Power Cable Length: 10'
• Engine Drive Requirement: 10 kW for full 45A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch

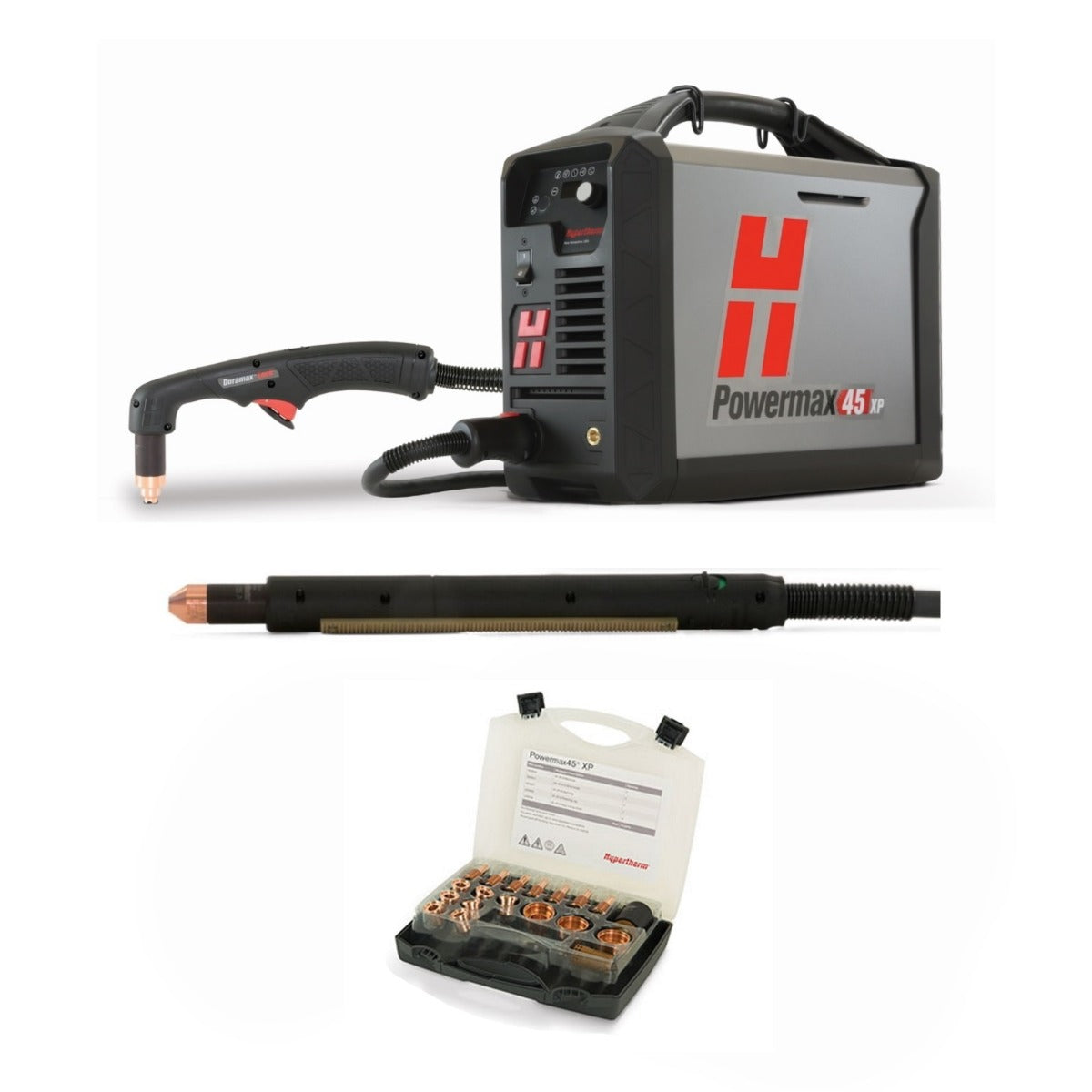

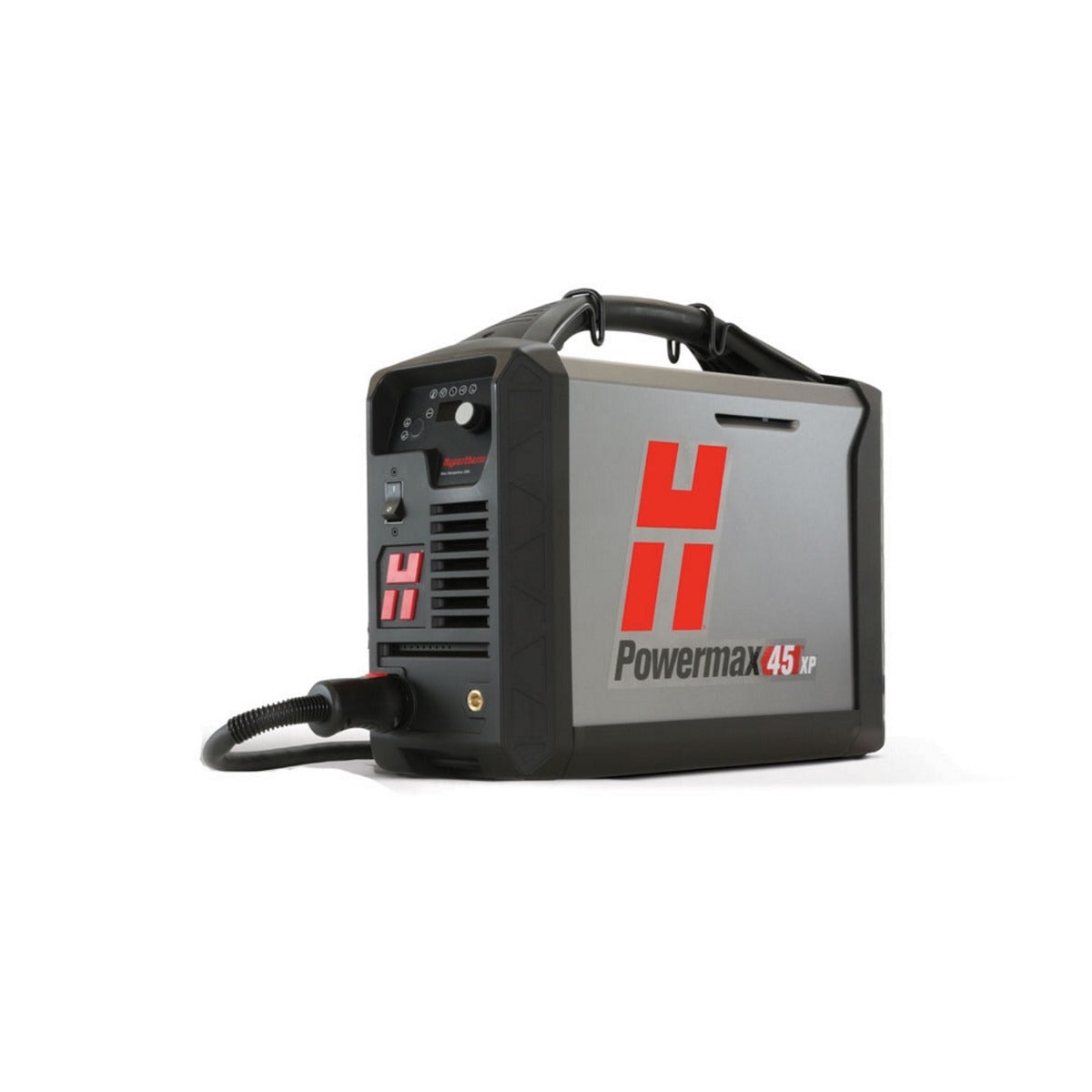

• Power Supply with CPC
• Duramax Lock 180° Mechanized torch with 25' lead & 20' work clamp
• Duramax Lock 75° hand torch with 20' lead
• Handheld Consumables Kit (851510)
• 2 Electrodes, 2 45A Nozzles, 45A Shield, Gouging Shield, Gouging Nozzle, Retaining Cap, Swirl Ring
• Operator & Safety Manuals
More Information
Brand Hypertherm
SKU IHYP20170023
MPN HYP088123_851510
Mfgs MPN 088123
UPC 662310367862
Prop65 Yes
Manufacturer's Warranty 3 Years
Max Amperage Output 45 Amps
Usage Home/Hobby, Industrial, Light Industrial
Input Voltage 208, 220, 230, 240
Duty Cycle 100%
Duty Cycle 100% @ 32A, 50% @ 45A
Rated Cut 5/8"
Rated Sever Cut 1-1/8"
Portability 31
Phase Single Phase
Skill Level Beginner, Weekend Warrior, Career Welder
Process Plasma
Discontinued Product No
Looks great 5 Hypertherm 45xp sofar so awesome!
Hypertherm 45xp is a leap beyond my Miller 375 Extreme 5 I purchased this system for a Plasmacam Go Torch CNC setup. In the end this Mech torch ended up not being the best fit for my needs because it is too tall. There is a little known mini machine torch that Hypertherm sells which is a MUCH better fit for the Gotorch.
Excellent machine!! 5 Excellent machine!!
Az sheetmetal llc 5 Very good plasma cutting we like it thanks IOC
cnc plasma 5 so far so good
