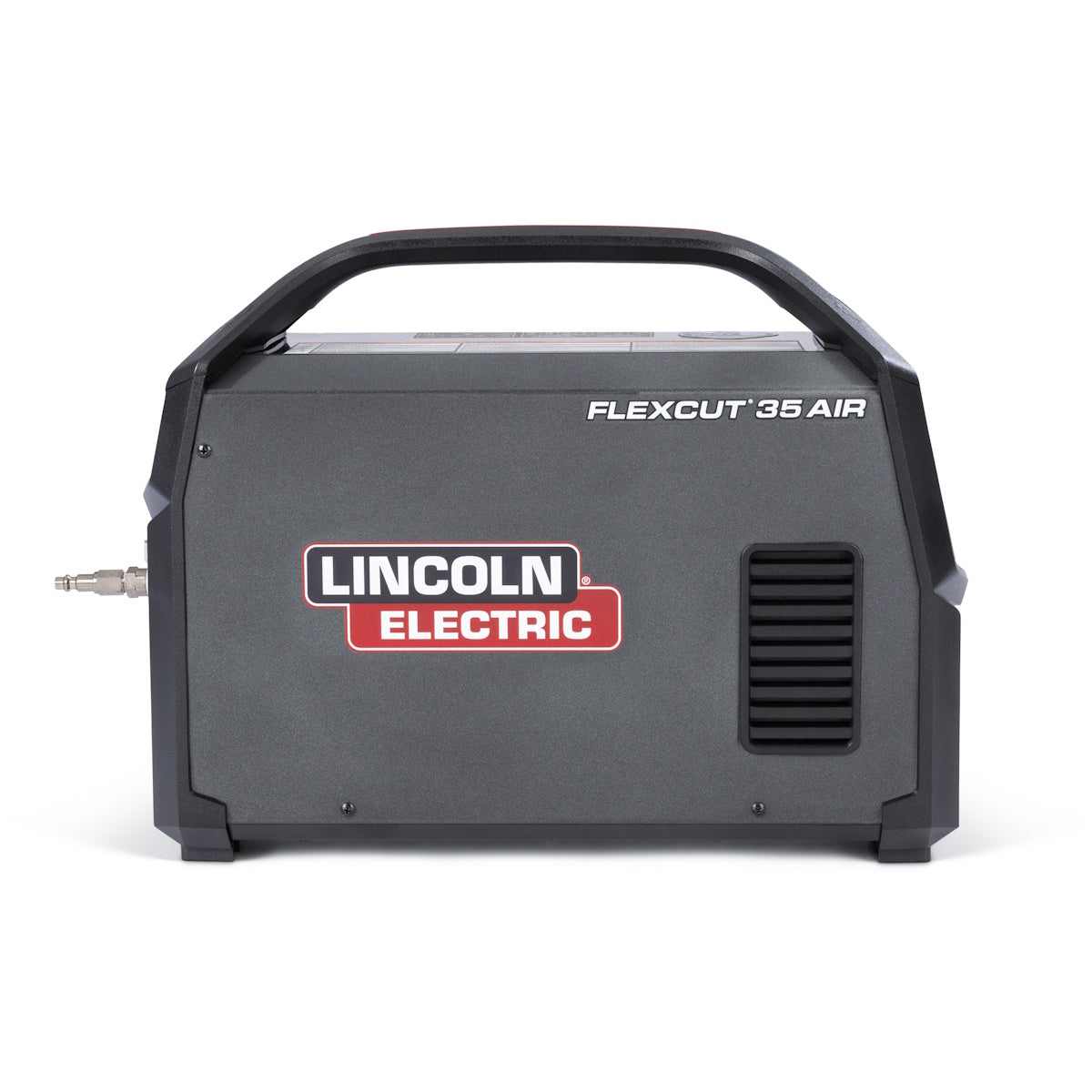

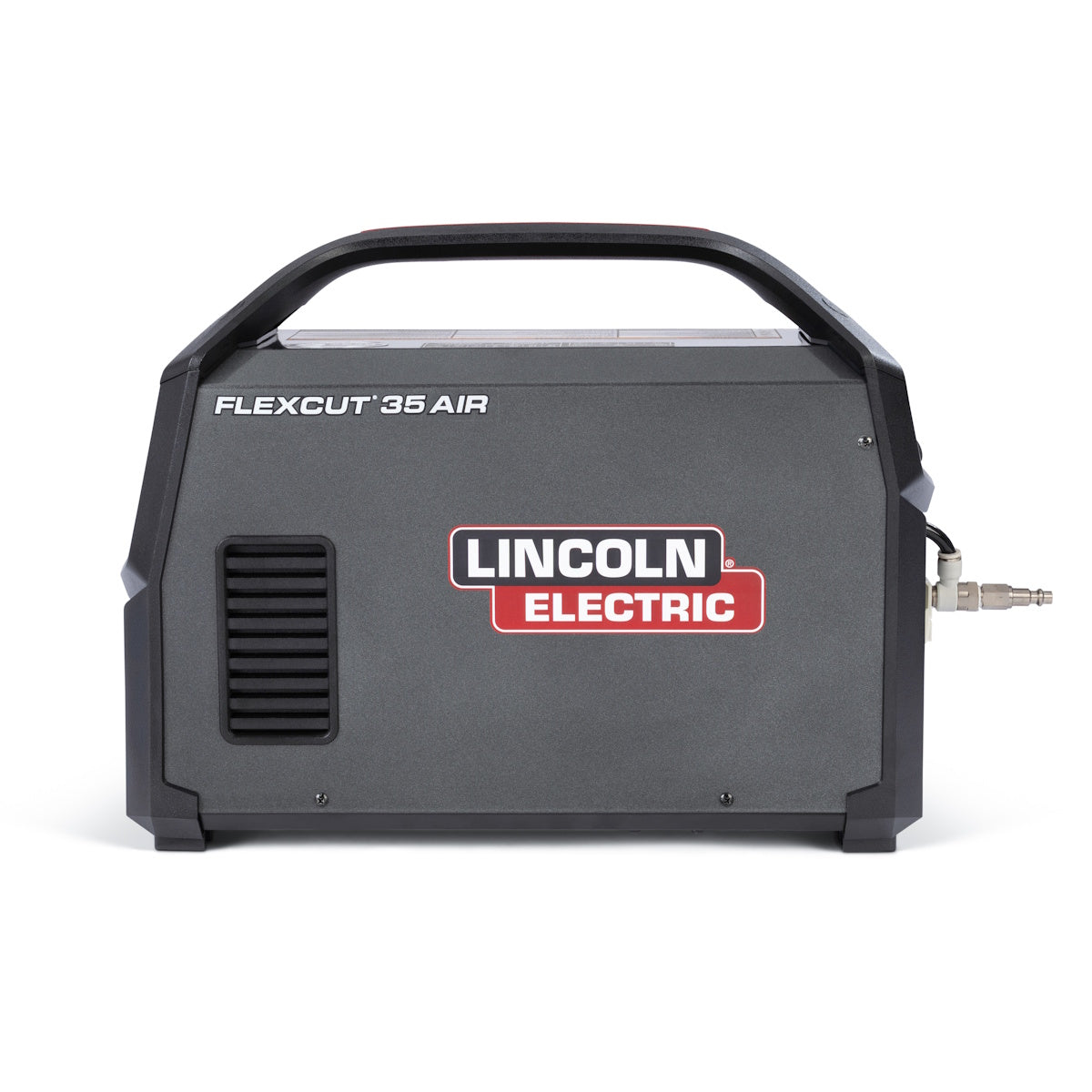

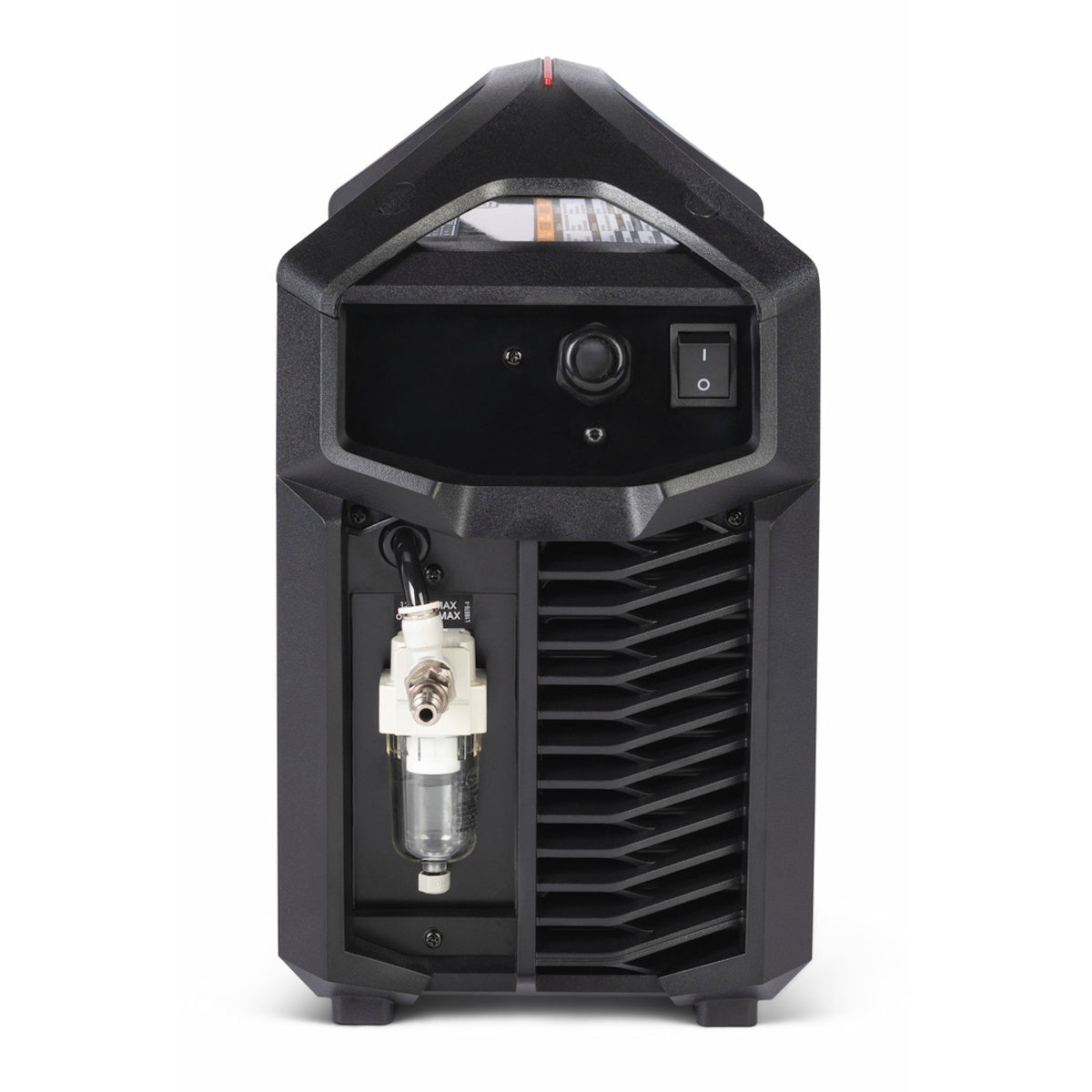

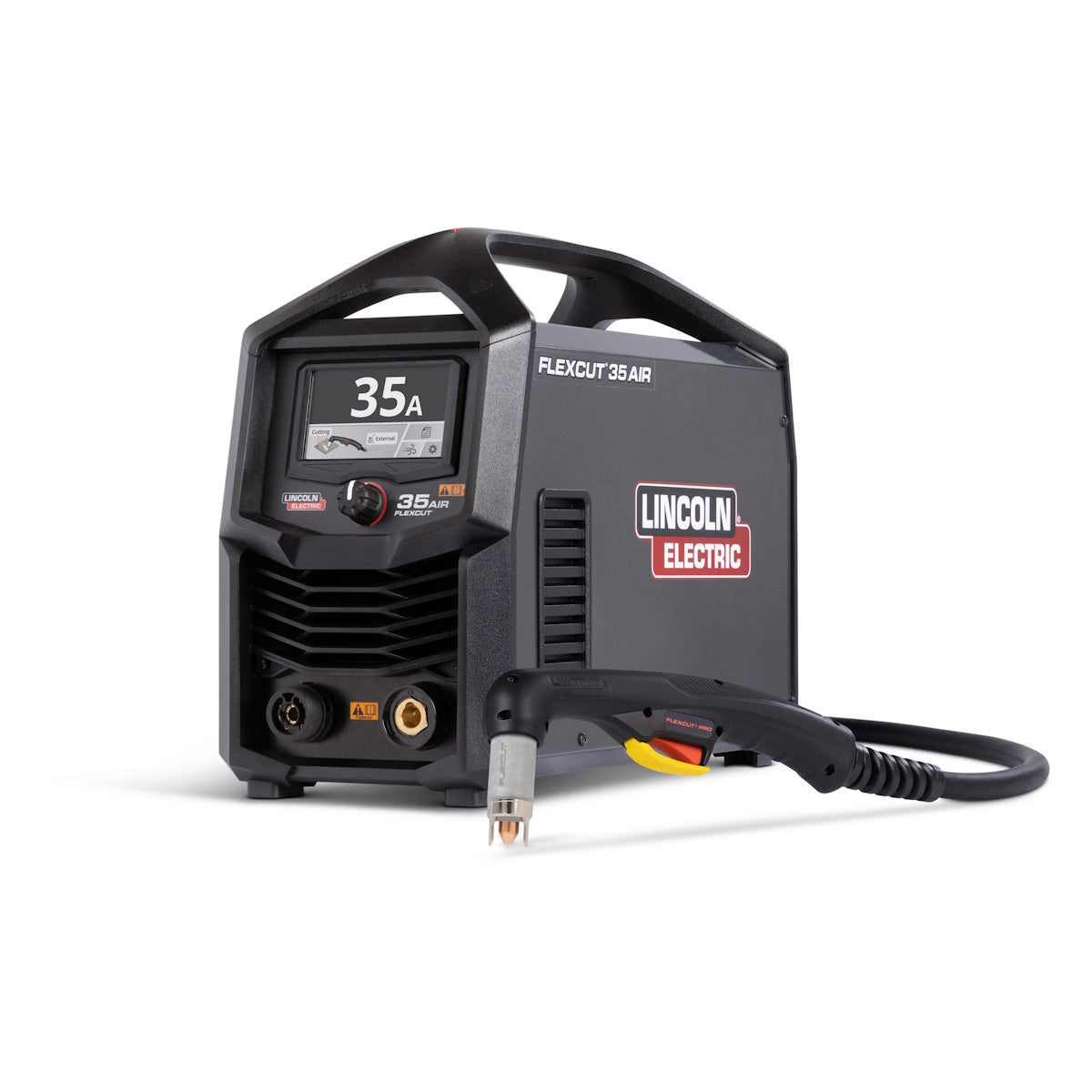

Lincoln FlexCut 35 AIR Plasma Cutter w/12.5 Ft Hand Torch (K5822-H)
Download Product Spec Sheet
The Lincoln FlexCut 35 AIR has a simple guided setup and a recommended cut capacity of 1/4" at 20ipm. This rugged, compact machine carries a 35% duty cycle at full 35 amp output when using 230V power. The FlexCut 35 comes with 120V and 240V capability, allowing you to be mobile and flexible with any environment. This machine comes with a built-in air compressor so you don't need an external air supply.
The FlexCut Pro torches are universal across the entire machine lineup, making consumable choice simple. These torches utilize long-life consumables with an advanced electrode design and optimized airflow to deliver more cuts per consumable. The threadless electrode connection means no more seized threads, and the tool-free design allows you to replace consumables in seconds.
35 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
High Duty Cycle: Built for demanding applications without overheating or slowing down.

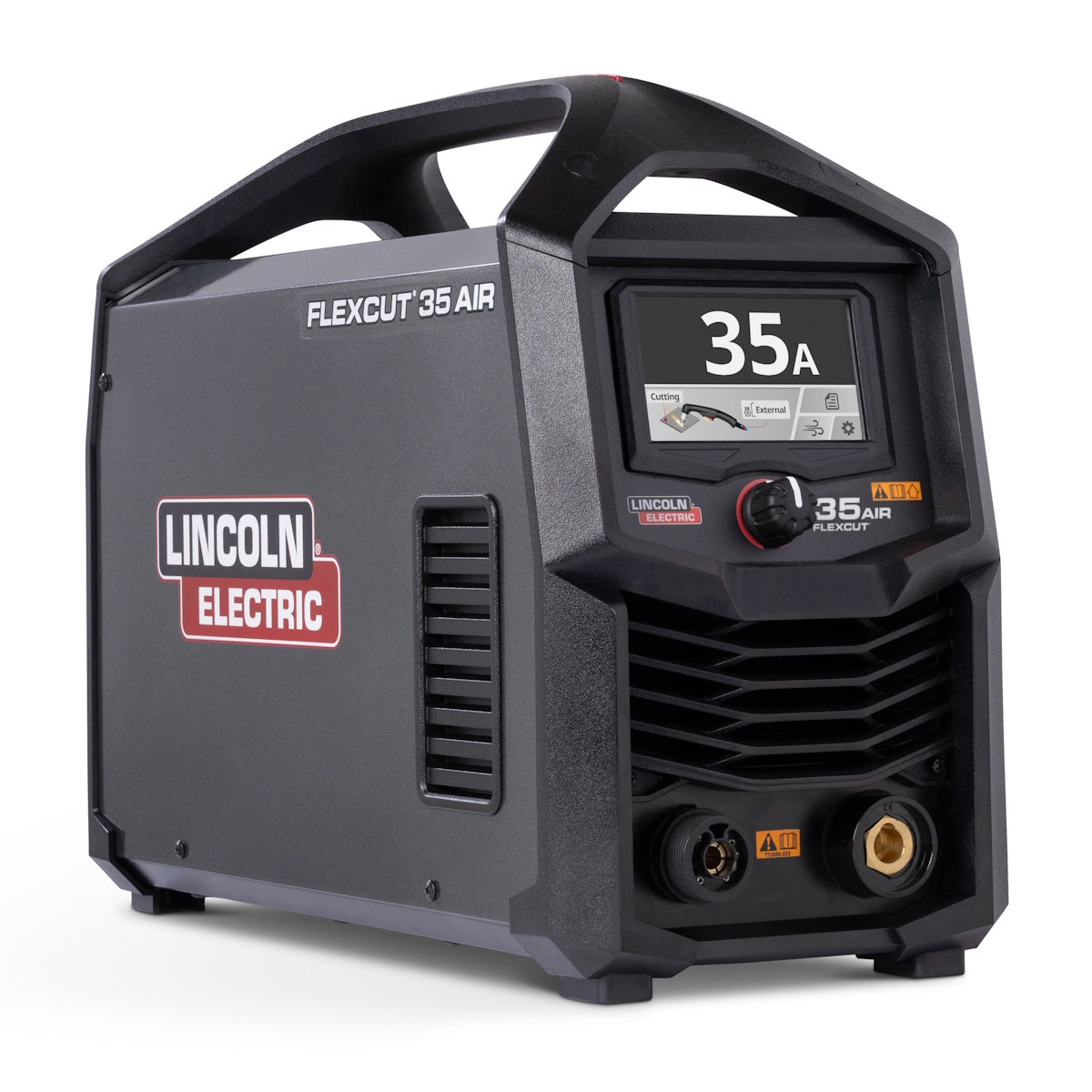

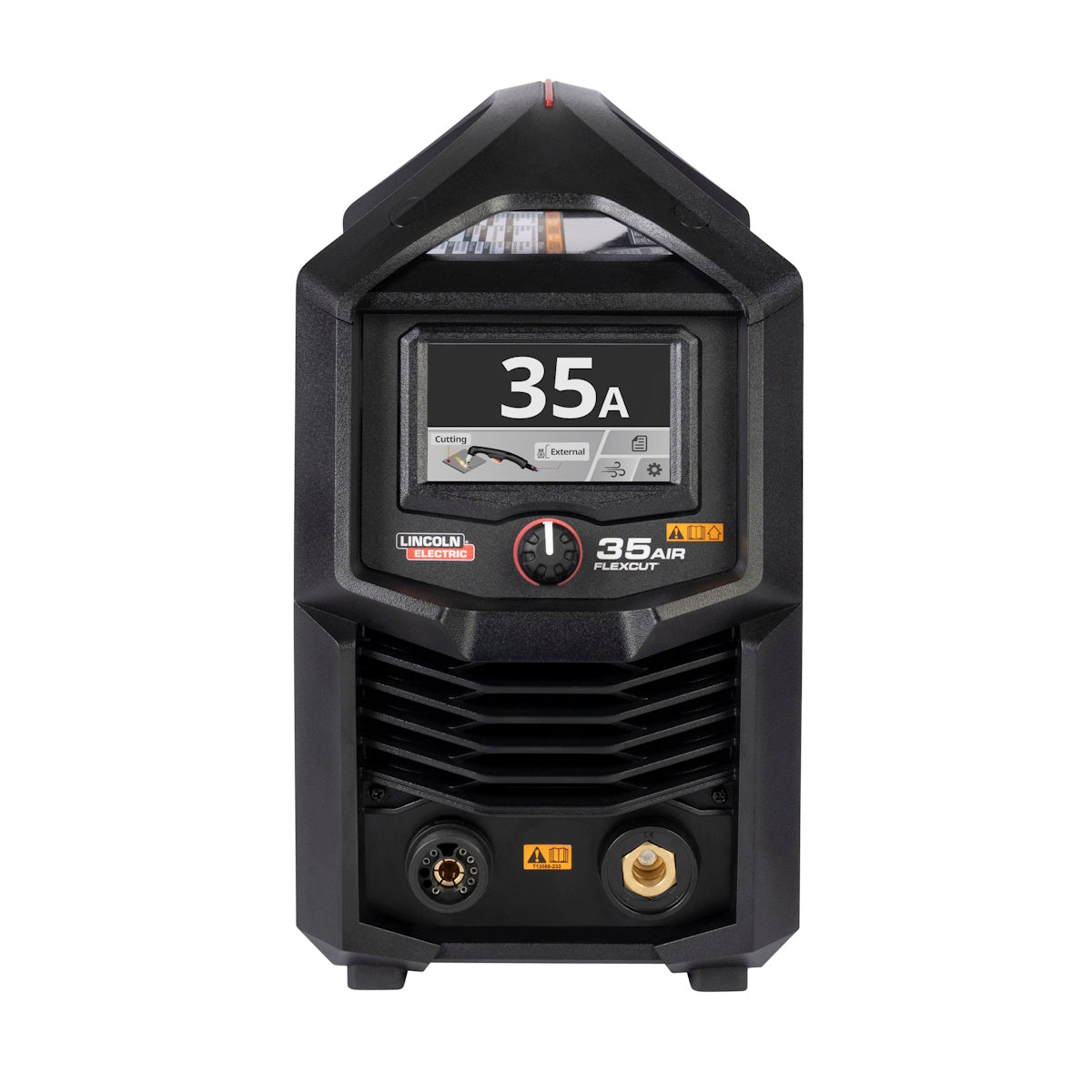

LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
Dual Voltage Flexibility: Plug into 120V or 230V power sources.
Multi-Process Capability: Drag cutting, and grid cutting with one machine for maximum versatility.
Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.
5 Year Warranty: FlexCut power sources have a 5-year warranty.
Cut Capacity
• Recommended 1/4" @ 20ipm
• Maximum 3/8" @ 10ipm
• Severance 1/2" @ 5ipm

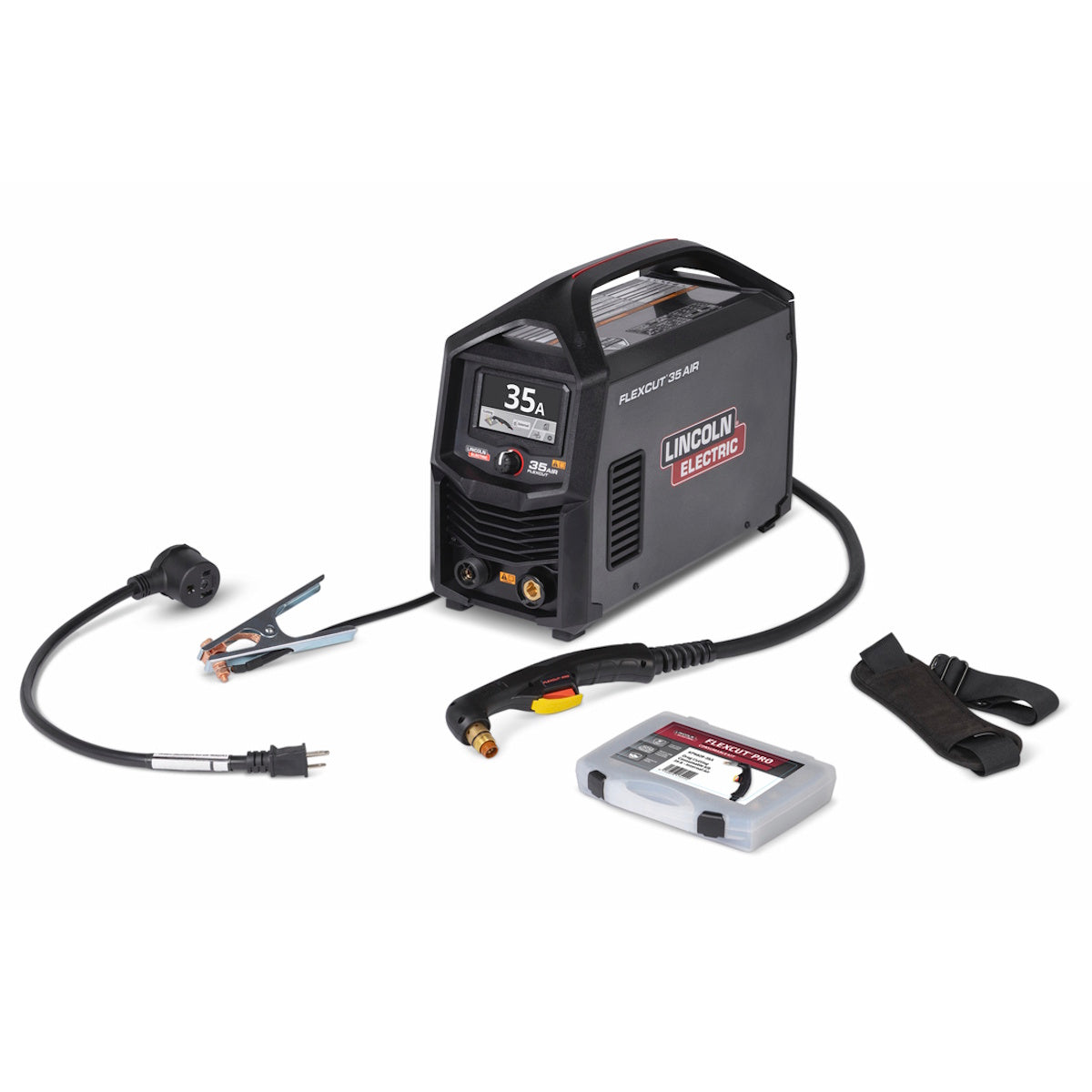

Includes:
• FlexCut 35 AIR power source (Built in Air Compressor)
• FlexCut PRO Hand Torch with 12.5 ft cable (KP5848-12-5)
• Air Filter (KP5843-1)
• Work Clamp and Cable (KP6035-1)
• Input Power Cord
• Shoulder Strap (KP6012-1)
• 120V Input Adapter (KP6034-1)
• Starter Consumables Kit (2 Electrodes, 2 Nozzles, 1 Swirl Ring, 1 Retaining Cap, 1 Shield)
Quick Specs:
• Input Power: 120/240V | Single Phase | 50/60 Hz
• Duty Cycle: 35% @ 35A 230V | 20% @ 27A 120V
• Recommended Circuit Breaker: 30A
• Output Range: 15-35A
• Engine Drive Needed: 5.5kW for 35A (120V)
• Air Pressure Needed: 90-125 psi
• Dimensions: 18.4" H x 8.1" W x 14.1" L
• Weight: 35 lbs
| MPN: | LINK5822-H |
|---|---|
| UPC: | 015082817101 |
| Input Phase | Single |
| Rated Output | 15-35A |
| Weight | 35 lbs |
| Warranty | 3 Year on Machine, 1 Year on Torch |
