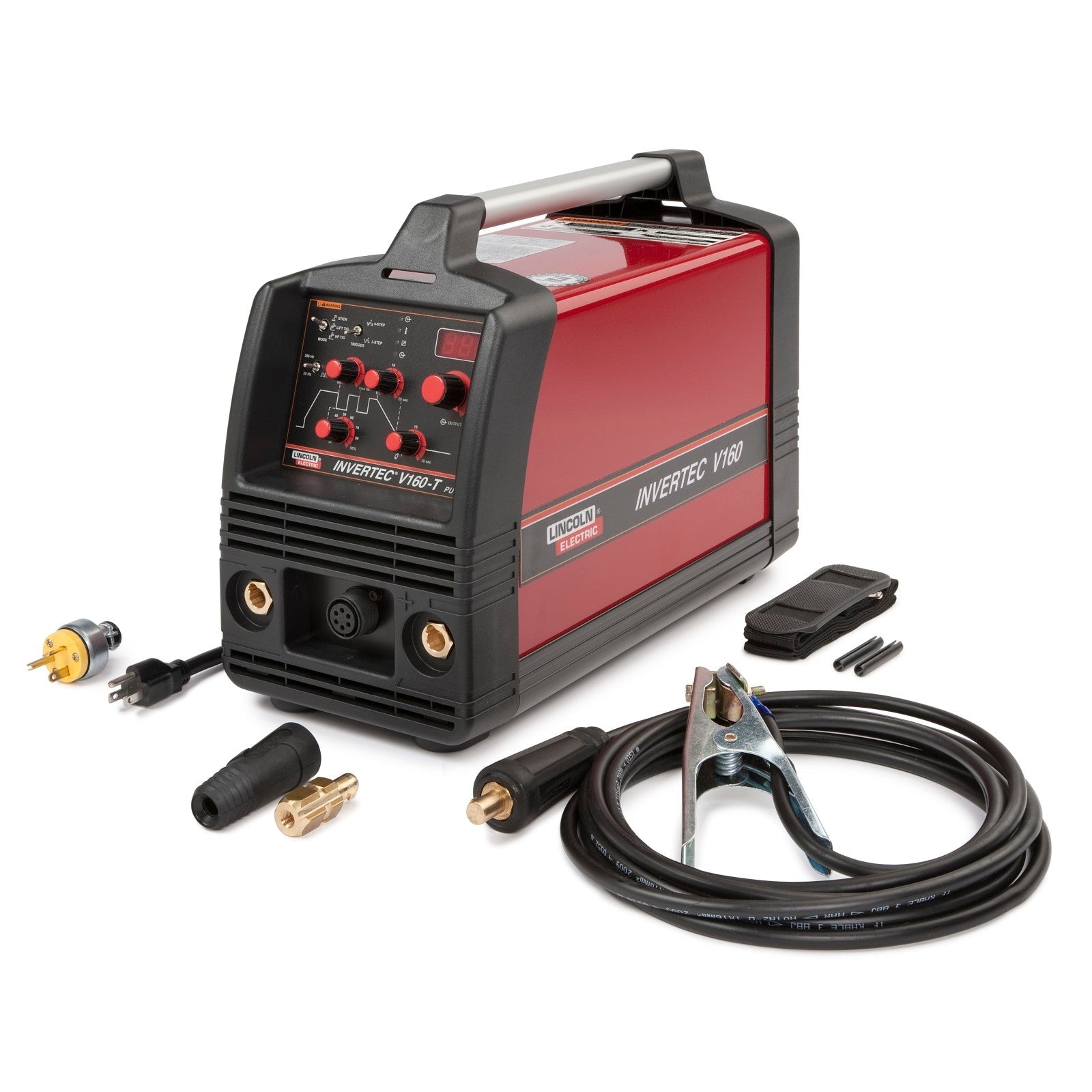

Lincoln Invertec 160-T TIG Welder (K1845-1)

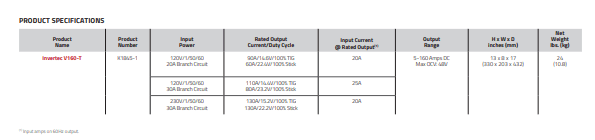

Download Product Spec Sheet
This welder is no longer available. The suggested replacement is the Sprinter 180Si (K5453-1).
Don't be fooled by the small size of the Lincoln Invertec 160-T TIG Welder; this little guy packs quite the punch. Designed for fabrication or critical maintenance work, the Invertec 160-T sports integral gas and power connectors for simple torch connections and quick changes between TIG and Stick welding. Selectable Touch Start offers high frequency starting (TIG) making it easy to establish an arc under a variety of conditions. A built in pulsing function gives you greater control over thin materials while auto-reconnect eliminates input power operator error. You might expect all of these features to come in an over-sized package. Well, not so fast my friend. The Invertec 160-T comes in a lightweight, rugged package making it easy to take it's TIG welding capabilities to the job; where ever that is.
Top Features
• Advanced inverter technology - Delivers superior TIG performance.
• High frequency TIG starting makes it easy to establish an arc under a variety of conditions.
• Add TIG capability to your arsenal - By using remote power from an engine driven generator.
• Auto-reconnect - Between 115/230V 50/60Hz input power eliminates operator error.
• Lightweight - Rugged package makes it easy to take TIG welding capability where it's needed.
Includes:
• 115V Input cord (10 ft.) and plug (NEMA 5-15P)
• 20 Amp Plug (NEMA 5-20P)
• Twist-Mate Torch Adapter for PTA-9 or -17 one-piece torch
• Fully adjustable shoulder strap
• Work clamp and cable
| MPN: | LINK1845-1 |
|---|---|
| UPC: | 015082744261 |
| Processes | Stick|TIG |
| Designed For | The Invertec V160-T is a small but rugged, high-performance DC TIG and Stick welder designed for alloy fabrication, process piping, or critical maintenance work. Weighing in at a portable 24 pounds, the machine automatically connects to 120V or 230V service and features simple torch connections that provide for quick changeover from TIG to Stick welding. |
| Amperage | 5-160 Amps DC Max OCV: 48V |
| Input Voltage | 120V/1/50/60 20A Branch Circuit |
Download Product Spec Sheet
