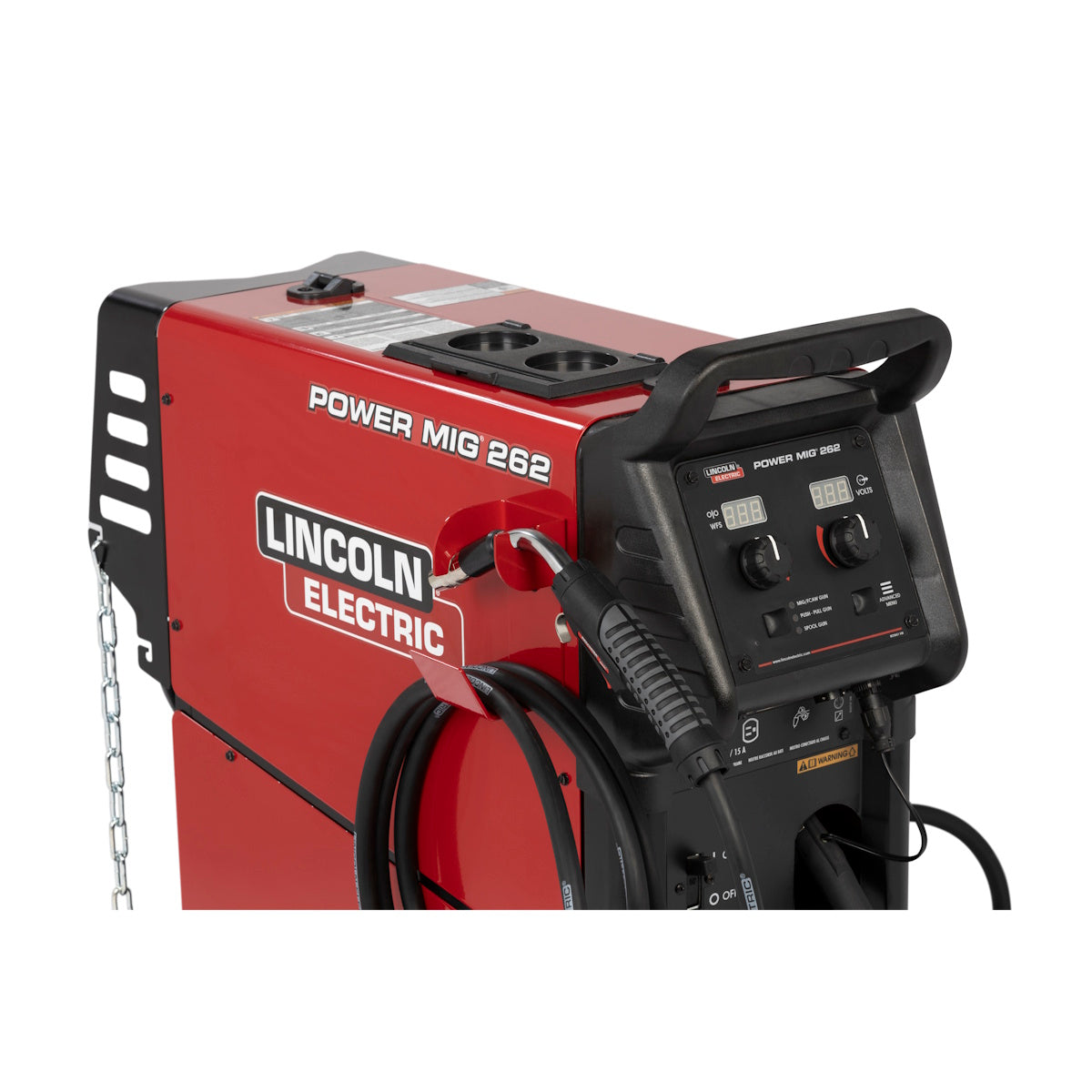

Lincoln Power Mig 262 MIG Welder (208-575V) (K5706-1)
Download Product Spec Sheet
Lead time: IN STOCK! Ships Same/Next Business Day
The Power MIG 262 (K5706-1) offers 300 amp output with a streamlined interface for user-friendliness at an affordable price.
This machine does not have pulse functionality. If you want Pulsed MIG, you need the Power MIG 262P (K5378-1).
Features
• Rugged MAXTRAC industrial wire drive
• Basic Control Knobs
• 300 Amp max output
• (2) 115V front power outlets
Advanced Options
• Run-In
• Pre/Post Flow
• Burn Back
• Spot Timer
Quick Specs
• Processes: MIG | Flux-Cored
• Input Voltage: 208-575V | 1-Phase | 60 HZ
• Amperage Draw: 49.1A @ 208V | 44A @ 230V | 22.1A @ 460V
• Duty Cycle: 60% @ 230A
• Wire Feed Speed: 50-700 ipm
• Dimensions: 37.5"H x 18"W x 37.5"L
• Weight: 250lbs
Includes
• 15ft Magnum PRO 250L MIG gun (K4530-2)
• Adjustable gas regulator and hose (K586-1)
• .035/.045 Solid wire drive rolls (KP1696-1)
• 10ft work cable with clamp
• 10ft power cable with plug
| MPN: | LINK5706-1 |
|---|---|
| Weldable Metals | Mild Steel | Stainless | Aluminum |
| Input Phase | 1 Phase |
| Input Hz | 60 Hertz |
| Input Phase | DC |
| Rated Output | 60% @ 230A |
| Max Open Circuit Voltage | 90 Volts |
| Wire Feed Speed | 50-700 |
| Weld Output | 300 Amps |
| Weight | 250 lbs |
| Warranty | 3 Years |
MPN: LINK5706-1
