Miller Filtair SWX Add-On 12ft ZoneFlow Extraction Arm (951822)

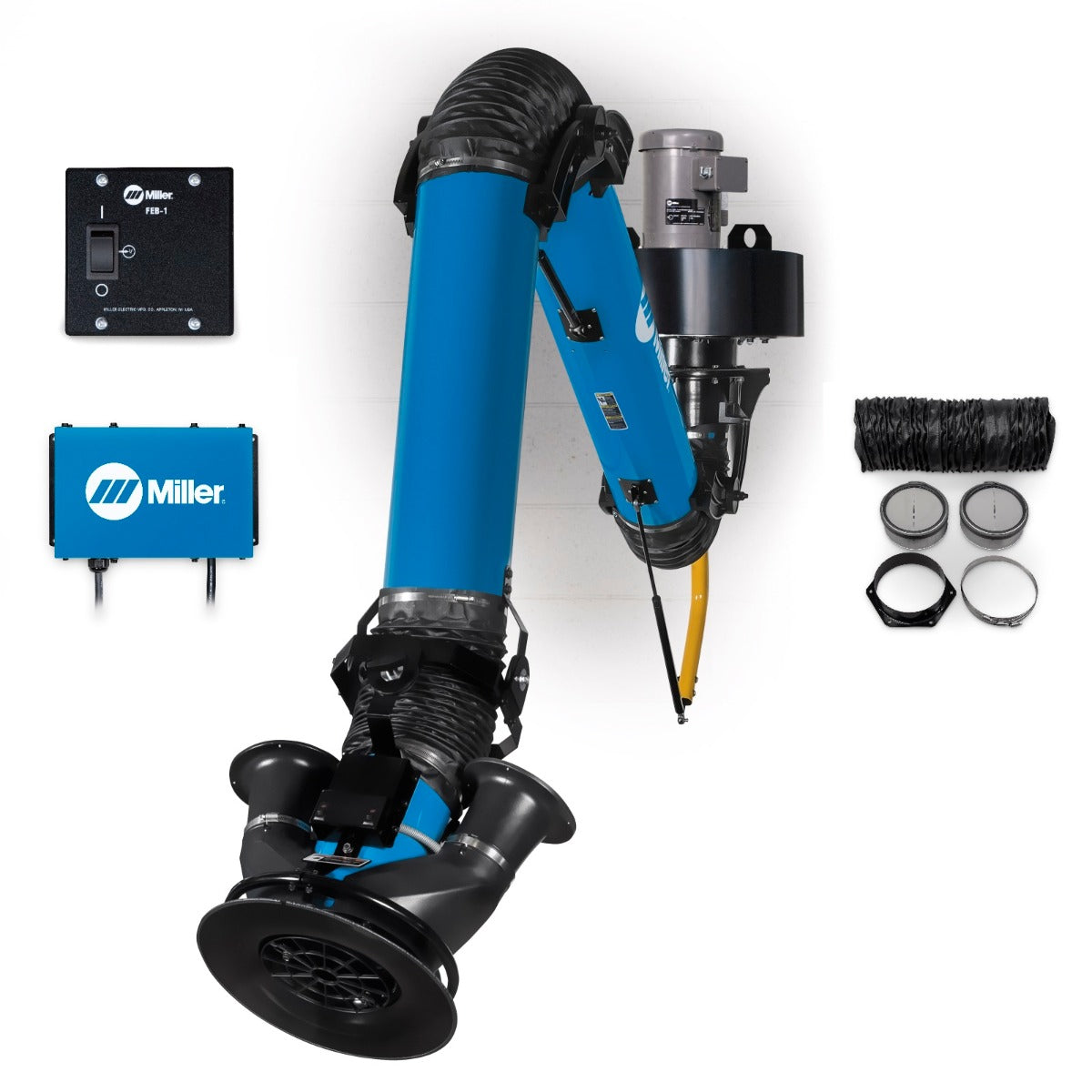

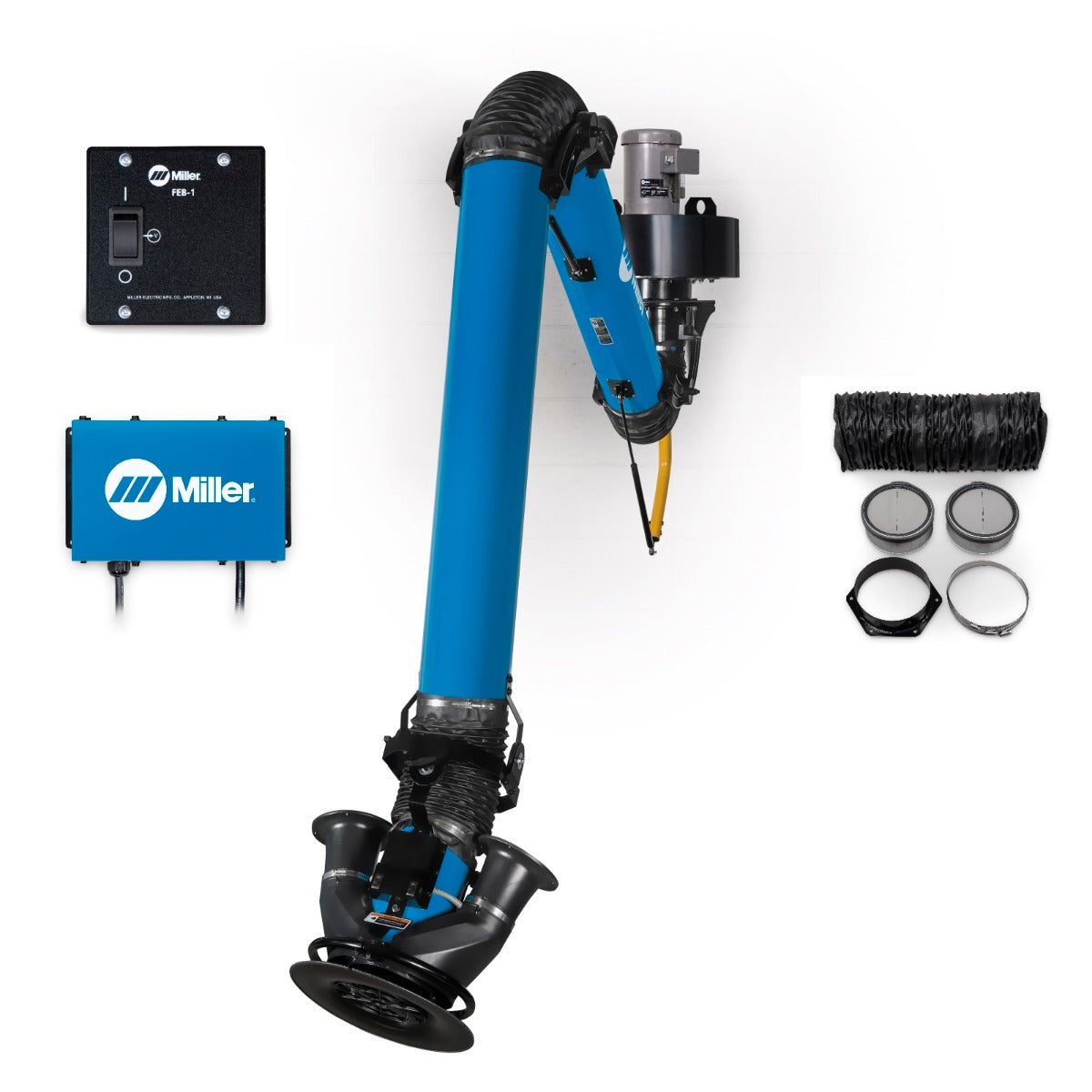

The Filtair 951822 SWX add-on ZoneFlow extraction arm comes with a 12 foot length. These items include a blower, mounting bracket, duct and dampers, and an on/off control box. This item does not include the fume extractor cabinet, simply an add-on arm for a dual-arm setup.

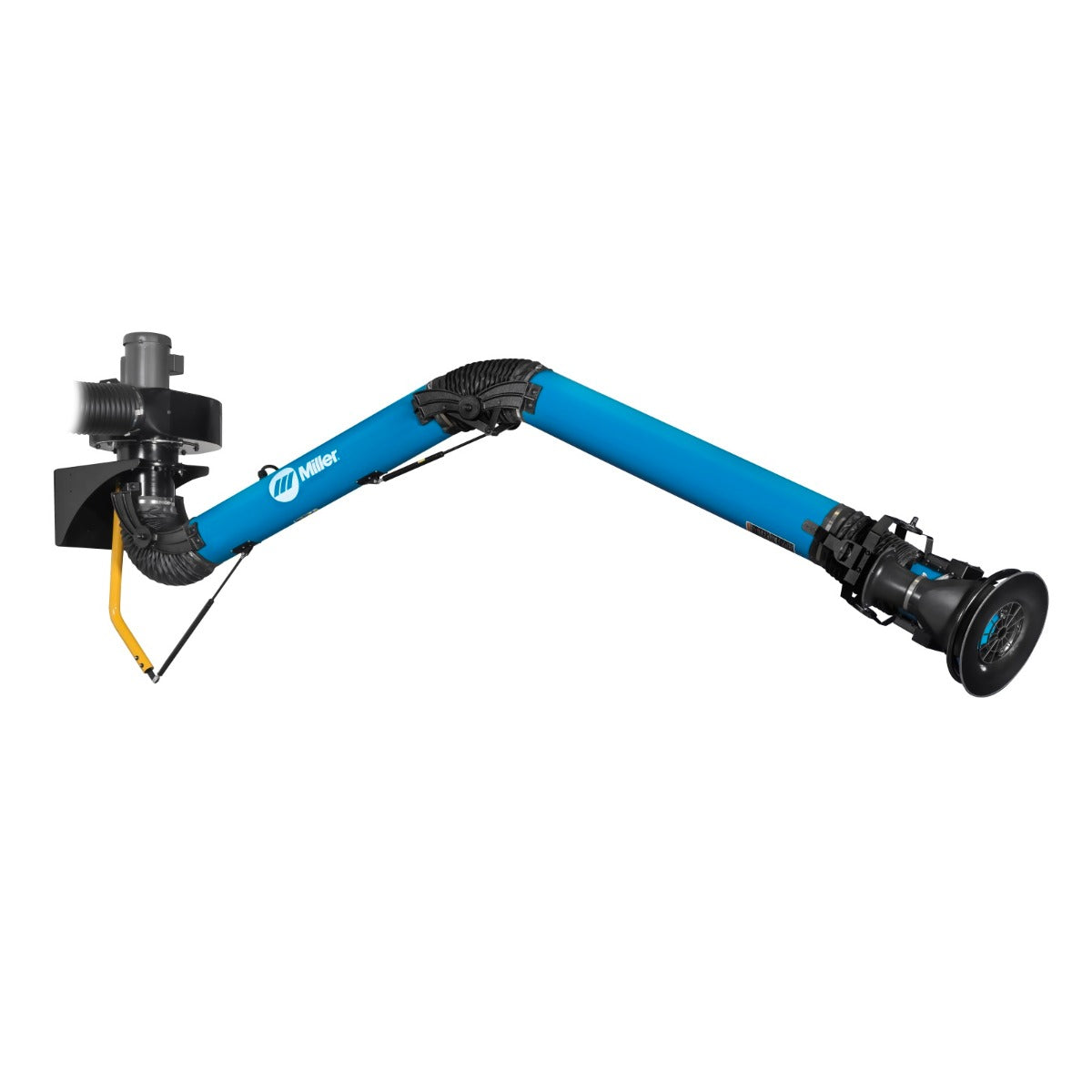

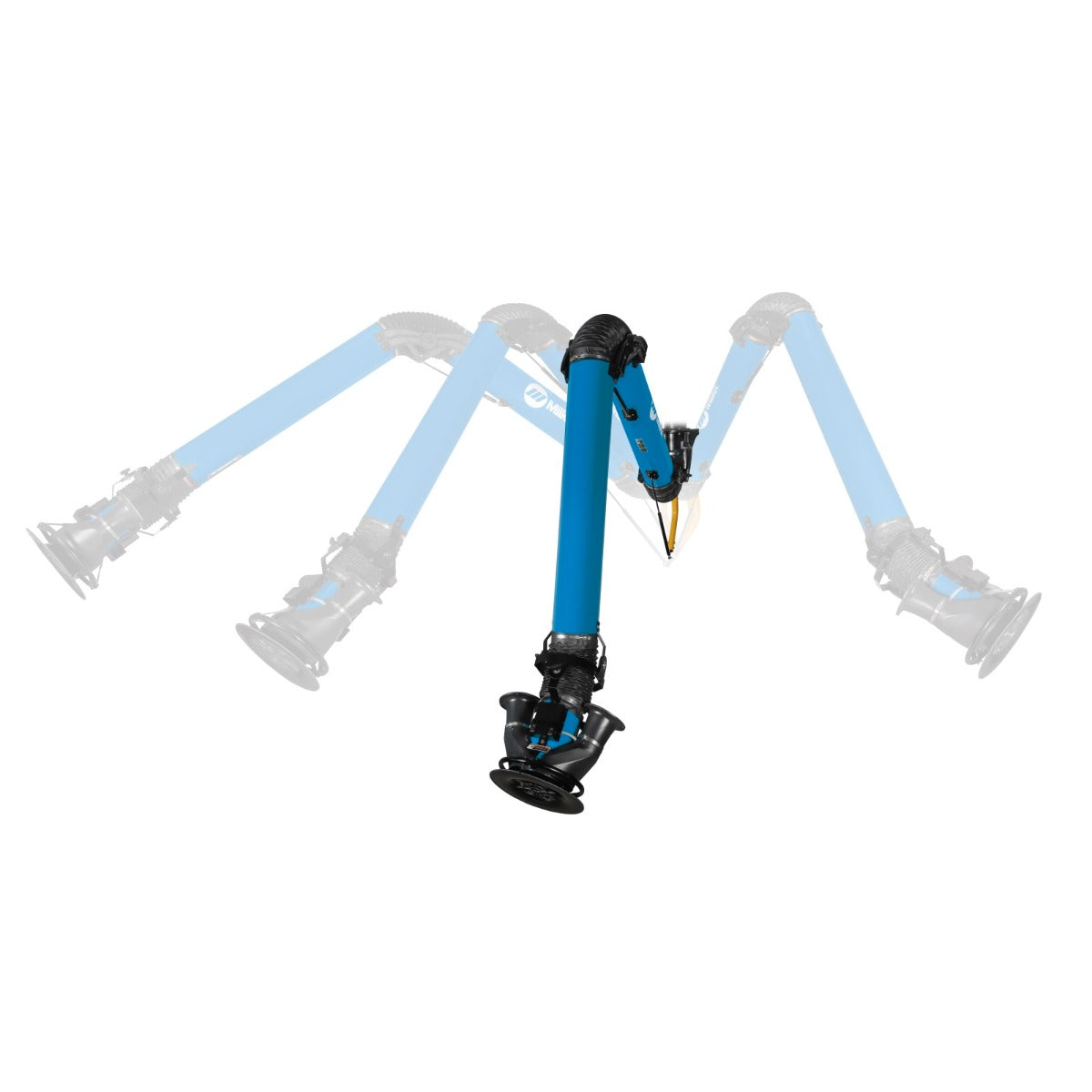

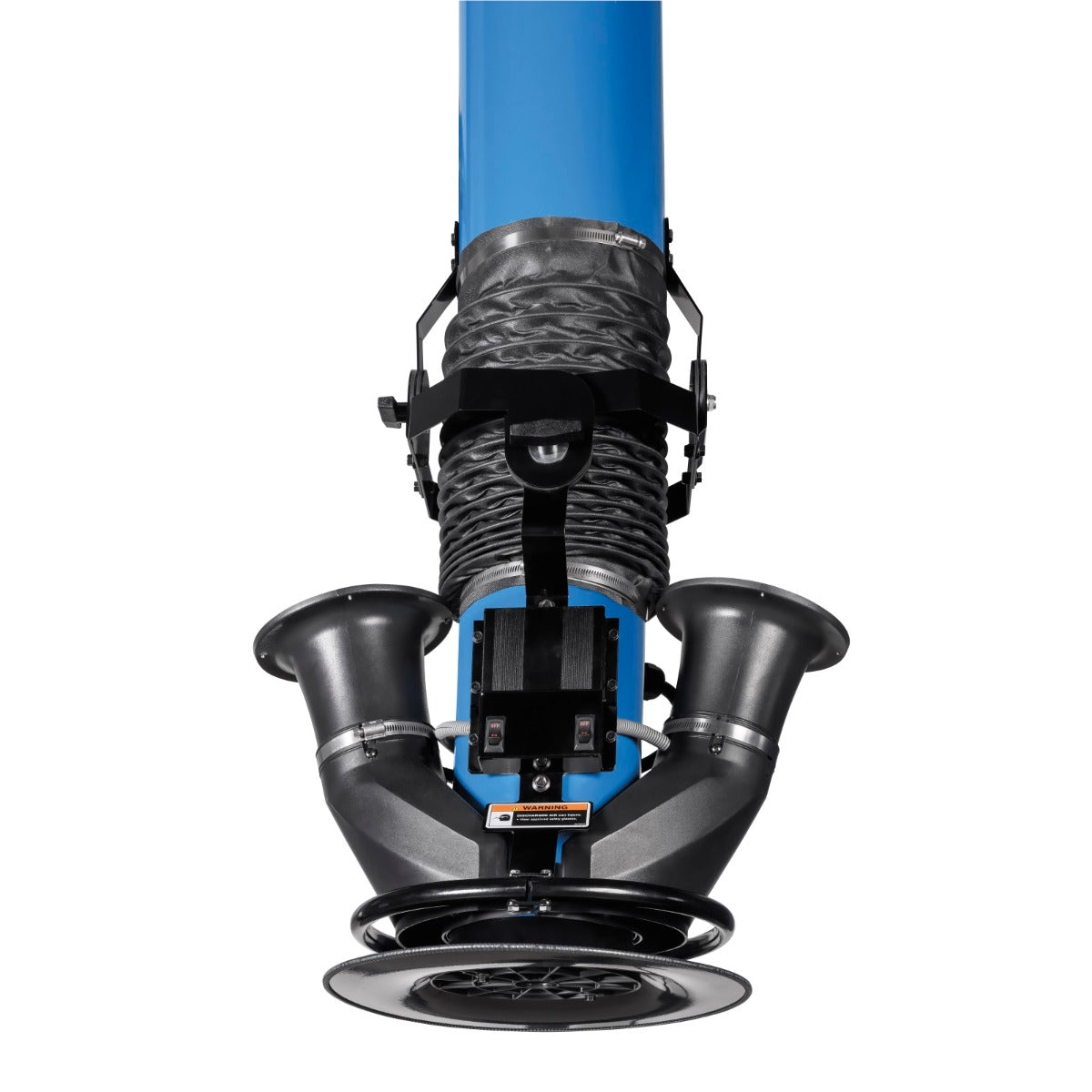

These models come with a completely new and exclusive ZoneFlow™ technology, which creates a much larger capture area than existing source-capture products and minimizes arm interactions. ZoneFlow is far more effective than ambient fume extraction systems as the suction head creates a negative pressure zone that funnels air to the center of the arm from greater distances. The arm features a 360-degree rotation for unlimited positioning, which means fewer hood adjustments and extended welding time.

Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.

Quick Specs:
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Arm Dims: 8-inch diameter (10 or 12 foot lengths)

Comes With:
• 12 Ft ZoneFlow Extraction arm (8-inch diameter)
• ZoneFlow motor control box
• Mounting bracket for blower/arm
• Duct and Backdraft dampers
• 115V Blower

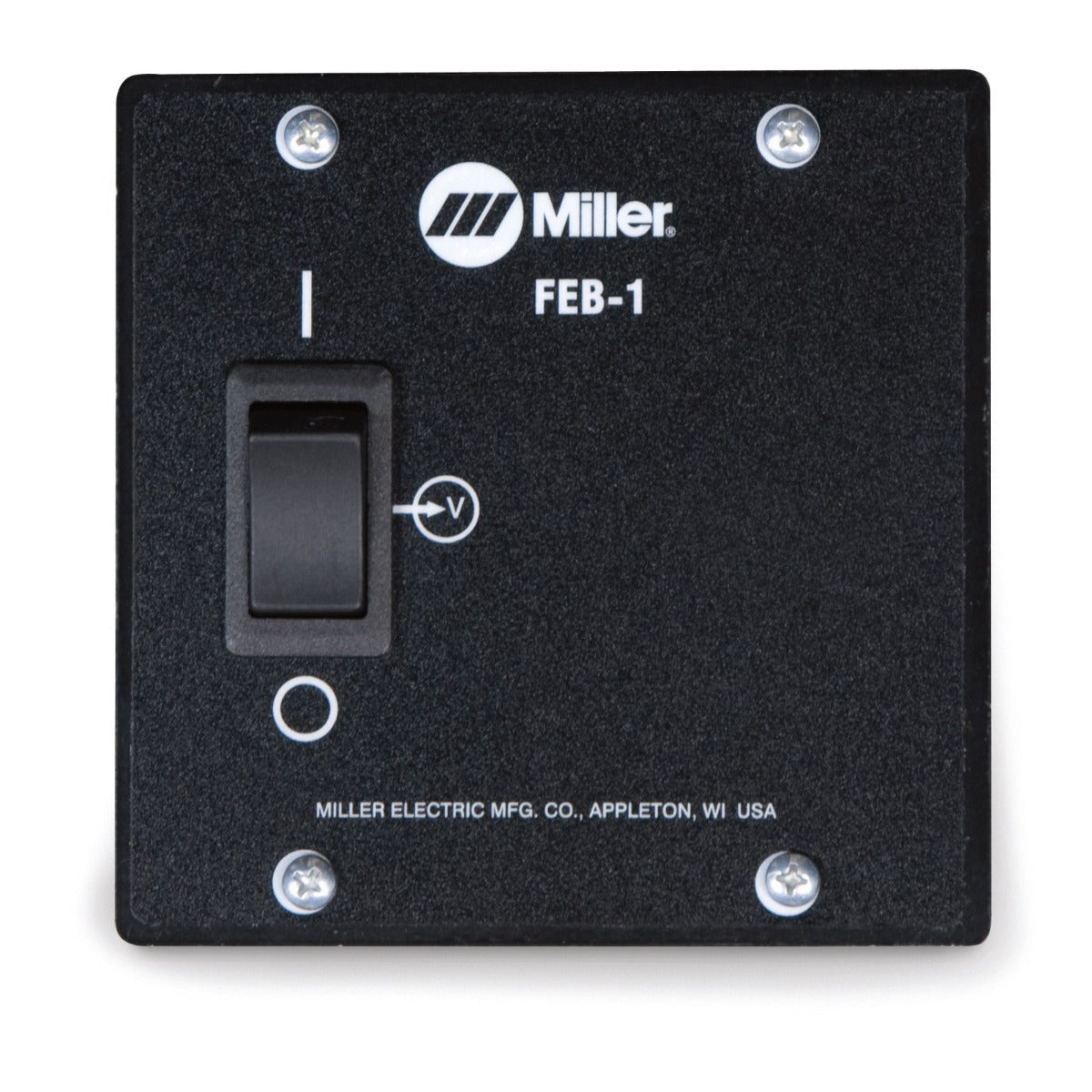

• 115V On/Off control box
• 115V Wiring Not Included

MPN: MIL951822
