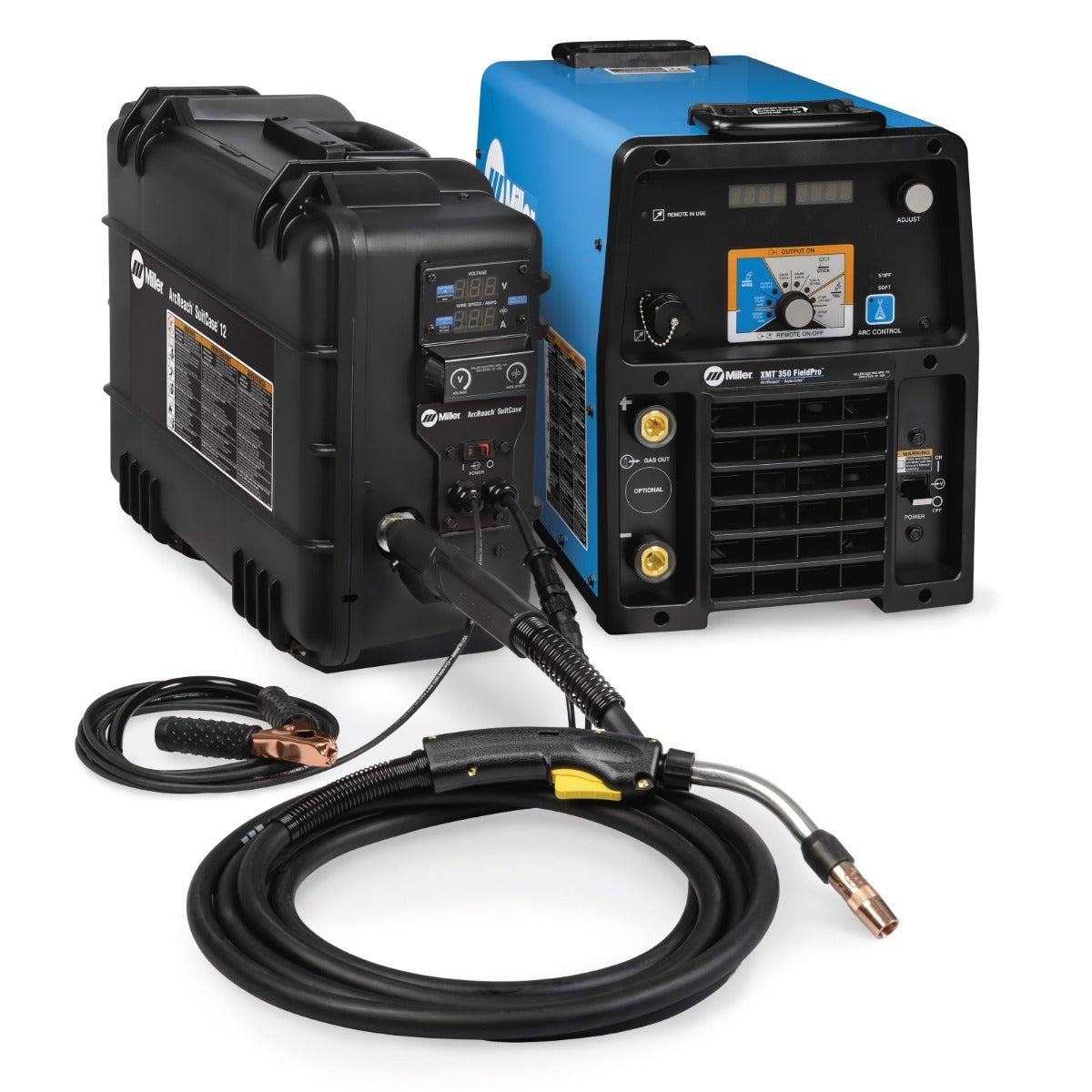

Miller XMT 350 FieldPro ArcReach w/Suitcase Pkg (951734001)
The XMT 350 FieldPro with Suitcase (951734001) offers portability, auto-line technology, and excellent arc performance. These welders feature Miller's ArcReach technology which allows full control at the feeder rather than making a trip back to the power source to change output settings.
This particular model XMT comes equipped with Tweco Style Connectors.

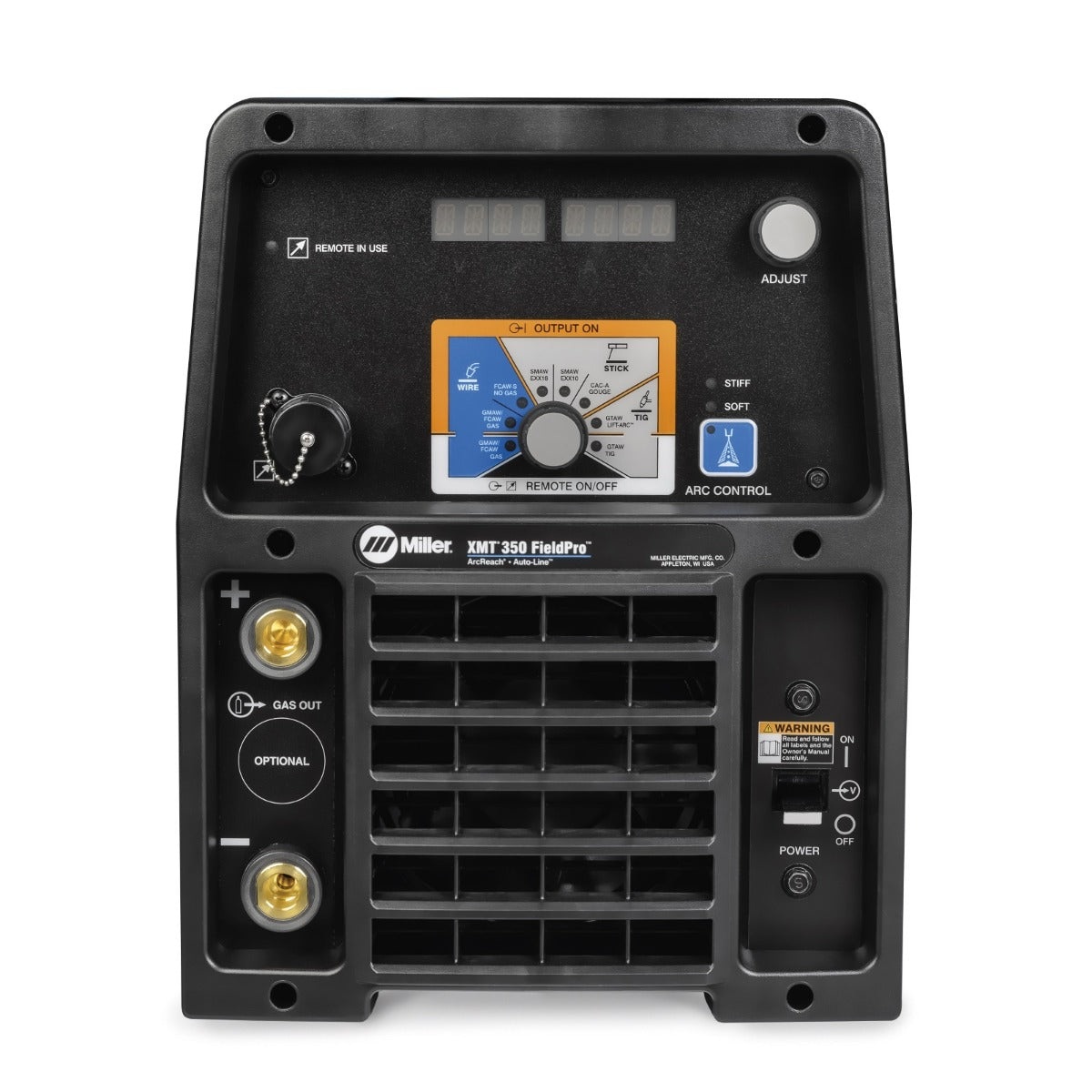

XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Adaptive Hot Start
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
ArcReach Benefits
• Cable Length Compensation (CLC)
• No Expensive Control Cords
• Improved Jobsite Safety
• Maximize Fleet Compatibility with ArcReach Power Sources
• More Operator Control

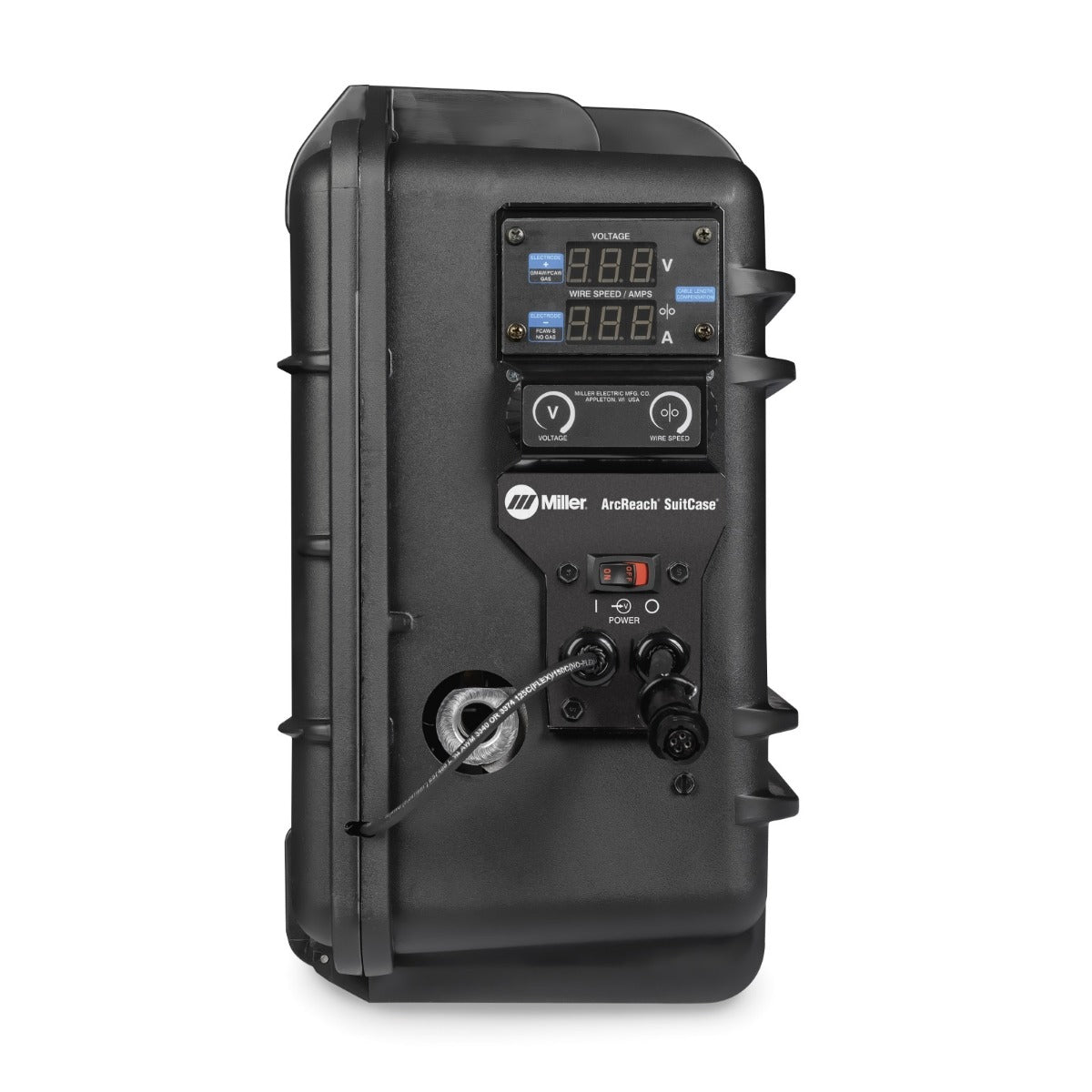

ArcReach Suitcase Feeder Features
• Front Panel Trigger Hold, Wire Jog, Gas Purge
• Fully Adjust Parameters at Feeder
• Flux-Cored Capable
• Impact Resistant Case
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
XMT Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 5-425A
• Duty Cycle: 60% @ 350A 3-Phase | 60% @ 300A 1-Phase
• Weight: 93 lbs
• Dims: 17" H x 12.5" W x 24" D
Feeder Quick Specs
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter: .023 - .052 (Solid Wire) | .030 - 5/64 (Flux-Cored)
• Dimensions: 15.5"H x 9"W x 21"D
• Net Weight: 35 lbs
• Drive Rolls Included: .045 - 1/16 V-Knurled
This particular model XMT comes equipped with Tweco Style Connectors.
XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Adaptive Hot Start
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
ArcReach Benefits
• Cable Length Compensation (CLC)
• No Expensive Control Cords
• Improved Jobsite Safety
• Maximize Fleet Compatibility with ArcReach Power Sources
• More Operator Control
ArcReach Suitcase Feeder Features
• Front Panel Trigger Hold, Wire Jog, Gas Purge
• Fully Adjust Parameters at Feeder
• Flux-Cored Capable
• Impact Resistant Case
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
XMT Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 5-425A
• Duty Cycle: 60% @ 350A 3-Phase | 60% @ 300A 1-Phase
• Weight: 93 lbs
• Dims: 17" H x 12.5" W x 24" D
Feeder Quick Specs
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter: .023 - .052 (Solid Wire) | .030 - 5/64 (Flux-Cored)
• Dimensions: 15.5"H x 9"W x 21"D
• Net Weight: 35 lbs
• Drive Rolls Included: .045 - 1/16 V-Knurled
| MPN: | MIL951734 |
|---|---|
| UPC: | 715959701402 |
| Processes | Air Carbon Arc Cutting and Gouging (CAC-A)Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC) |
| Designed For | Shipbuilding Manufacturing Welding Education and Training Heavy Equipment Railcar Aerospace Construction and Fabrication |
| Amperage | 1- and 3-Phase |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Weight | 80 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
MPN: MIL951734
UPC: 715959701402
