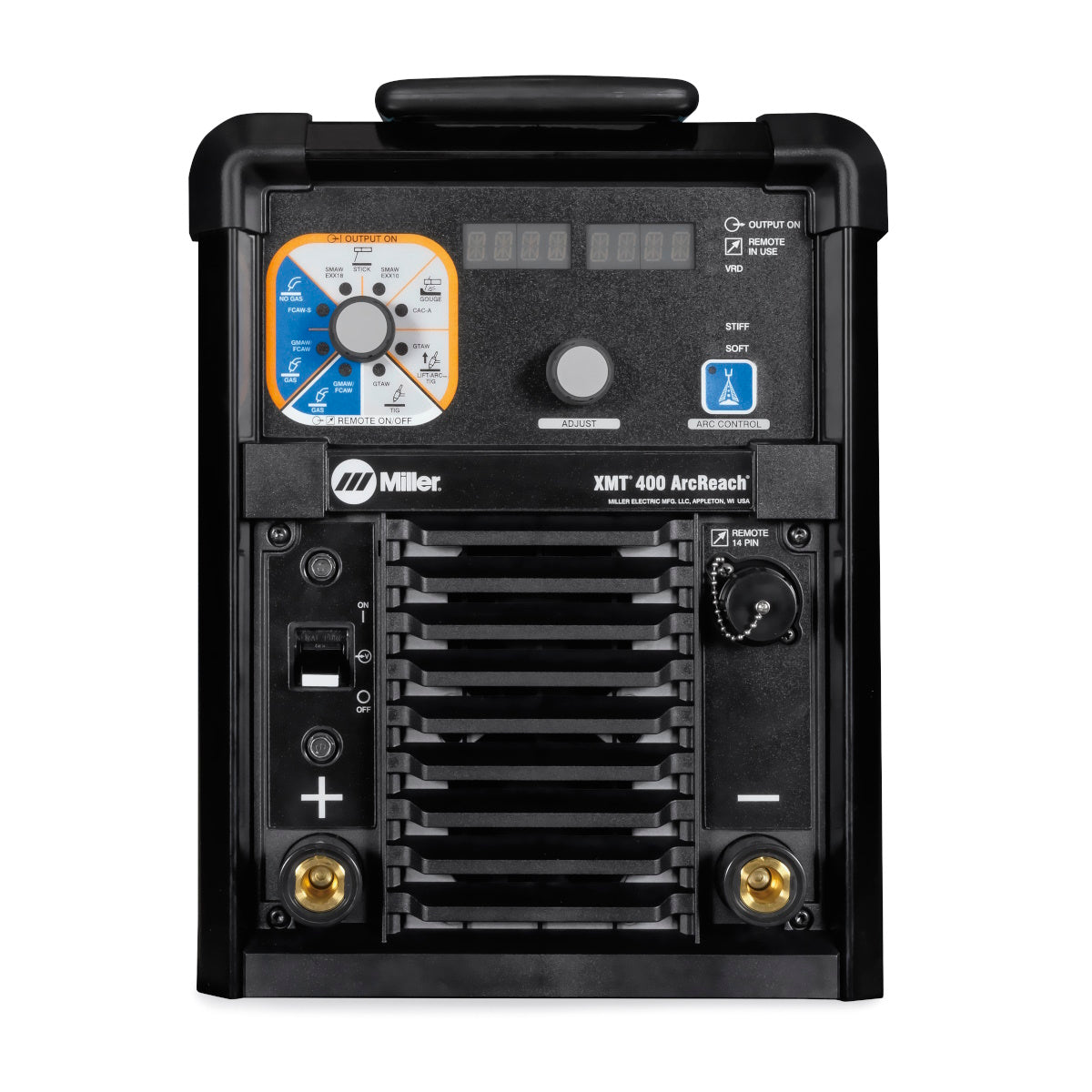

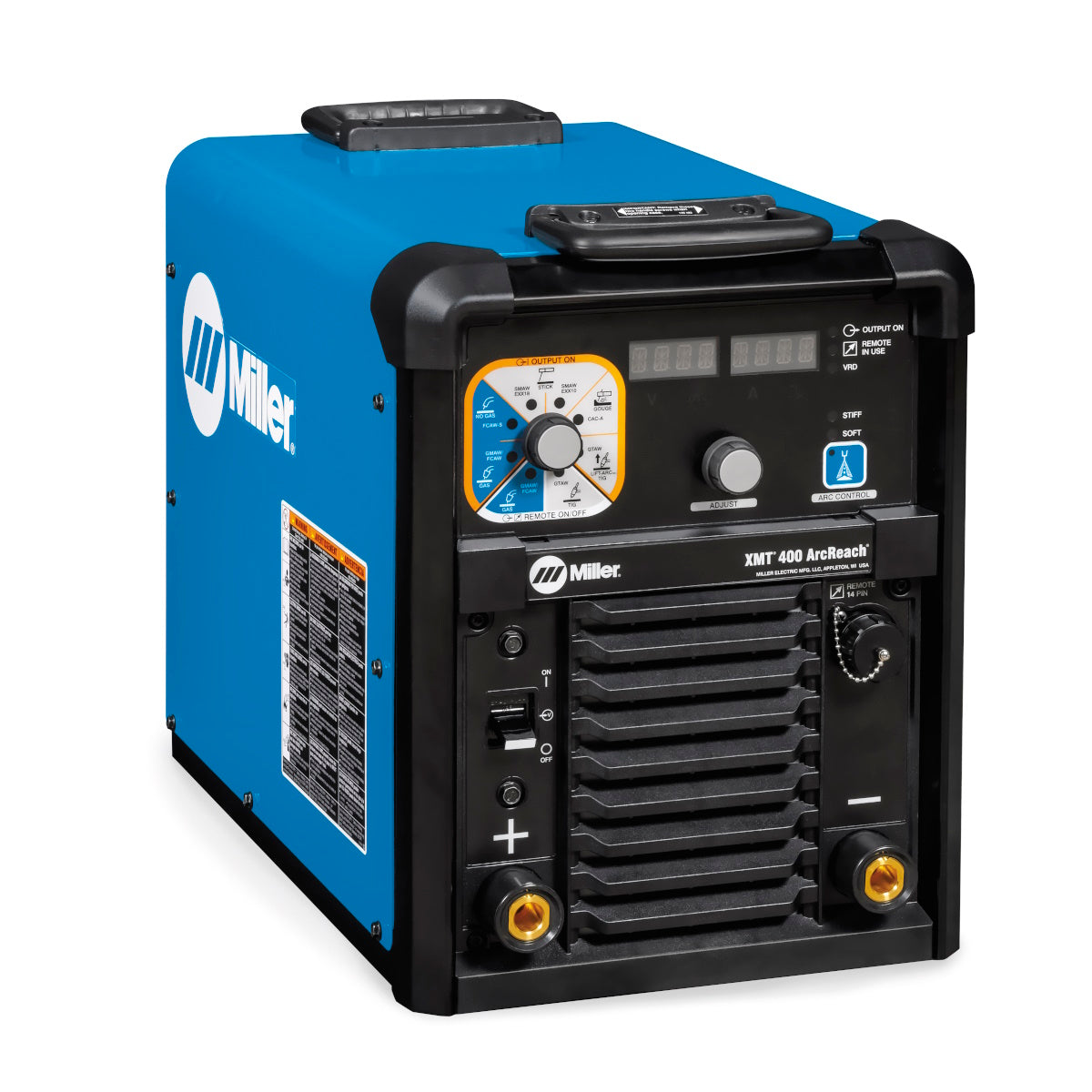

Miller XMT 400 ArcReach Multiprocess Welder 6-Pack Fused 460/575V (907883)
Download Product Spec Sheet
The XMT multi-process welders offer portability, auto-line technology, and excellent arc performance. The XMT 400 models come equipped with ArcReach technology which eliminates time spent tracing cables back to the power source to make adjustments. These welders are the most popular due to the flexibility with multiple ArcReach capable accessories. These units come with Tweco Style connections, but can also be field changed over to dinse connections.

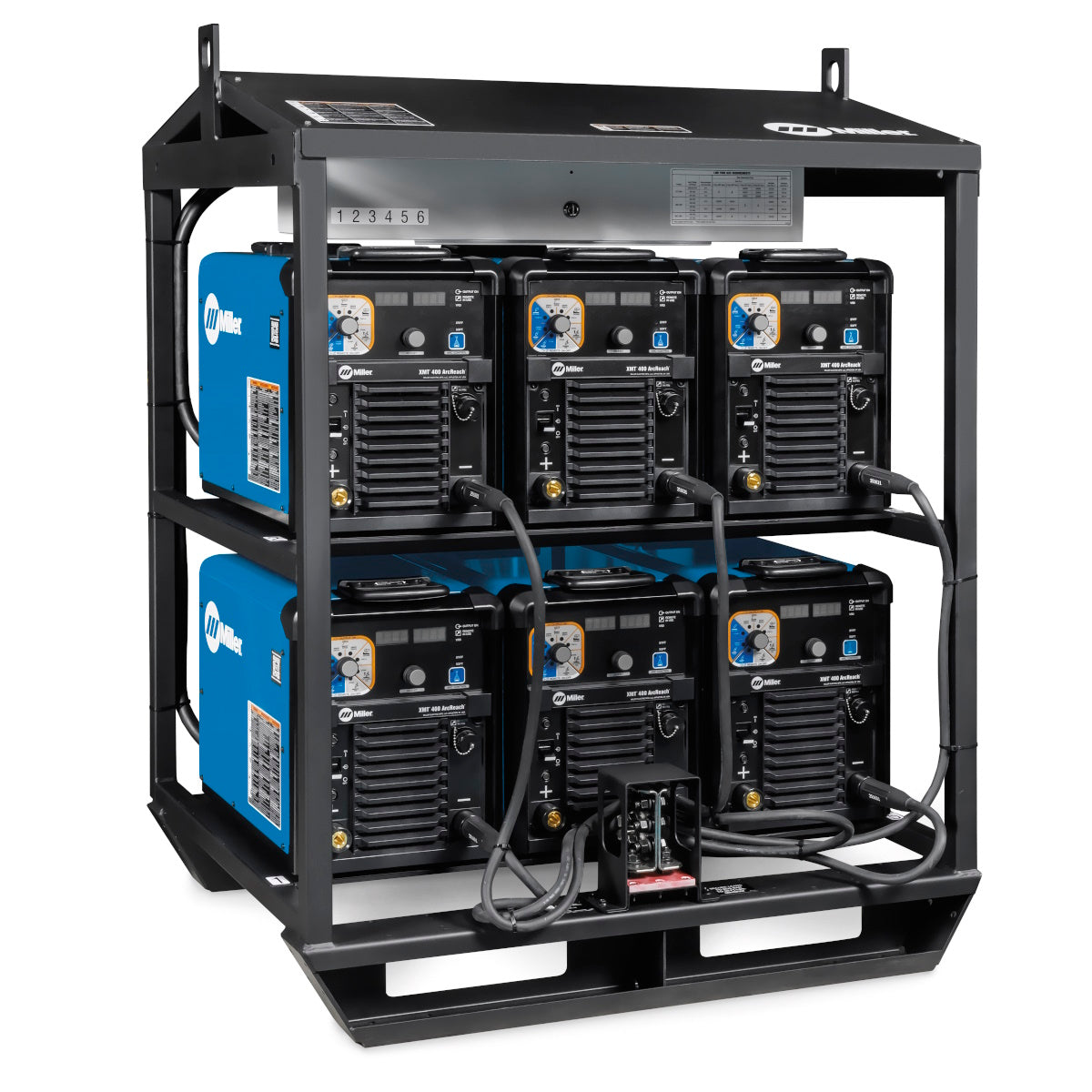

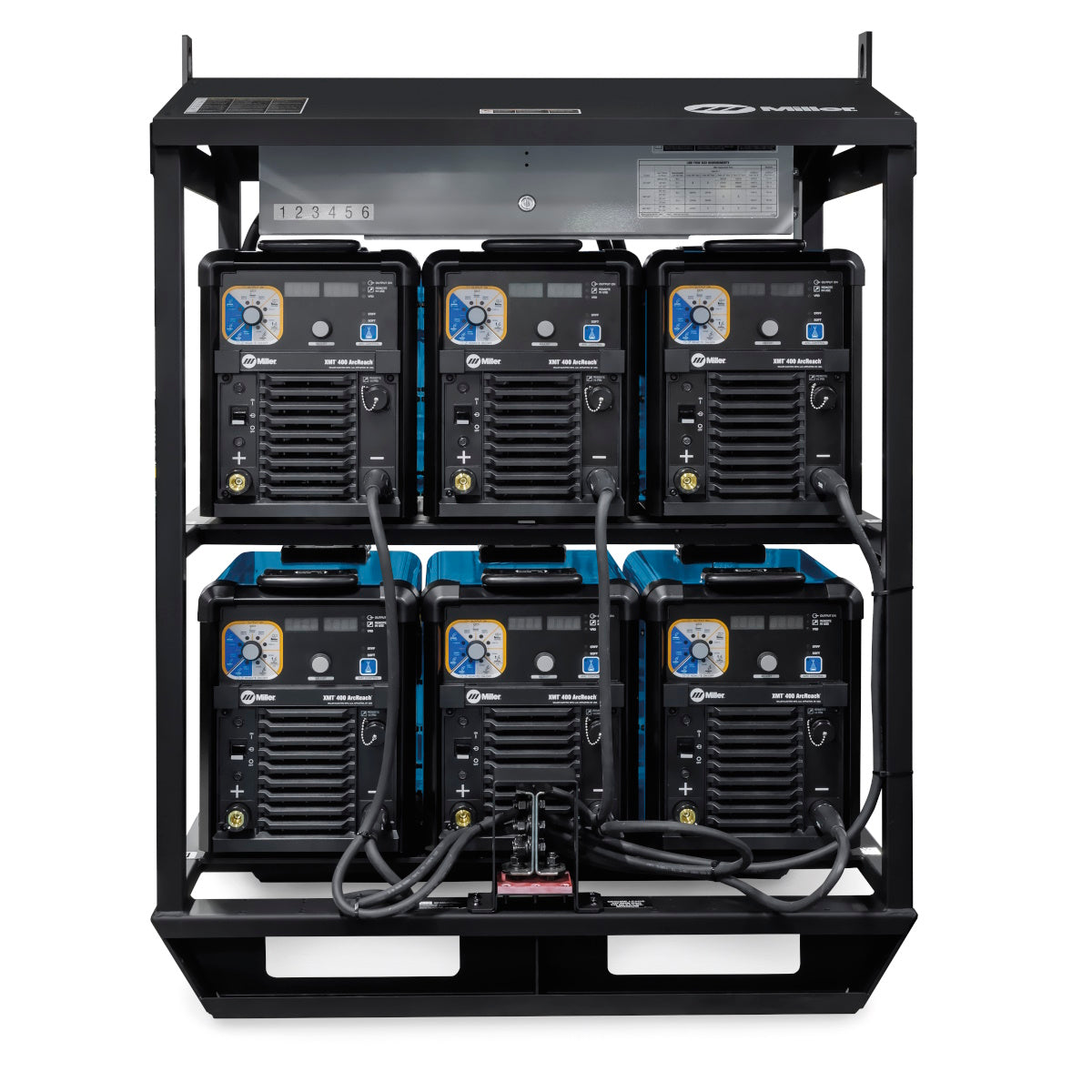

The 6-Pack Fused system includes 6 XMT units fused into 1 rack for larger industrial needs. All weld cables or ArcReach accessories sold separately.
XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Cable Length Compensation (CLC)
• Adaptive Hot Start
• RMD and Pulsed MIG
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
Cable Length Compensation automatically adjusts output at the power source to account for voltage drop due to long weld cables.
Regulated Metal Deposition and Pulsed MIG are fully supported, enabling operators to use these advanced processes in the field for faster, more efficient welds.
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
XMT Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 15-425A
• Duty Cycle: 60% @ 400A 3-Phase | 60% @ 300A 1-Phase
• Weight: 75 lbs
• Dims: 17.25" H x 12.75" W x 20.25" D
| MPN: | MIL907883 |
|---|---|
| UPC: | 715959714129 |
| Processes | Air Carbon Arc Cutting and Gouging (CAC-A)Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC) |
| Designed For | Shipbuilding Manufacturing Welding Education and Training Heavy Equipment Railcar Aerospace Construction and Fabrication |
| Amperage | 1- and 3-Phase |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Weight | 75 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
