Miller XMT 400 MIGRunner w/Intellx Basic Feeder (951971)
Download Product Spec Sheet
The XMT 400 with Intellx feeders offer scalable solutions with dedicated wire feeder options. The Intellx basic feeder with arc control means welders can produce better welds with minimal parameter adjustments.
These XMT 400 systems do not have ArcReach technology, rather they use ArcConnect cables so these systems are designed for fab shops and manufacturing. If you need an XMT 400 with ArcReach for field work using an ArcReach feeder, you can view those machines here.
XMT Features
• Auto-Line voltage hookup (208-575V)
• 1 or 3-Phase Capable
• Large, Dual Digital Meters
• Auto Remote Sense
• Dinse Style Weld Disconnects
• Adaptive Hot Start
• RMD and Pulsed MIG
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Process Selector Switch

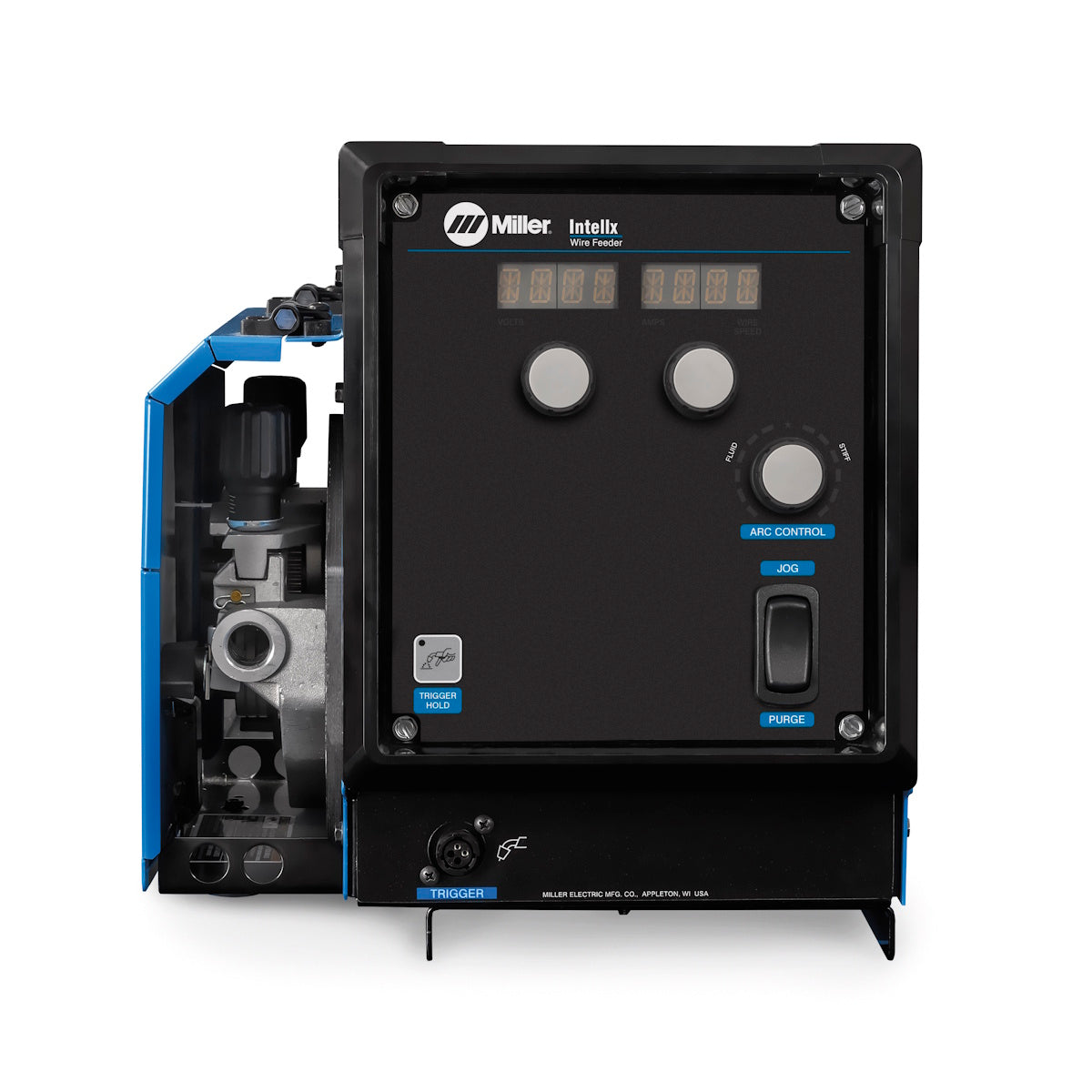

Intellx Basic Features
• Digital Meters
• Remote Voltage
• Wire Feed Speed
• Arc Control
• Trigger Hold
• Wire Jog and Purge
• Wire Feed Speed Feedback

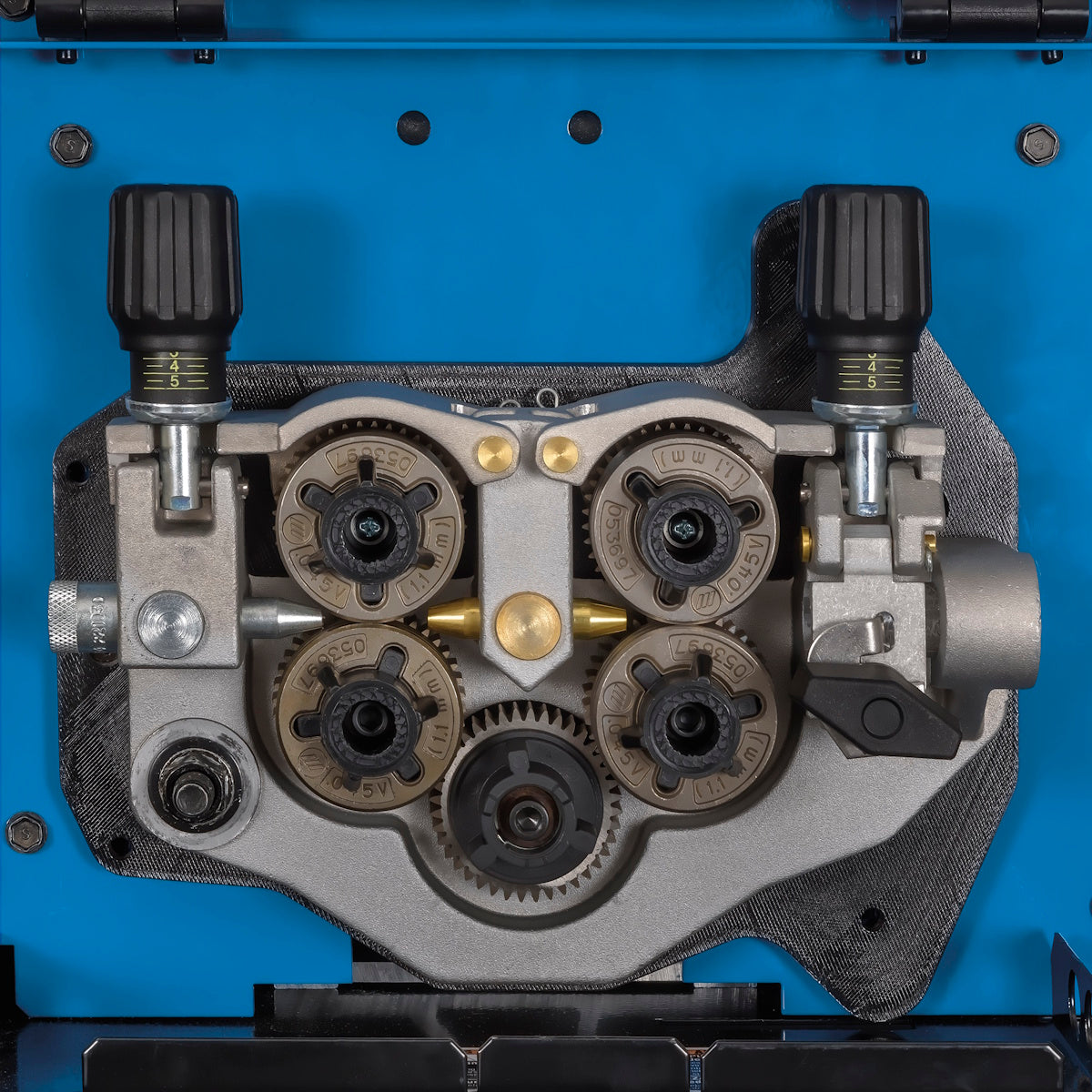

• Four Drive Rolls
• Rotatable Drive
• Up to 60lb Spool
XMT Quick Specs
• Voltage Range: 10-38V
• Amperage Range: 15-425A
• Duty Cycle: 60% @ 400A 3-Phase | 60% @ 300A 1-Phase
• Power Source Weight: 75 lbs
• Power Source Dims: 17.25" H x 12.75" W x 20.25" D

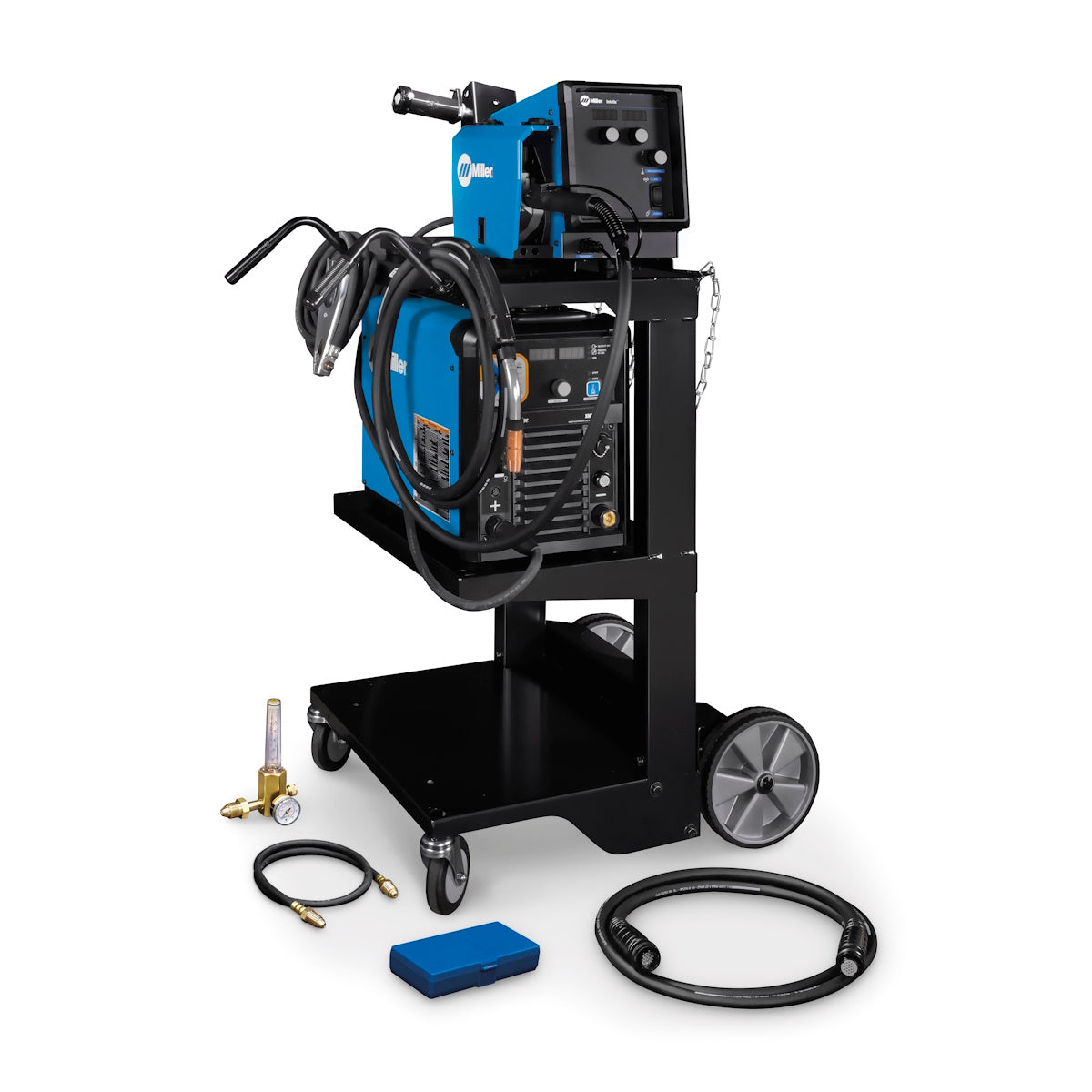

Includes

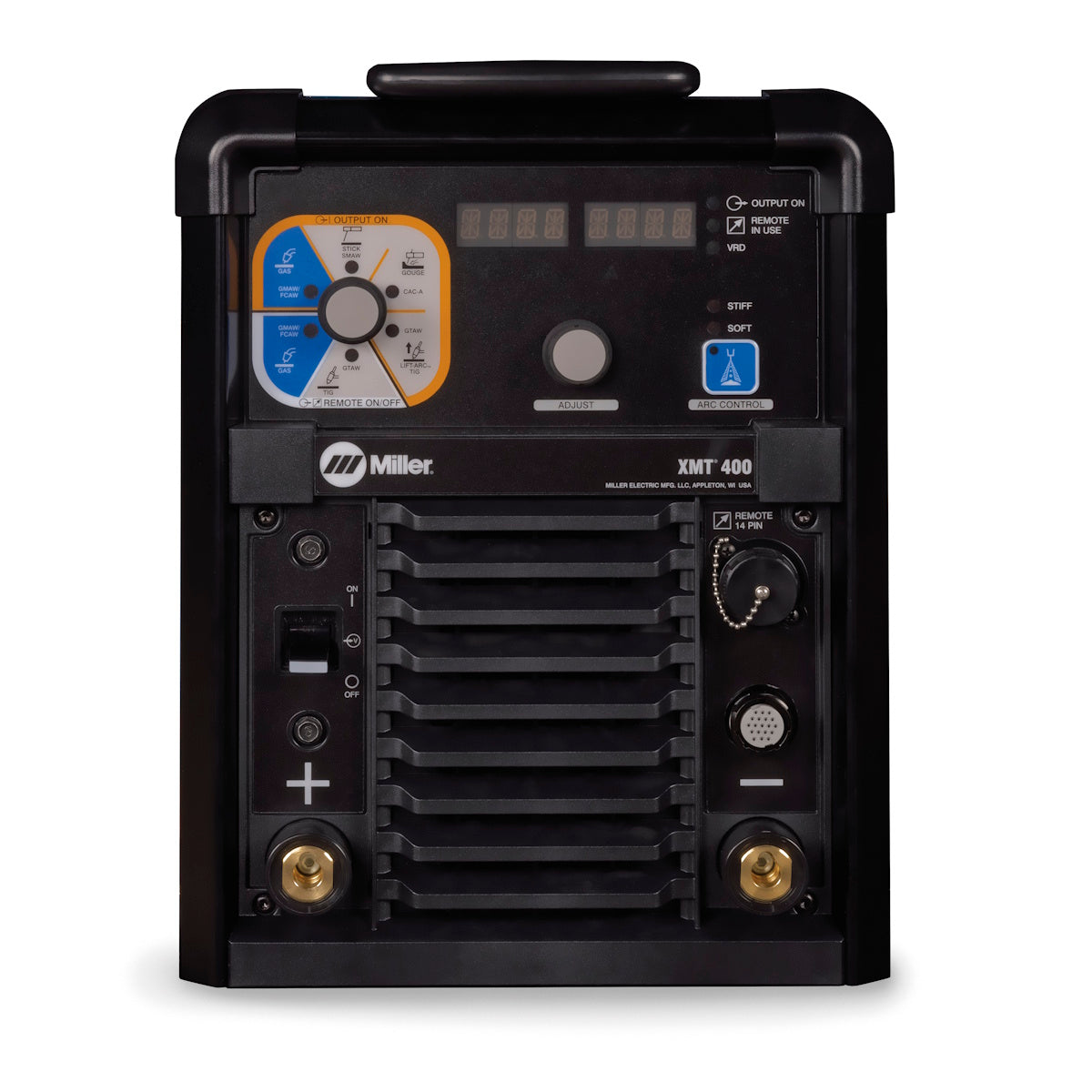

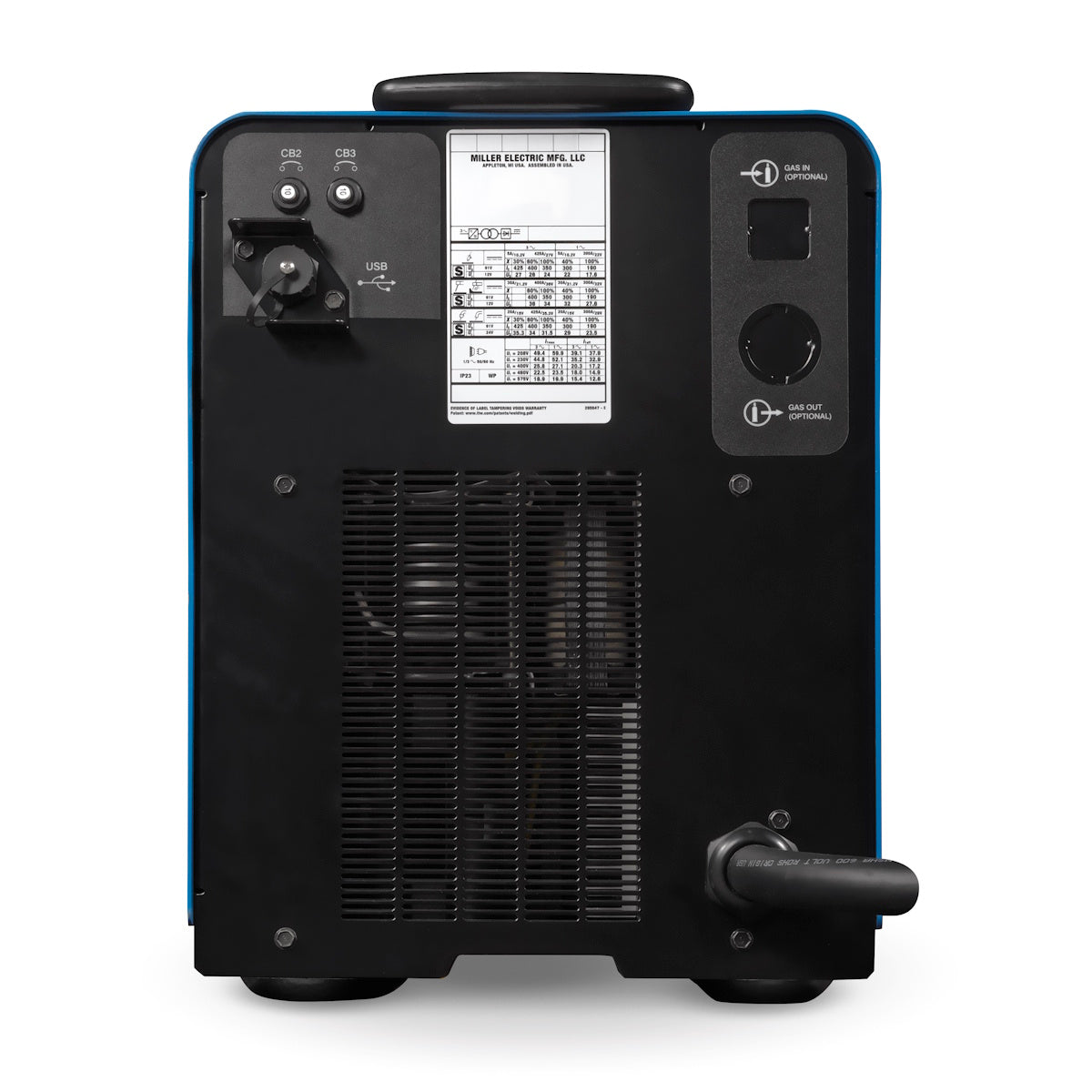

• XMT 400 with Dinse Connectors (907881)

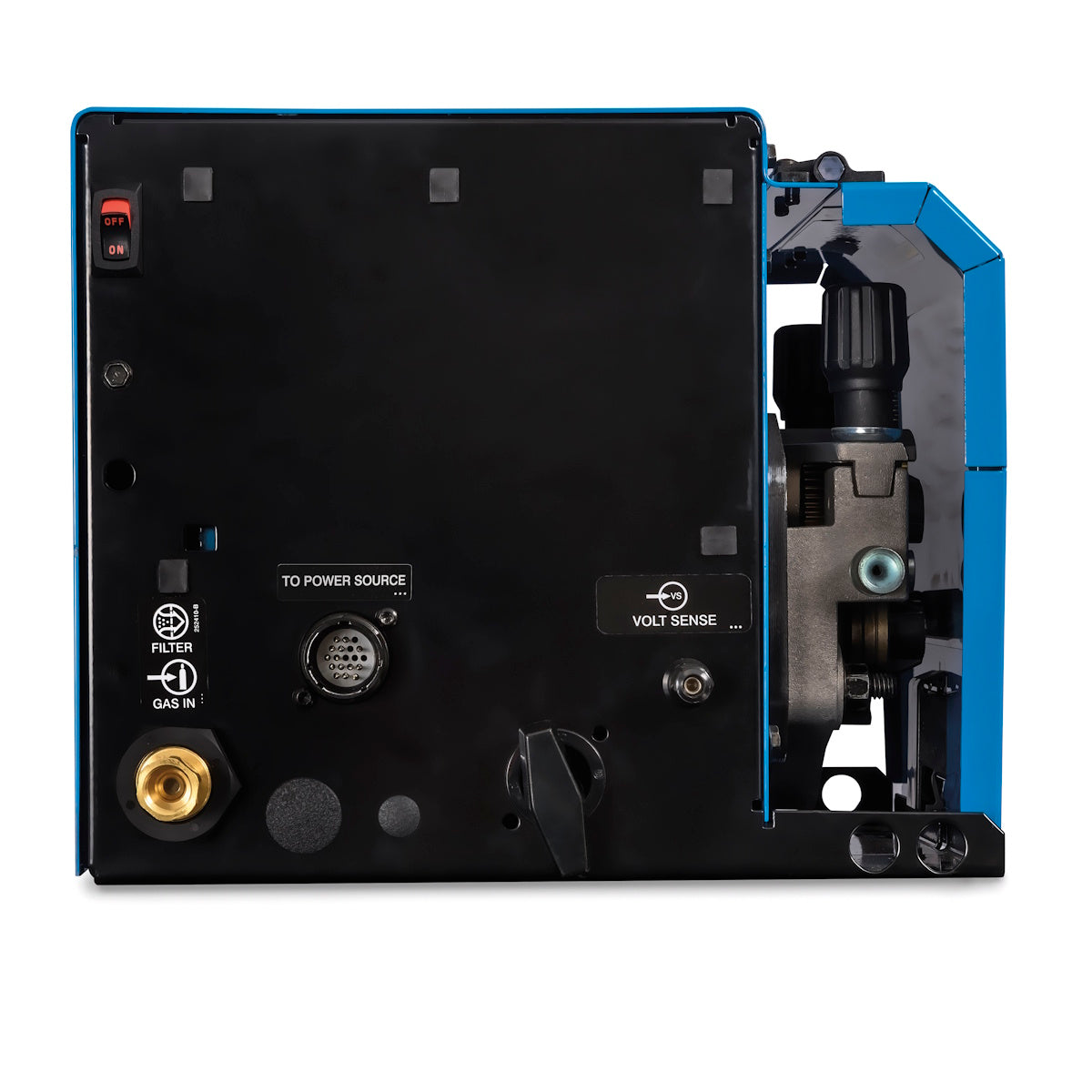

• Intellx Basic Single Feeder (951783001)
• 15 ft 400A Bernard MIG Gun
• MIGRunner Cart (195445)
• .035/.045 V-Groove Drive Rolls (227061)
• Regulator and 3 ft Gas Hose
• 10 ft 4/0 Work Cable and Clamp
• 5 ft ArcConnect Control Cable
• 6 ft 4/0 Weld Cable from Feeder to Power Source
| MPN: | MIL951971 |
|---|---|
| UPC: | 715959720427 |
| Processes | Air Carbon Arc Cutting and Gouging (CAC-A)Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC) |
| Designed For | Shipbuilding Manufacturing Welding Education and Training Heavy Equipment Railcar Aerospace Construction and Fabrication |
| Amperage | 1- and 3-Phase |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Weight | 75 lbs |
| Warranty | 3 Years Miller's True Blue Warranty |
