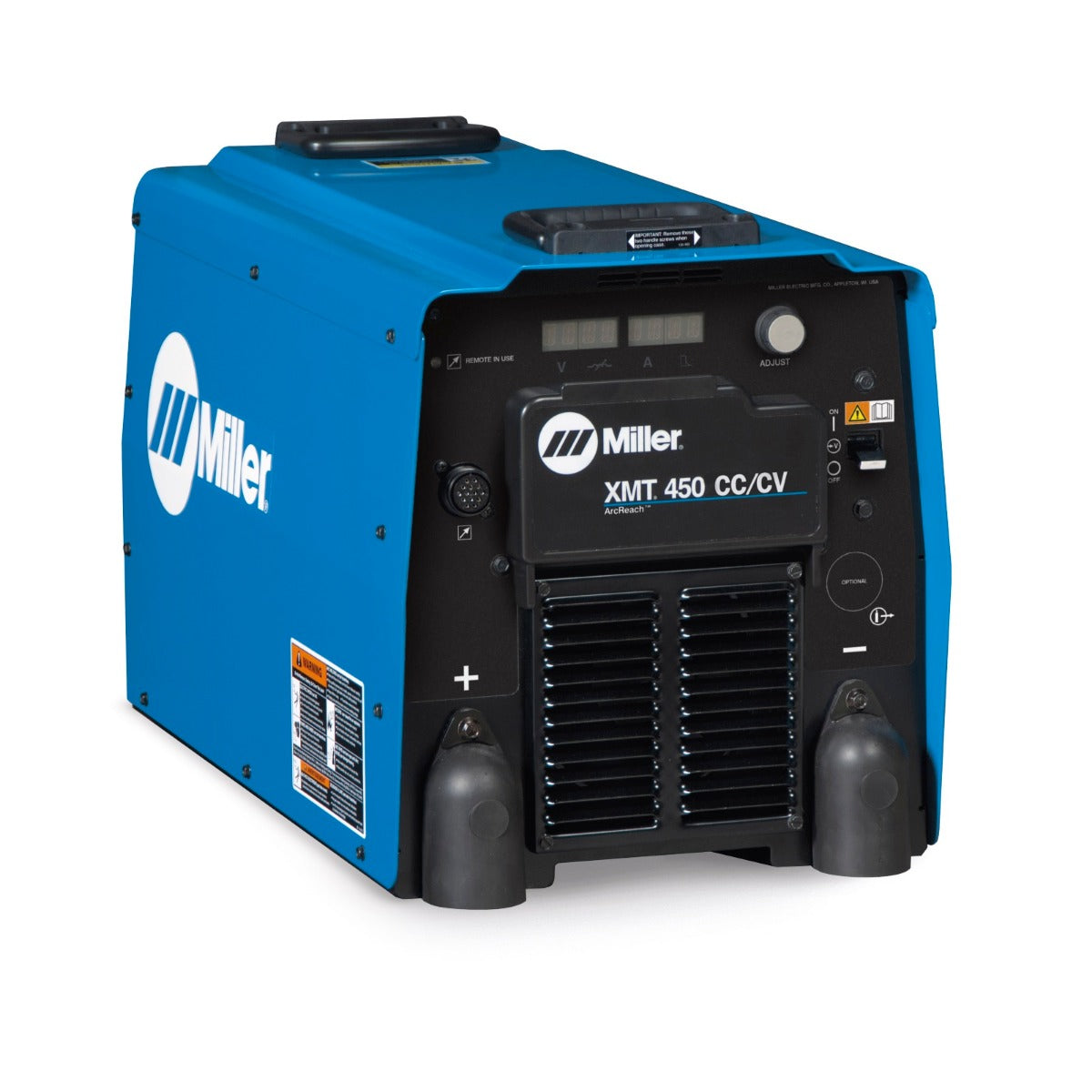

Miller XMT 450 CC/CV ArcReach Welder w/Aux Power (907481004)
Download Product Spec Sheet
The XMT multi-process welders offer portability, auto-line technology, and excellent arc performance. The XMT 450 CC/CV ArcReach models provide remote voltage control at the wire feeder without needing a control cable. The CC/CV models are the most popular due to the flexibility of a 14-pin connection for spool guns, feeders, and remote controls.

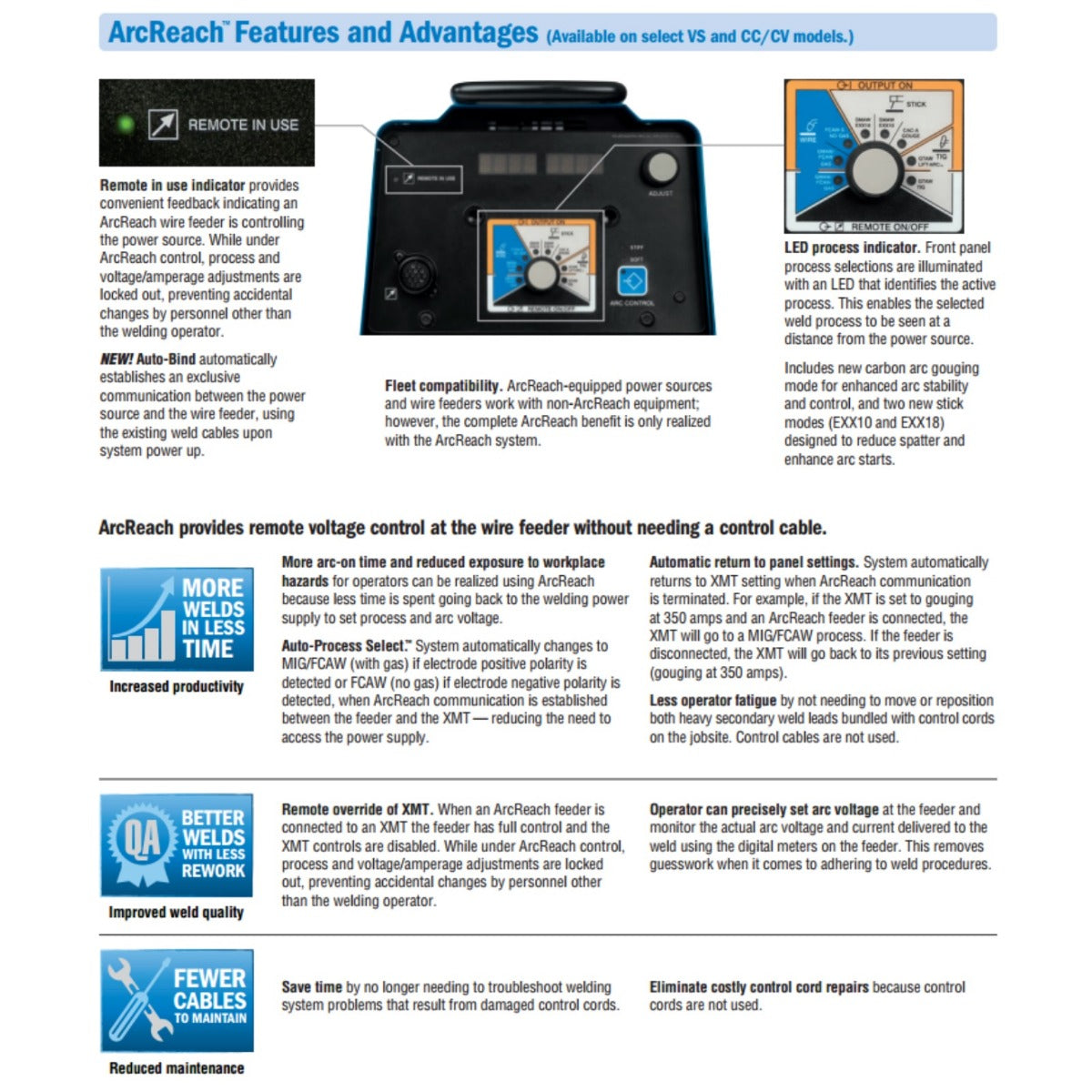

While under the ArcReach control, process and voltage/amperage adjustments are locked out, preventing accidental changes by personnel other than the welding operator. The ArcReach models feature an "auto-bind" technology which establishes an exclusive communication between the power source and the wire feeder, the system then automatically returns to XMT setting when ArcReach communication is terminated. ArcReach equipped power sources and wire feeders work with non-ArcReach equipment, however the complete ArcReach benefit is only realized with the ArcReach system.
The XMT 450 with Auxiliary Power offers a 115-volt receptacle on the back of the welder. This receptacle provides 10 amps of circuit-breaker protected power for coolant systems.
Features
• 230-460V, 3-Phase Only
• Adaptive Hot Start
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
The XMT 450 units come with 1/2" Stud connectors.
Quick Specs
• Input Voltage: 230 or 460V
• Output Voltage Range: 10-38V
• Amperage Range: 15-600A
• Duty Cycle: 100% @ 450A 3-Phase
• Weight: 122 lbs
• Dims: 17.25" H x 14.5" W x 27.125" D
While under the ArcReach control, process and voltage/amperage adjustments are locked out, preventing accidental changes by personnel other than the welding operator. The ArcReach models feature an "auto-bind" technology which establishes an exclusive communication between the power source and the wire feeder, the system then automatically returns to XMT setting when ArcReach communication is terminated. ArcReach equipped power sources and wire feeders work with non-ArcReach equipment, however the complete ArcReach benefit is only realized with the ArcReach system.
The XMT 450 with Auxiliary Power offers a 115-volt receptacle on the back of the welder. This receptacle provides 10 amps of circuit-breaker protected power for coolant systems.
Features
• 230-460V, 3-Phase Only
• Adaptive Hot Start
• Infinite Arc Control
• Lift-Arc
• Fan-on-Demand
• Lightweight, Aerospace-Grade Aluminum Case
• Large, Dual Digital Meters
• Process Selector Switch
The Auto Remote Sense enables the unit to automatically use remote control if connected to remote control receptacle.
The XMT 450 units come with 1/2" Stud connectors.
Quick Specs
• Input Voltage: 230 or 460V
• Output Voltage Range: 10-38V
• Amperage Range: 15-600A
• Duty Cycle: 100% @ 450A 3-Phase
• Weight: 122 lbs
• Dims: 17.25" H x 14.5" W x 27.125" D
| MPN: | MIL907481004 |
|---|---|
| UPC: | 715959633765 |
